51 microcontroller minimum system

Overview

Project Inspiration:

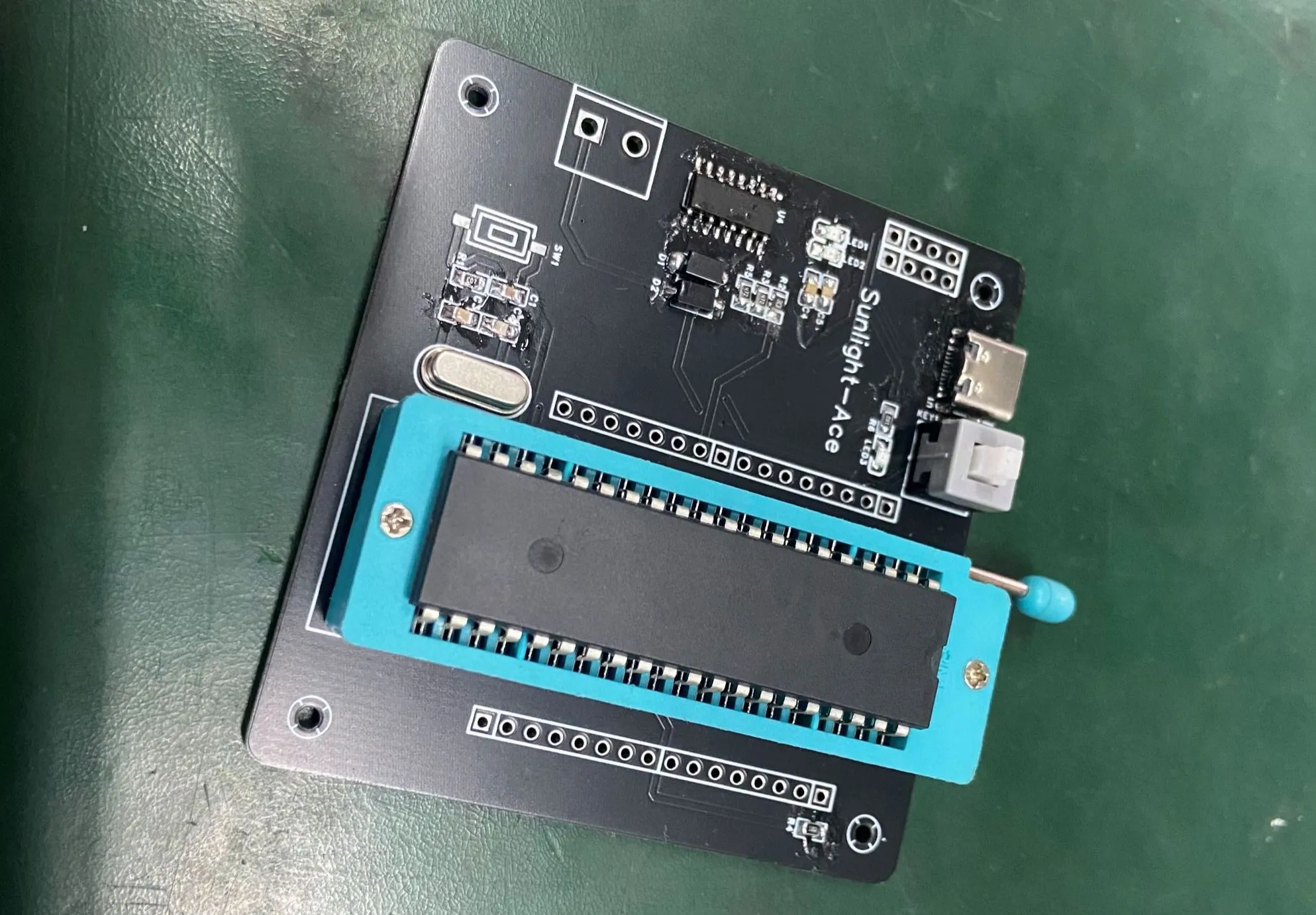

I had been using a Puzhong development board to learn microcontrollers, but after a while, I felt that some functions were not comprehensive enough. Therefore, I designed my own microcontroller minimum system board and then connected external circuitry for use.
The circuit design
is simple in principle, using a CH340C to communicate with the microcontroller, and downloading requires only a T-Pic cable.
Replicating the project
as a whole is not difficult. However, care must be taken when soldering the T-Pic; because the mounting holes for the T-Pic are relatively small, it's crucial to ensure the T-Pic is completely secured during soldering, otherwise, the T-Pic port might become dislodged when connecting it later.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
