LCSC Voltmeter and Ammeter Training Camp

Overview

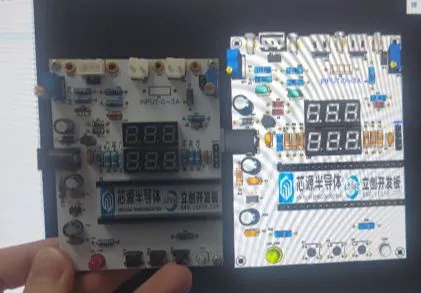

This is the first PCB board I've built since I started learning embedded hardware. Experiencing LCSC's PCB manufacturing and color silkscreen printing services is fantastic!

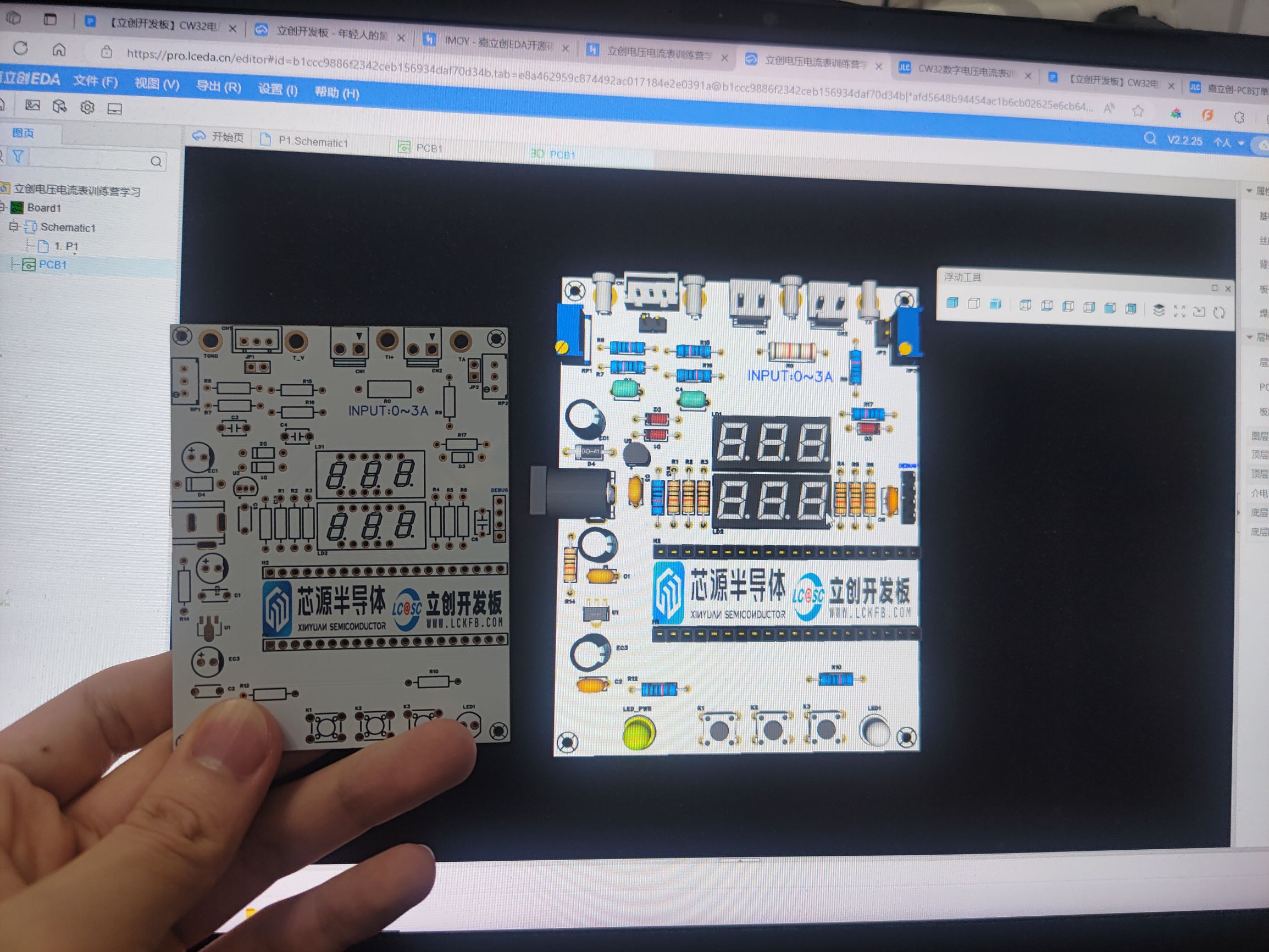

On the hardware side, this is my first time trying to build a project from scratch, starting with drawing the schematic. There are still many issues with the PCB design. On

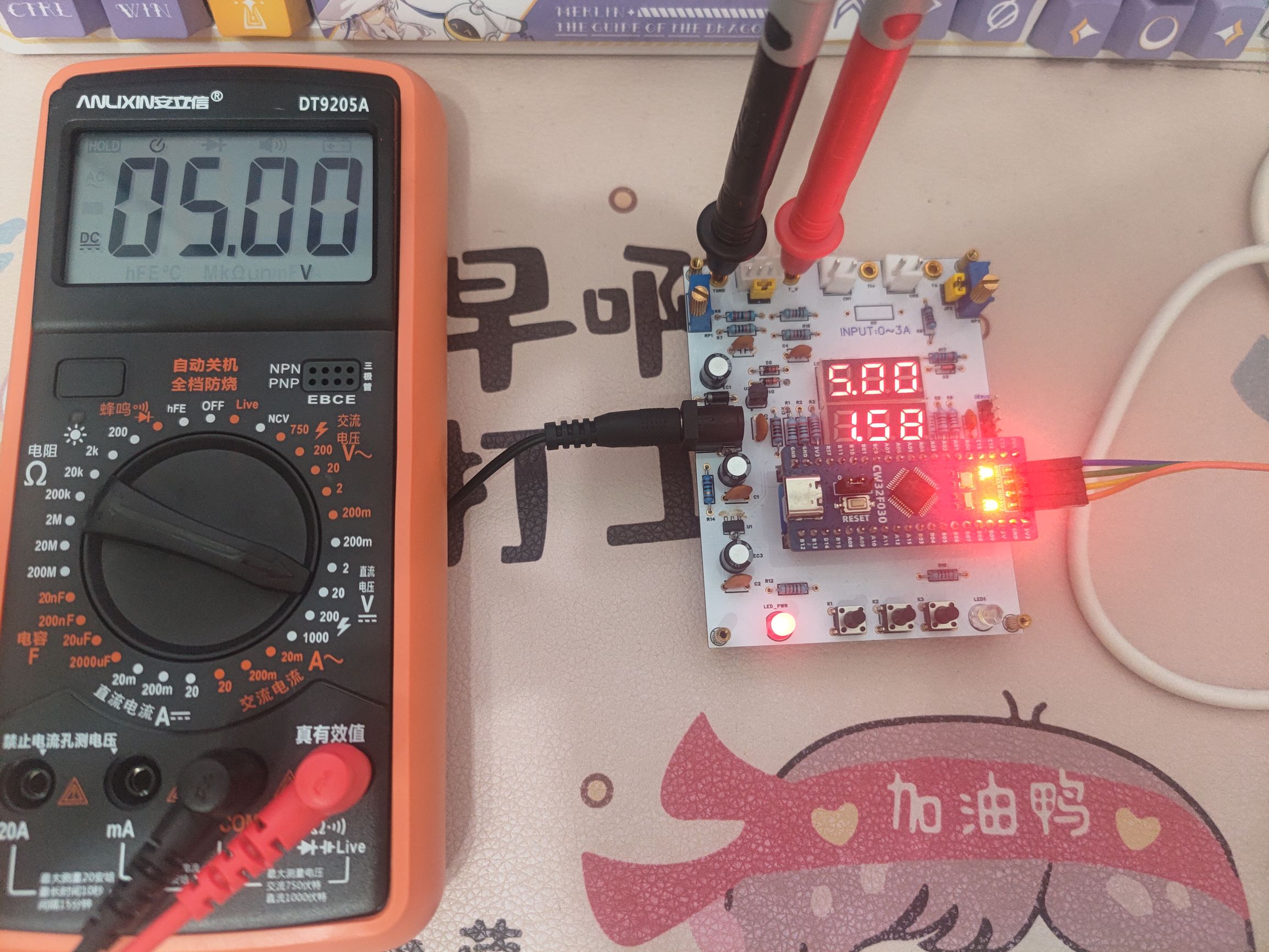

the software side, besides displaying the acquired voltage and current values, it also has a software calibration function. The above demonstration shows the voltage calibration function. (Since my main goal is to learn hardware knowledge, the software is written relatively simply, focusing on achieving the required functionality.)
