STC32G12K128-PDIP40-Board

Overview

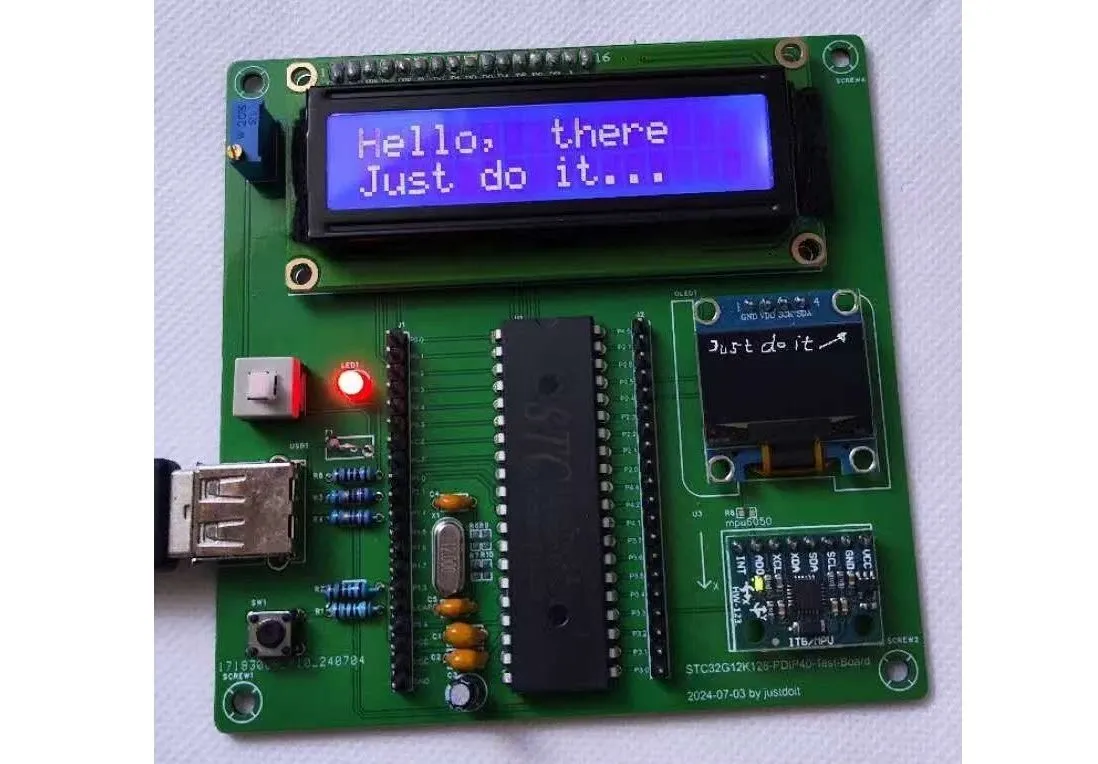

The STC32G12K128-PDIP40 test board
is a 10cm x 10cm plug-in board that supports 1602 diodes, a 4-pin 0.96-inch OLED display, and an MPU6050 six-axis accelerometer/gyroscope. It features 0-ohm resistors for connecting pins P1.6 and P1.7, and supports either an internal clock or an external 12MHz crystal oscillator for precise timing. All
pins of the STC32G12K128 chip are brought out via headers for easy expansion and DuPont wire connections. This open-source project aims to provide some help or inspiration. --JustDoIt, 2024-07
