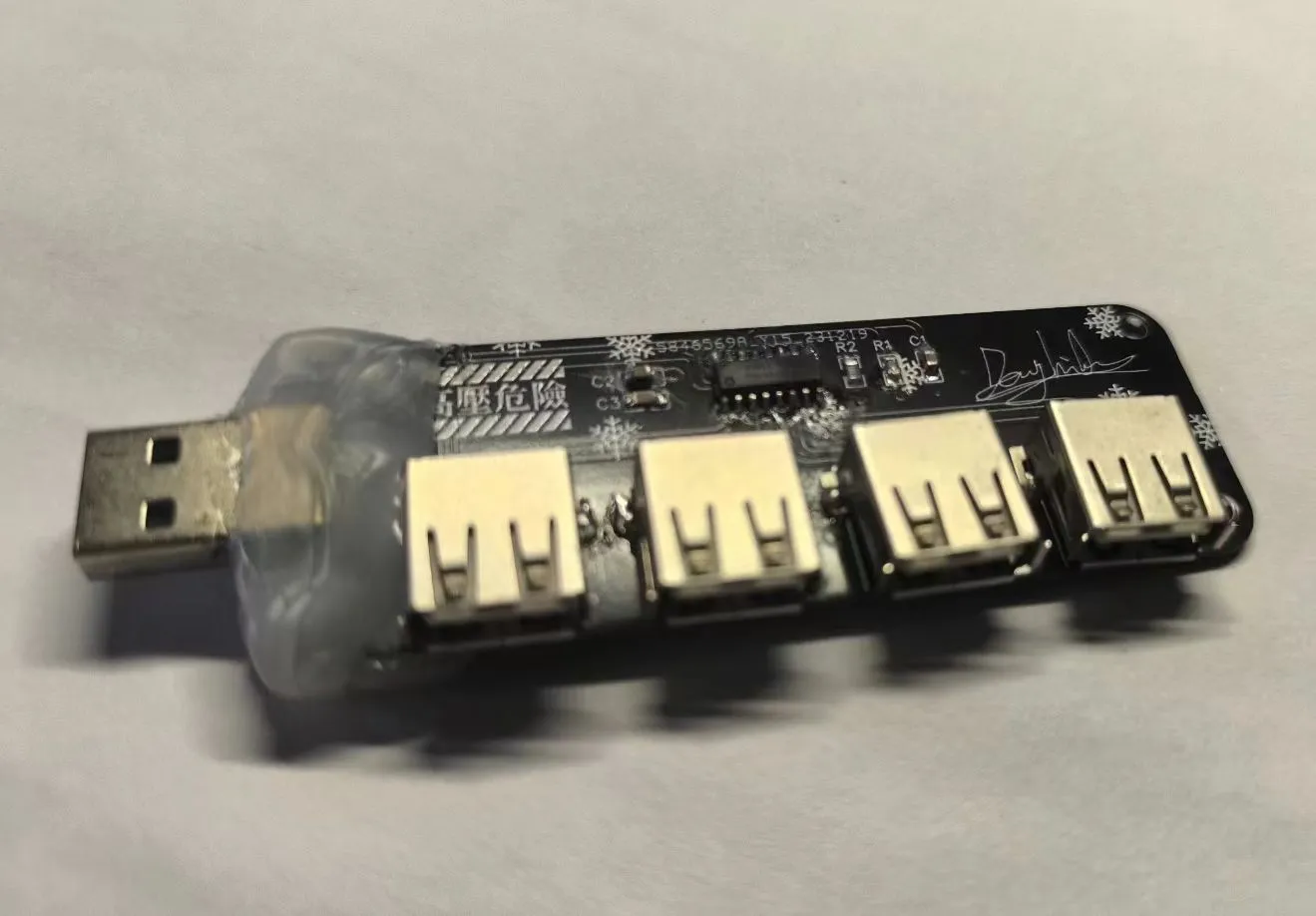

Low-cost expansion based on HS8836A

Overview

The HS8836A is a high-speed USB 2.0 hub controller chip with an embedded RISC-like processor for operating internal control/status registers and responding to commands from the USB host. The HS8836A is designed to minimize external components and BOM costs, and its optimized pin layout supports single-sided and cross-line-free layouts, effectively reducing production costs.
This hub is fully compatible with the USB 2.0 standard and backward compatible with the USB 1.1 standard.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
