Direct power connection night light design

Overview

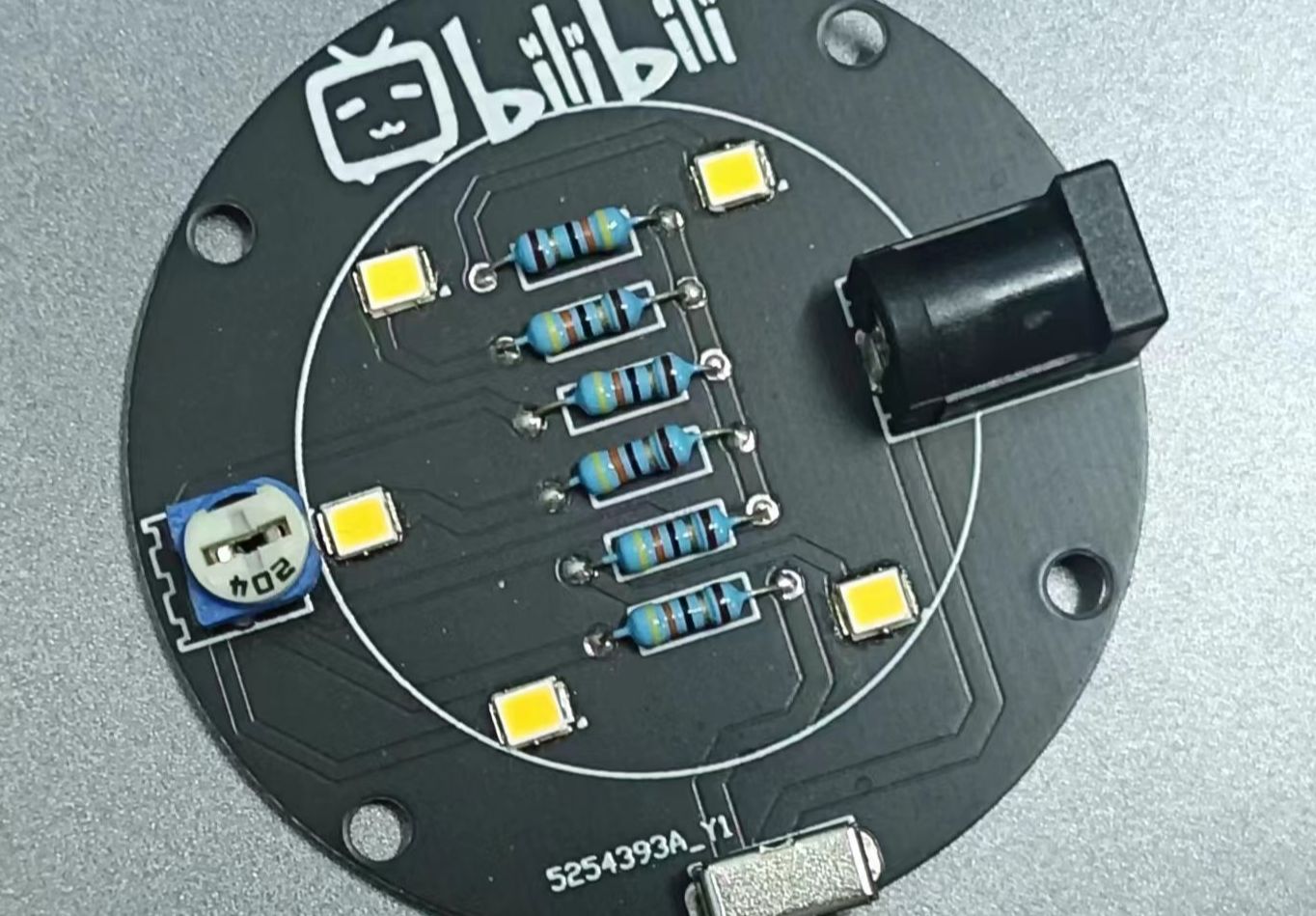

The night light connects directly to the power supply via a power cord, ensuring a stable power supply. It uses LEDs (light-emitting diodes) as the light source, which are highly efficient, energy-saving, and have a long lifespan. LEDs provide soft light, suitable for nighttime use. The LEDs are connected to the DC power supply circuit, and a resistor limits the current, ensuring normal operation and extending the LED's lifespan. A manual control switch is included, allowing users to easily turn the night light on or off as needed.
