Open source prj: SC7A20TR - Three-axis gyroscope module

Overview

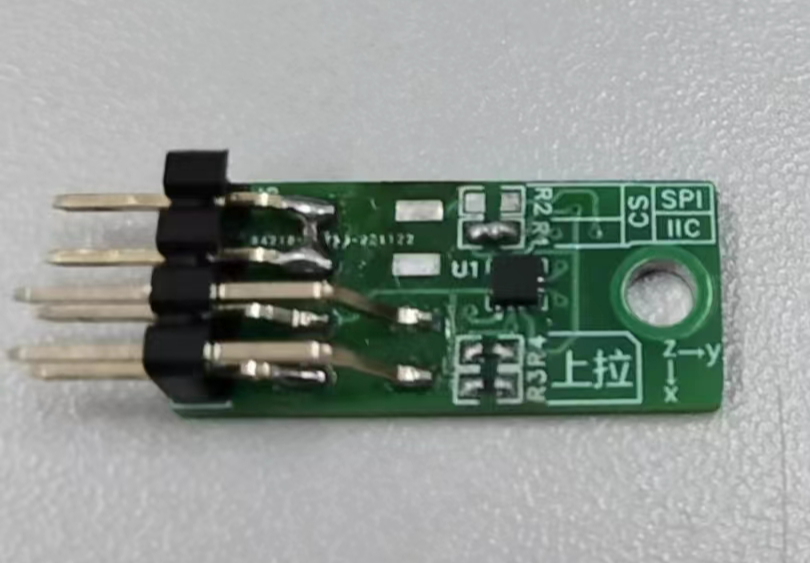

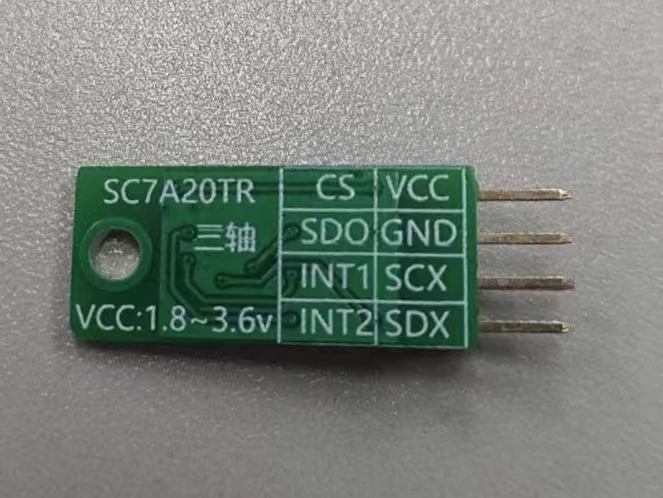

This is a 12-bit, 3-axis accelerometer, powered by 3.3V, using IIC/SPI communication. It is suitable for small-size, low-cost motion detection applications, such as sleep/wake-up detection and low-precision motion detection. It supports interrupt triggering.

The module has been verified by the microcontroller driver and is functioning normally.
