I. Design Considerations
: 1. Obtain the specific dimensions of the battery pins;
2. The resistance value for the balancing current should not be lower than 100Ω;
3. There is a secondary protection circuit between the battery's C+ (positive charging terminal) and B+ (positive battery pack terminal). If no voltage can be measured between C+ and B- (negative battery pack terminal) after replacing the battery cells, you can short-circuit the two 0R resistors on the back of the charging board to allow the charging board to directly charge the battery. However, this will forgo the use of the secondary protection circuit.
II. Other:

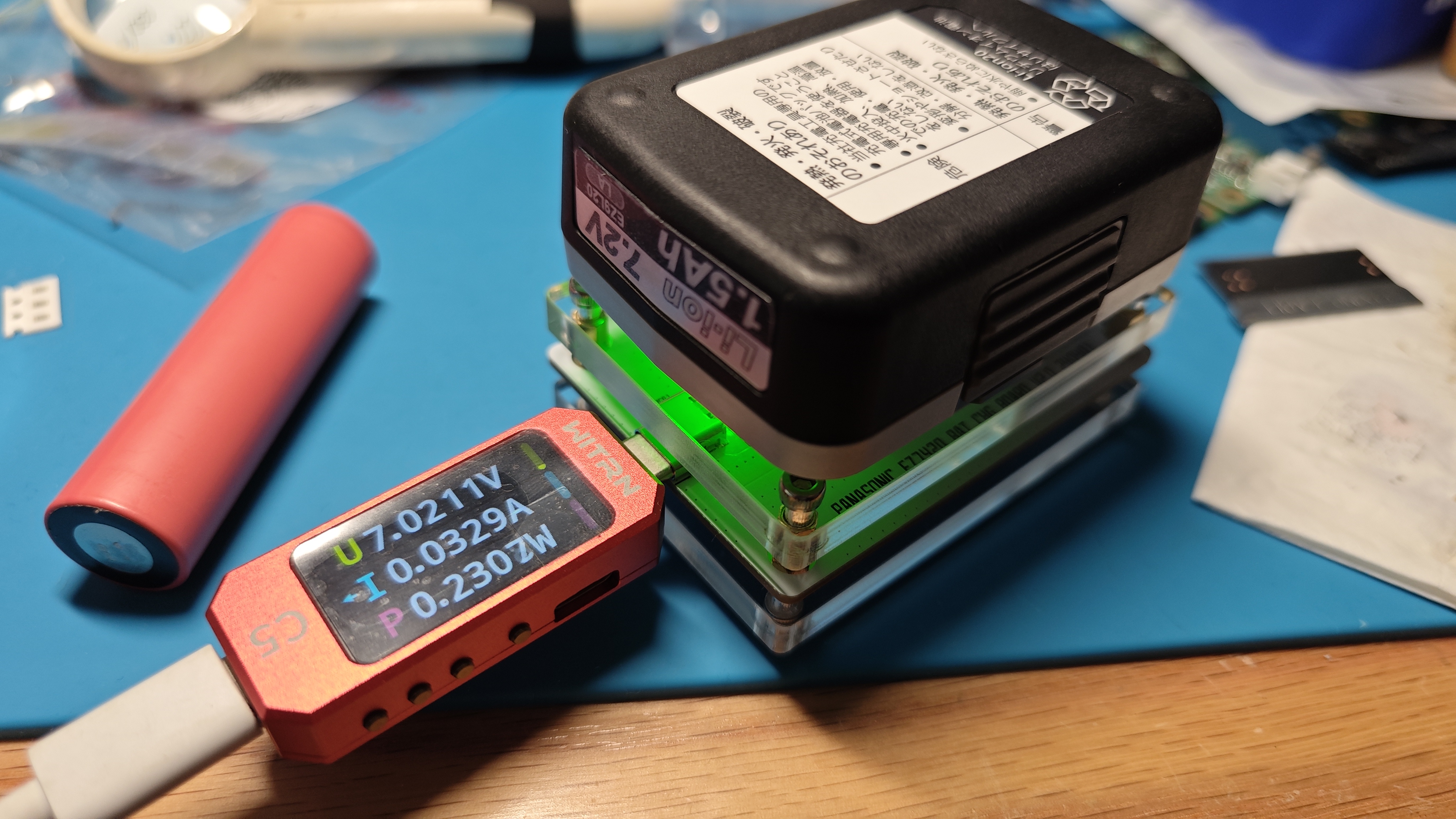

1. Since the parameters of the NTC resistor inside the original battery are unknown, the NTC circuit is not connected to the battery. The original charging is 2.5A, and this charging board has a maximum of 1.5A, which is very small for a power battery;
2. The width of the battery insert should not exceed 5mm. Please refer to the attached BOM. If LCSC does not have the product in stock, you can buy it on Taobao.

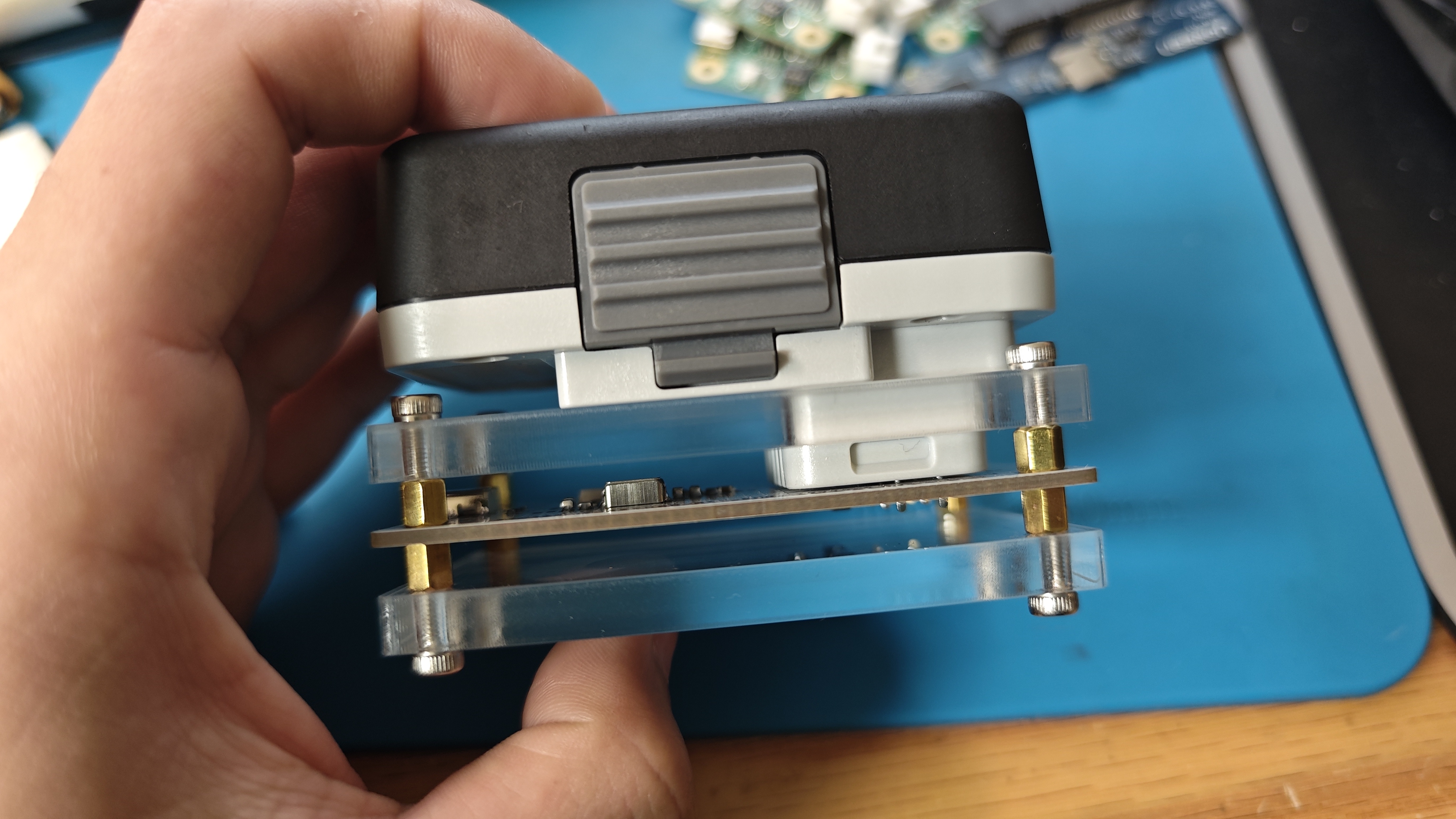

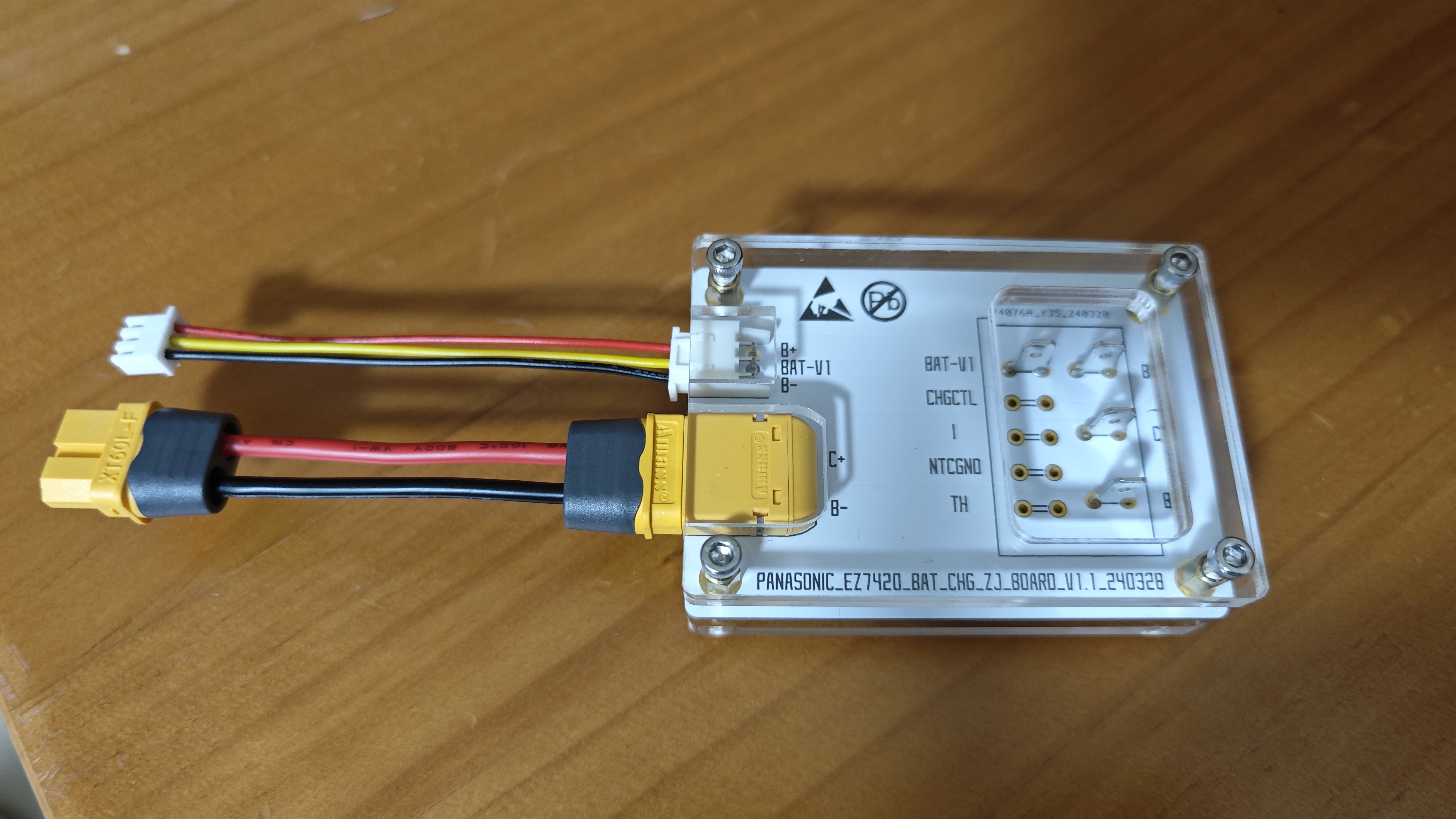

3. Another XH2.54+XT60 interface has been designed for use with a balance charger. In this case, the acrylic top cover needs to be replaced with a 2.8mm one.
4. When charging, try to use a charger with QC protocol.

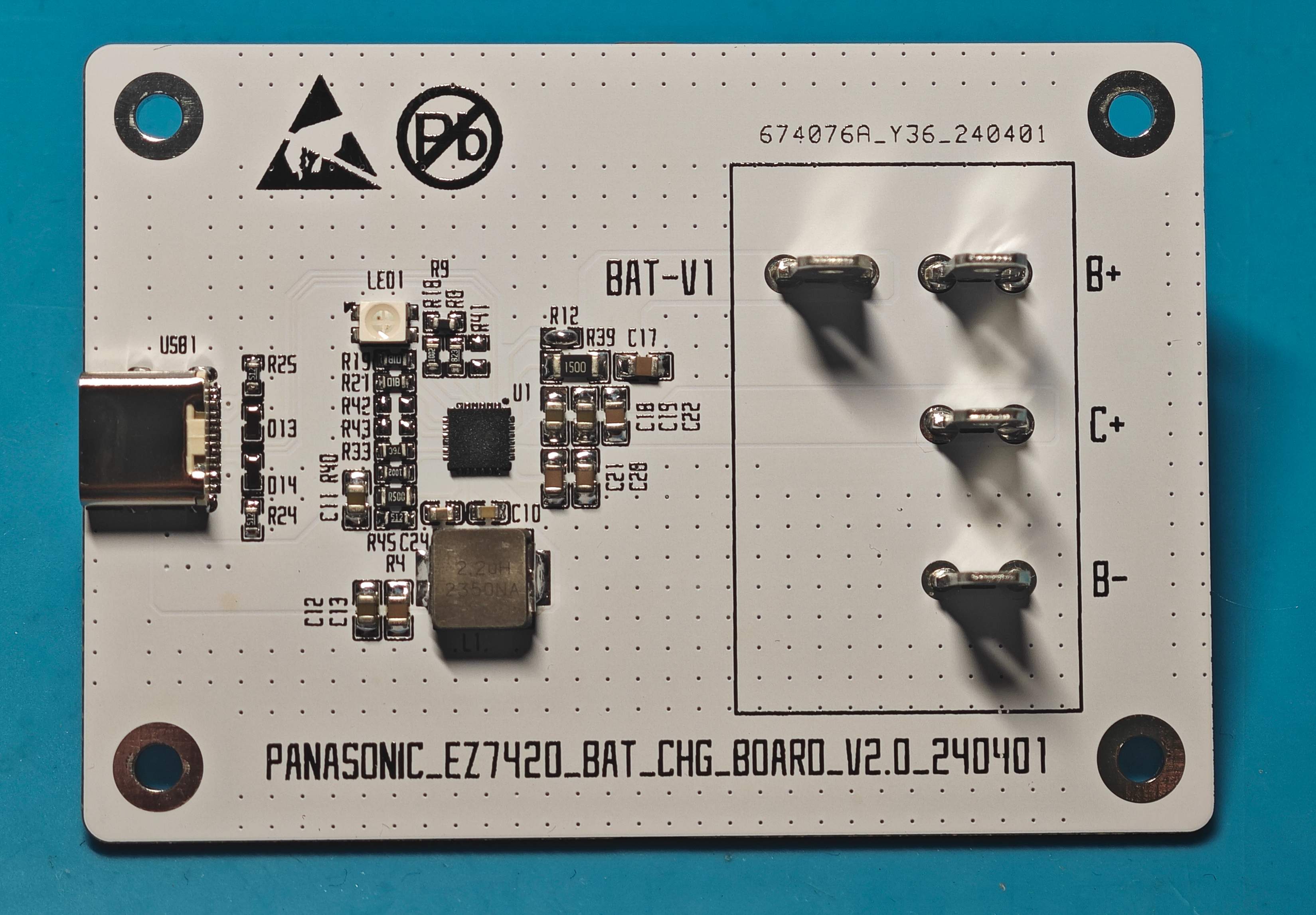

BOM_Panasonic EZ7420 Battery Charging Board_IP2326.xlsx
Gerber_Panasonic EZ7420 Battery Charging Board_IP2326.zip
Charger top and bottom cover - Acrylic - 6mm.dxf
Assembly BOM_Panasonic EZ7420 Battery Charging Board_IP2326.xlsx
Charger top and bottom covers - Acrylic - 2.8mm.dxf
PDF_Panasonic EZ7420-EZ7520 Battery Charging Board - Ingenic IP2326 Version.zip
Altium_Panasonic EZ7420_EZ7520 Battery Charging Board - Ingenic IP2326 Version.zip
PADS_Panasonic EZ7420_EZ7520 Battery Charging Board - Ingenic IP2326 Version.zip
BOM_Panasonic EZ7420_EZ7520 Battery Charging Board - Ingenic IP2326 Version.xlsx
95154
GAMEBOY MBC3 LDO-SRAM Memory Card
GAMEBOY MBC3 LDO-SRAM Memory Card
Thanks to two contributors for their articles on the GAMEBOY MBC3 LDO-SRAM memory card
:
【Physically Verified】GameBoy/ADVANCE Card Reader - JLCPCB EDA Open Source Hardware Platform (oshwhub.com)
GitHub - MouseBiteLabs/Game-Boy-MBC3-Cartridge: A flashable MBC3-based cartridge for the Game Boy.
I drew it myself and optimized the parts by adding labels.
Game compatibility depends on individual play; I can't guarantee it will work for all.
I hope someone can draw a better one; I'll treat you to lard!
The original author's drawing is very beautiful, but unfortunately, I can't support LCPCB, and he uses a 5V chip.
Main text (Muggle tutorial):
MBC3 is compatible with MBC1+MBC2+MBC3 games; some MBC1 games are not compatible, and
the prototype is based on a 0.8mm thickness.
A: If you don't use a battery or SRAM, short-circuit SJ1+2 and SJ41+2. You can burn some MBC1s that don't need to be saved.
B: Using SRAM, there are two cases (battery saving is required; removing the battery will retain memory for 3 minutes):
1. 32k (8-bit) SRAM, requires shorting SJ51+2 and SJ61+2.
2. 256k (8-bit) SRAM, requires shorting SJ52+3 and SJ62+3.
C: There are 3 types of MBC3 chips (MBC3, MBC3A, MBC3B), and the shorting locations differ:
1. MBC3: Short SJ31+2, requires soldering Q1.
2. MBC3A, MBC3B: Short SJ32+3, does not require soldering Q1.
Below is the original author's nice diagram and my simpler one (just to get the gist).
D: Unused components C1, C4, R8. Short RESET and 3V3. Use a standard tubular crystal oscillator, which can be directly removed from the original cartridge; BOM packages are not recommended.
E: This card cannot be recognized by the programmer when burned via the AD port.
Solutions: 1. Directly modify the fc_DMG_29LV160DB.TXT file (this will allow direct recognition). 2. Save a different modified file, but you will need to manually select the flashcart each time you burn the card.
Two files are provided below; choose whichever you need. Folder path: FlashGBXconfig
fc_DMG_29LV160DB.txt
fc_DMG_29LV160DB-AD.txt
PDF_GAMEBOY MBC3 LDO-SRAM Memory Card.zip
Altium_GAMEBOY MBC3 LDO-SRAM memory card.zip
PADS_GAMEBOY MBC3 LDO-SRAM Memory Card.zip
BOM_GAMEBOY MBC3 LDO-SRAM Memory Card.xlsx
95155
"Fa Fa" LED, a beautiful lantern
Low-cost resin "fafa" touch lamp
This is a super simple circuit for a beautiful flower-shaped lamp , and an ultra-low-cost touch-controlled lamp.
Spring is almost over, so let's make a flower lamp to catch the last days of spring!
The circuit is very simple, using the SGL8022W chip for stepless touch control. Of course, you can also use the JL7022WE chip, but the JL7022WE only has three dimming levels and cannot provide stepless dimming, but it's cheaper. The circuit diagrams for both chips are interchangeable.
Important Note:
Although the circuit is simple, the construction process is relatively difficult (resin application is really, really hard). The lamp is made by sealing dried flowers in resin, but as a beginner, I made many mistakes, directly causing the lamp to be unusable. I only succeeded on the third try.
Here, I'll share my experience to help you avoid these pitfalls.
1. The PCB board should be tightly attached to the mold. If the soldered TYPE_C pins are pressing against the mold, you can cut an opening in the mold to facilitate placing the PCB board.
2. Because dried flowers are very light, the glue should be applied in layers; otherwise, the flowers will all float.
3. Try to change the TYPE_C to 16P. 2P connectors have gaps at the interface, and glue will flow in during application. The solution is to insert a male connector before applying glue, but this will make it difficult to remove (sob sob).
These are the main points to note. Below are the glue and other connecting
resin (100g). First order ¥1.7 with free shipping
[Taobao] https://m.tb.cn/h.g0oz7ypahFmwCkc?tk=hYbfWrptBiz MF1643 "New Love High Transparency AB Glue Crystal Epoxy Resin DIY Material Kit Set Quick-Drying Specimen Mold Epoxy Resin" Click the link to open directly or search on Taobao.
100g is enough, you can also prepare more
molds (8cm*2cm*2cm). ¥6 including shipping.
[Taobao] https://m.tb.cn/h.g0oz7ypahFmwCkc?tk=hYbfWrptBiz MF1643 "New Love High Transparency AB Glue Crystal Epoxy Resin DIY Material Kit Set Quick-Drying Specimen Mold Epoxy Resin" Click the link to open directly or search on Taobao.
Touch Chip (JL7022WE) ¥3.99 with free shipping.
[Taobao] https://m.tb.cn/h.g0LZx5RXa9QgnbJ?tk=AEKlWrpEl64 CZ3458 "Three-Level Dimming/Stepless Adjustment Touch JL7022WE SGL8022 Solution Chip Touch Solution Development" Click the link to open directly or search on Taobao.
LED ¥2.78 with free shipping
[Taobao] https://m.tb.cn/h.g0L1aiy1zLnLacq?tk=OmpcWrpD3r9CZ0001 "0.2W 2835 SMD LED beads, 3528 cool white/warm white light emitting diodes, 20-22LM (50 pieces)" Click the link to open directly or search on Taobao.
You can refer to the BOM (Bill of Materials) table to purchase LED and other electronic components.
PDF_“Fa Fa” LED, Beautiful Lanterns.zip
Altium_“FaFa”LED, beautiful lanterns.zip
PADS_“Fa Fa” LED, Beautiful Lanterns.zip
BOM_“FaFa” LED, Beautiful Lantern.xlsx
95156
STM32 minimum system board (including breathing light test)
The STM32 minimum system board has external pins brought out for ease of use. It can be programmed using STlink and can realize button reset and breathing light test.

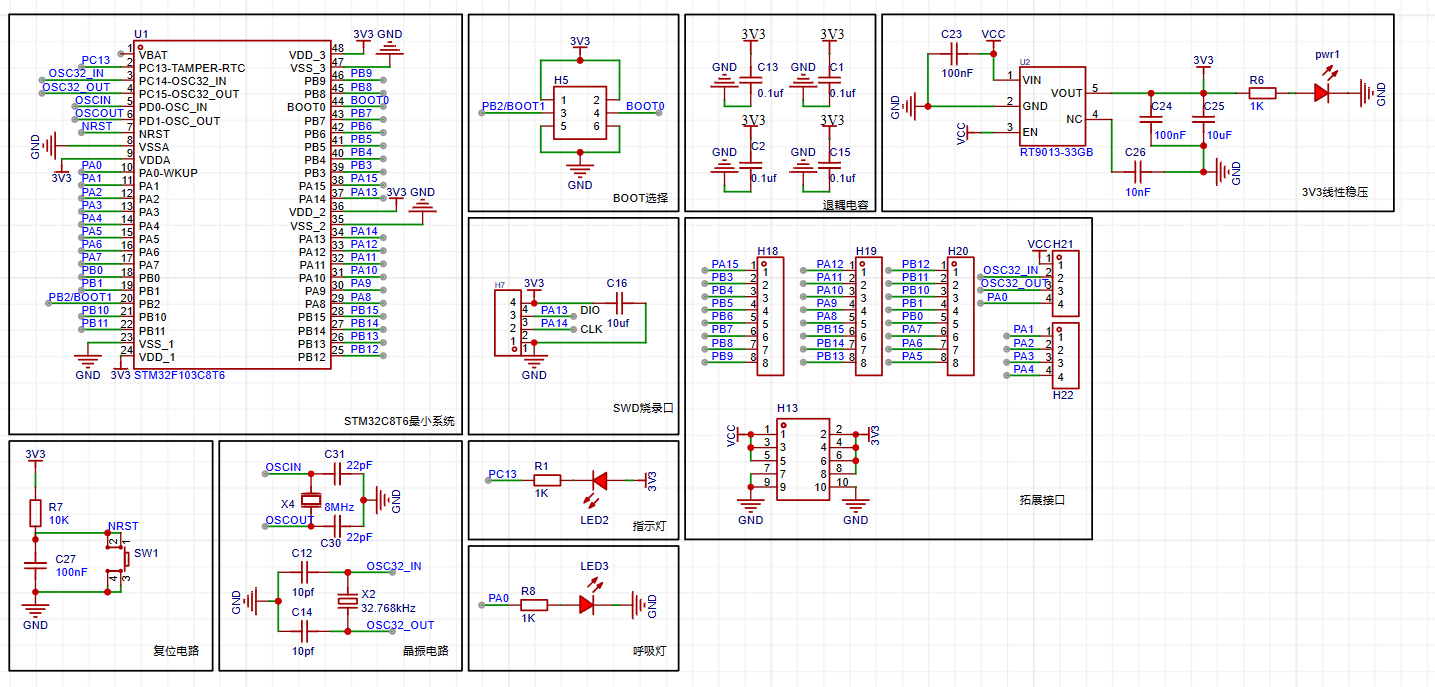

Schematic diagram:

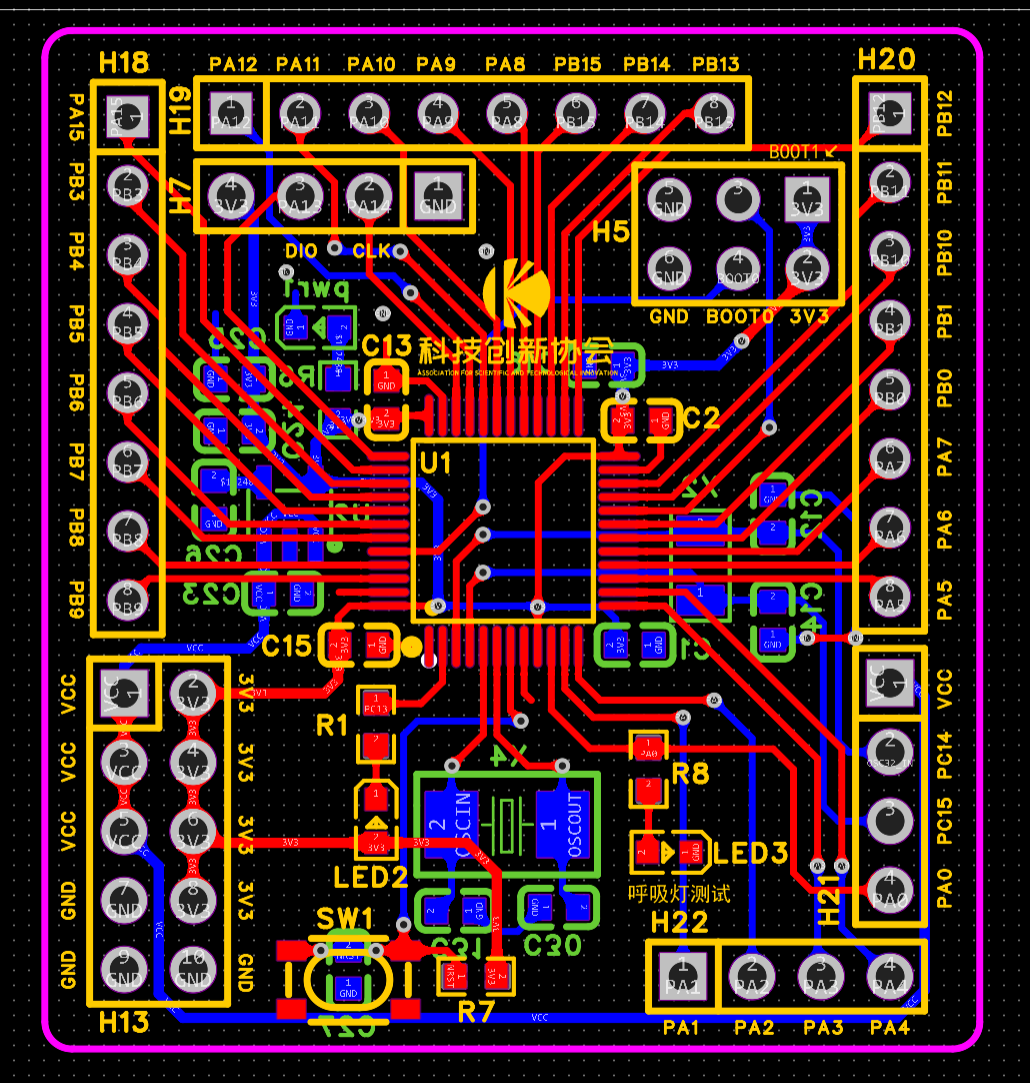

PCB layout:
PDF_STM32 Minimum System Board (including breathing light test).zip
Altium_STM32 Minimum System Board (including breathing light test).zip
PADS_STM32 Minimum System Board (including breathing light test).zip
BOM_STM32 Minimum System Board (including breathing light test).xlsx
