HT45F0074A Half-bridge Induction Cooker

Overview

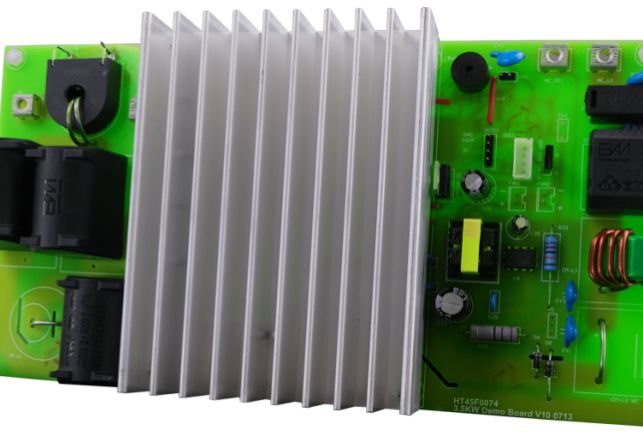

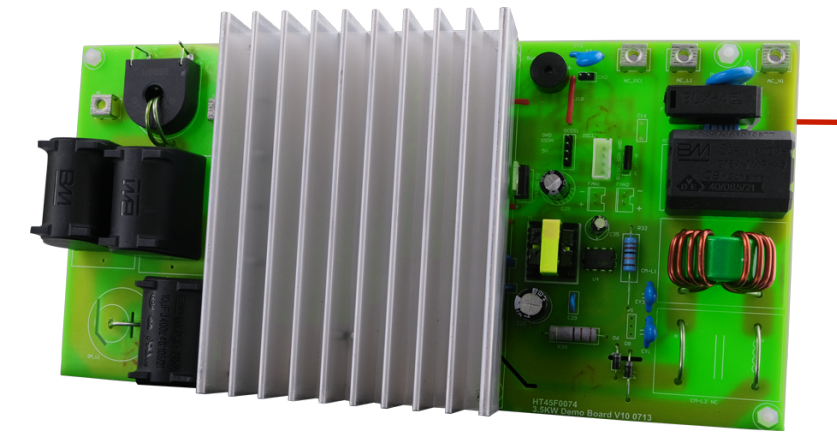

My induction cooker at home frequently blows its tubes, burning out a bunch of components. So I thought I'd experiment with a half-bridge design. After researching, I found Holtek's solution to be simple, clear, and with complete documentation. Therefore, I'm going to replicate it according to the official documentation to see how it performs. This 3500W half-bridge induction cooker uses the HT45F0074A dedicated chip. The schematic and PCB layout are from Holtek Semiconductor (China) Co., Ltd.'s official demo materials. Those interested can download the relevant BOM, schematic, PCB layout, source code, and other files from their official website.
