220V to 12V transformer power supply

Overview

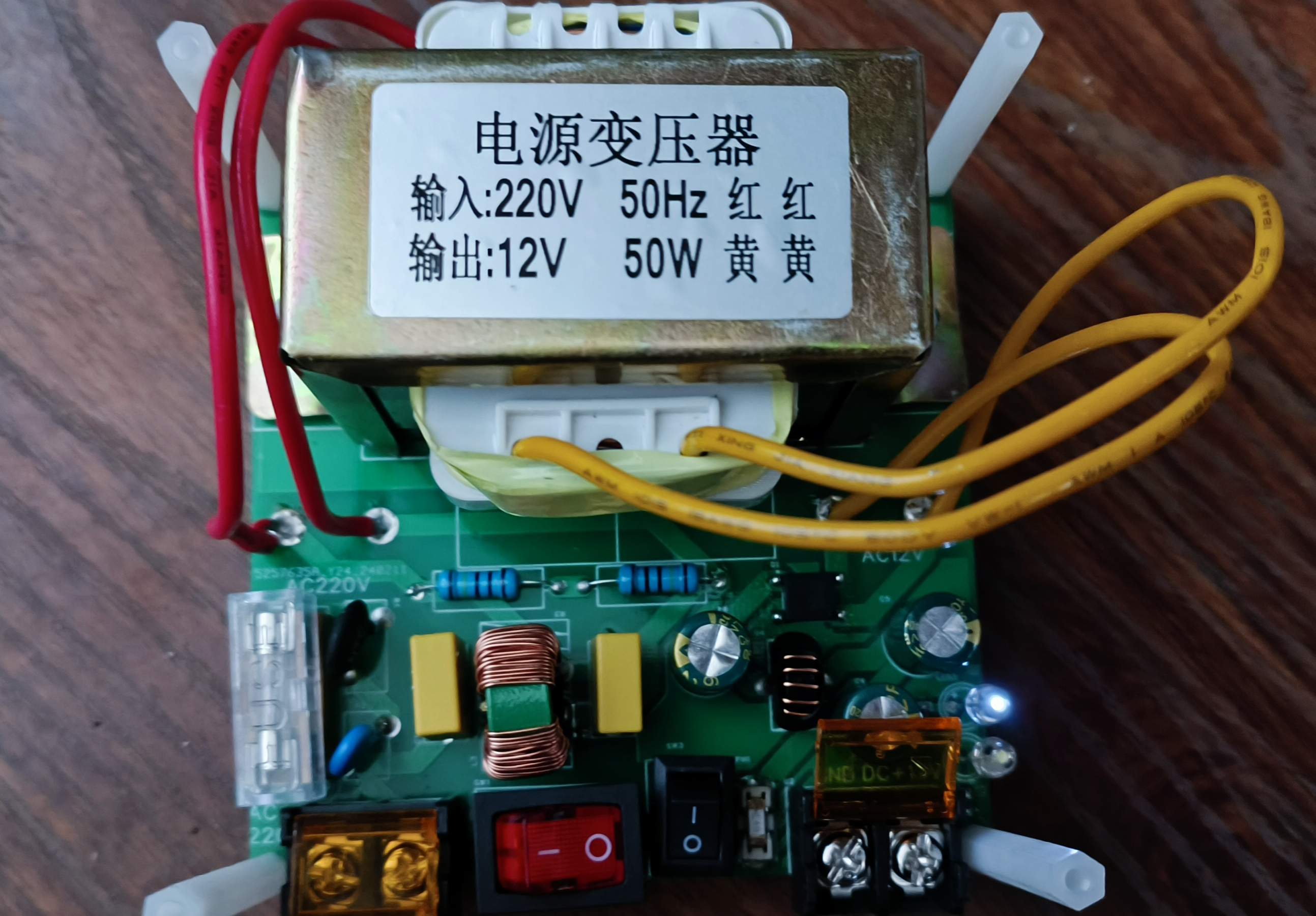

This is actually the second version. The previous 12V switch used the same one as the 220V one, but I realized I was using the wrong one when the switch light didn't turn on. I added lights before and after the 12V switch to check for residual power. I also added a circuit that can quickly use up any remaining power after a power outage. I don't have a clear idea yet. The output is actually 18V; I'll add a voltage regulator chip later. Discussion and guidance are welcome. (Only group: 289917684)
