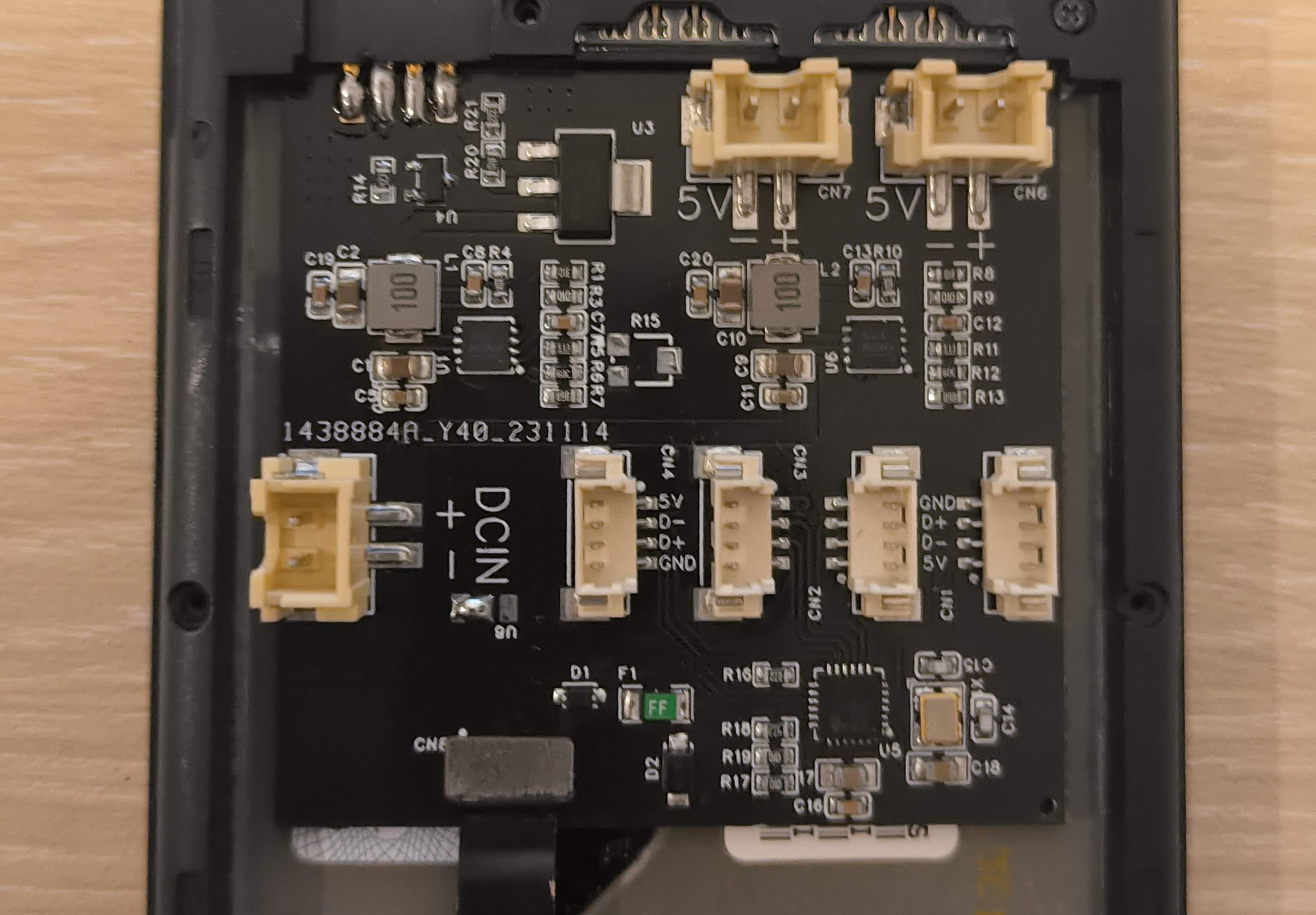

This is a dual-channel DC-DC step-down circuit, with one XH2.54 terminal as input and two XH2.54 terminals as output. A separate step-down chip is used for powering the mobile phone. The FE1.1S USB hub chip uses an MX1.25 4P terminal as an expansion interface.
