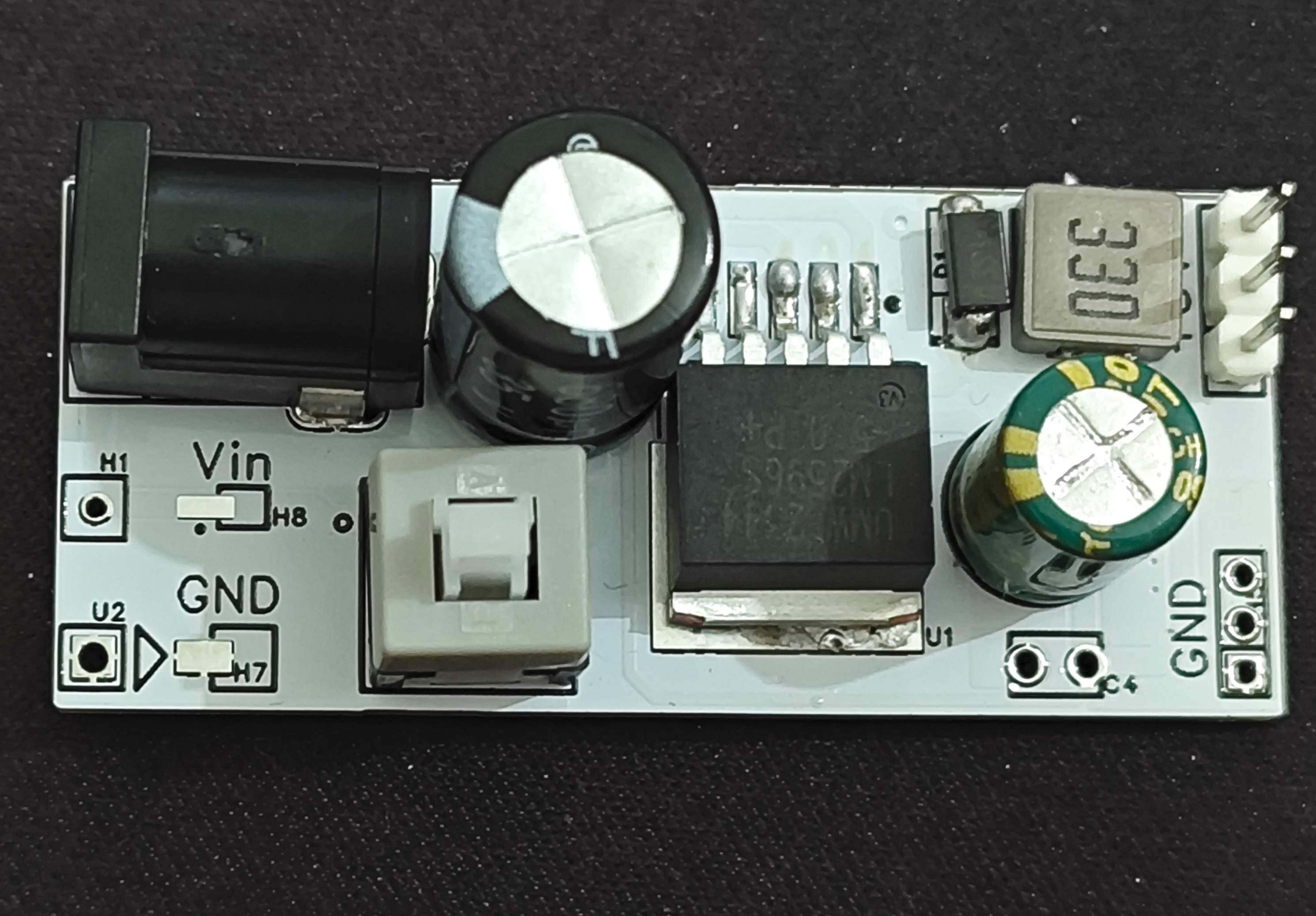

LM2596S voltage regulator

Input Filter Capacitor: Connect the input power supply to the VIN pin of the LM2596S chip. To reduce noise and fluctuations in the input power supply, a suitable electrolytic capacitor is typically connected in parallel between the input power line and VIN. This capacitor is generally selected with a value of tens to hundreds of microfarads (µF).


Output Filter Capacitor: Connect the load requiring voltage regulation to the VOUT pin of the LM2596S chip. To reduce output voltage ripple and provide a stable power supply, a suitable capacitor needs to be connected in parallel at the output. The capacitance value is determined according to specific application requirements, with common values ​​ranging from tens to hundreds of microfarads (µF).


Output Inductor: To improve conversion efficiency and reduce output ripple, a suitable inductor can be connected in series between the VOUT pin of the LM2596S chip and the output filter capacitor. The inductor value is generally between tens and hundreds of microhenries (µH).


Control Switch: The LM2596S chip has an internal switch used to control the switching time of the input voltage, realizing the buck regulation function. A suitable inductor is connected to the SW pin of the chip to control the conduction and shutdown of the switching transistor.
