PCB Lantern 1 (Completely Open Source)

Overview

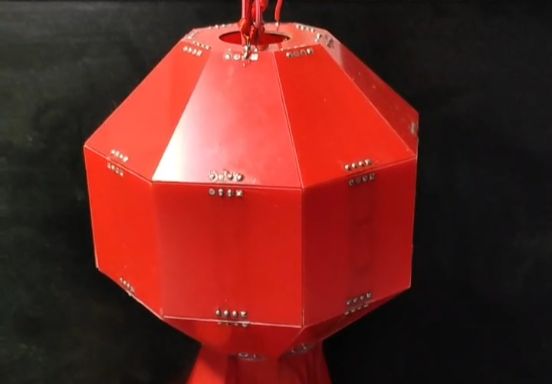

Make a lantern using PCBs, with an eight-segment watermelon rind structure, consisting of 26 PCBs (8+8+8+2=2).
It has 48 LEDs (6*8=48). The actual effect is mediocre; it looks a bit like the octopus burger from Octonauts.
A demo video can be found on Bilibili: https://space.bilibili.com/476762182

. The source code is attached.
