MAXREFDES1163: ±15V/100mA or ±12V/50mA output, ISO-BUCK DC-DC power module

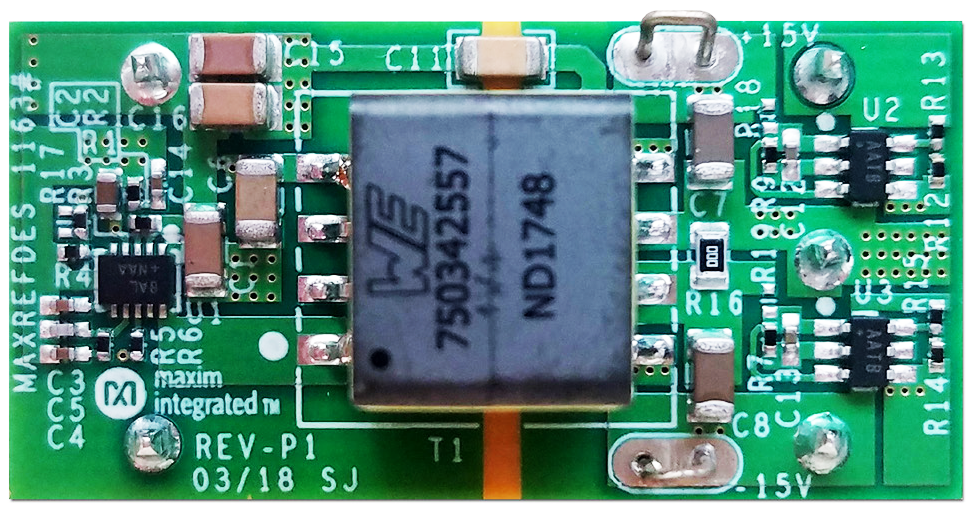

The MAXREFDES1163 is a high-efficiency, iso-buck DC-DC power module based on the MAX17681. It accepts an input voltage range from 17V to 32V and adjusts the output voltage through primary-side feedback. The reference design provides two output configurations: In one configuration, the output is set to ±15V @ 100mA with ±10% regulation accuracy; in the second configuration, a post-regulator (MAX17651) is used to produce a ±12V @ 50mA output. The output voltage regulation accuracy is within ±3%. This iso-buck isolated power module is available in the MAX17681 in a 10-pin (3mm x 2mm) TDFN package and the MAX17651 in a 6-pin TSOT package. The MAXREFDES1163's pin pitch complies with the Distributed Power Source Open Standards Alliance's (DOSA) open standard for DC/DC module power supplies. Two transformer options are provided, one is from Wurth; the other is from Chinese transformer manufacturer HanRun, which is convenient for users to choose. The reference design provides 1500V electrical isolation.

Key Features

• ±15V@100mA or ±12V@50mA output

• 17V to 32V input voltage range

• EN/UVLO input

• 200kHz switching frequency

• 89% peak efficiency

• Overcurrent protection

• No optocoupler design

• Output power up to 3W

• Thermal Protection

• Proven PCB layout

This circuit board is not for sale.

Design, build and test

This reference design introduces the MAXREFDES1163 hardware circuit design and provides detailed technical guidance for designing an iso-buck converter using Maxim's MAX17681A current-mode controller. The power supply has been built and tested.
