AT8222 DC Motor Drive Test


Overview

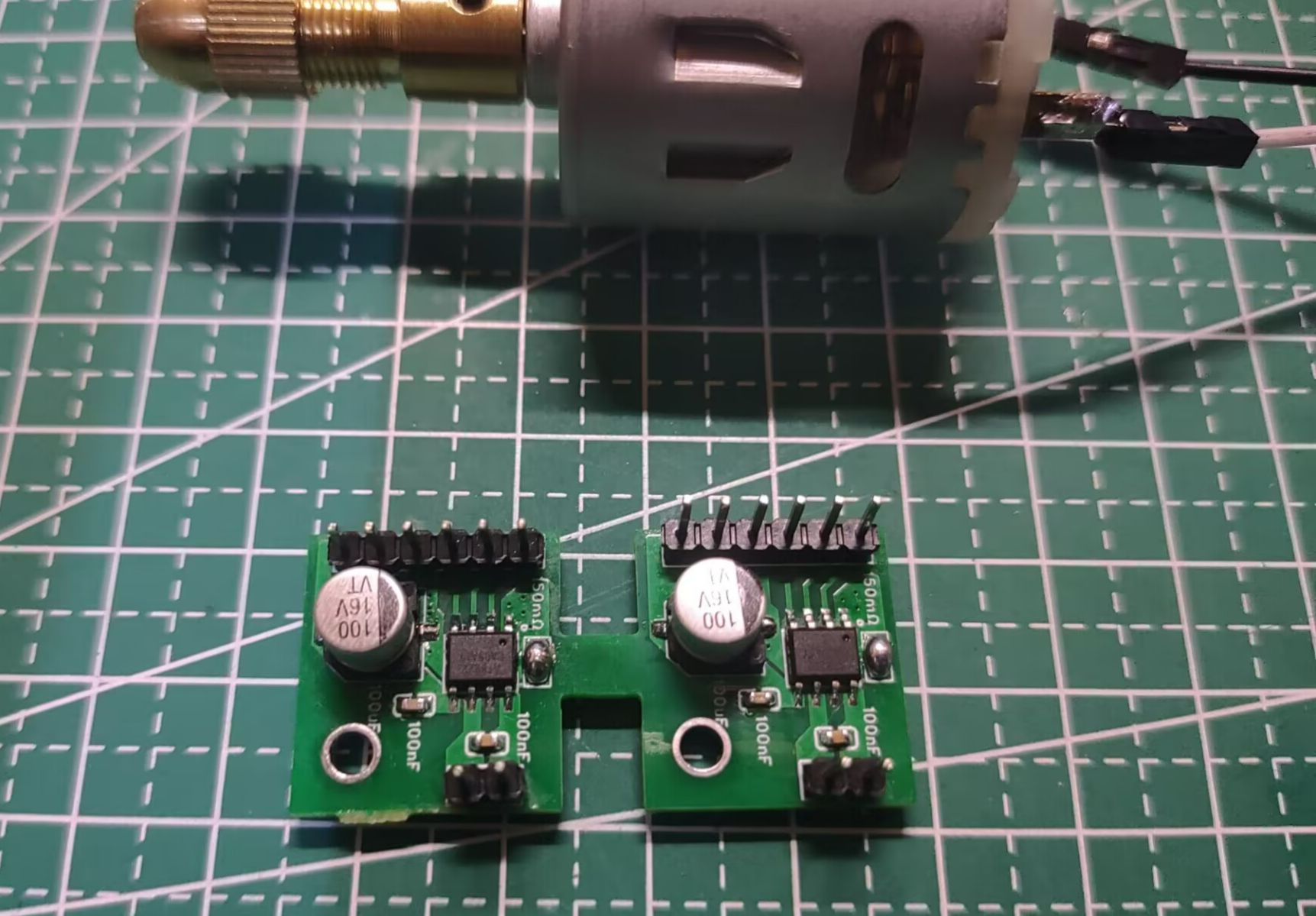

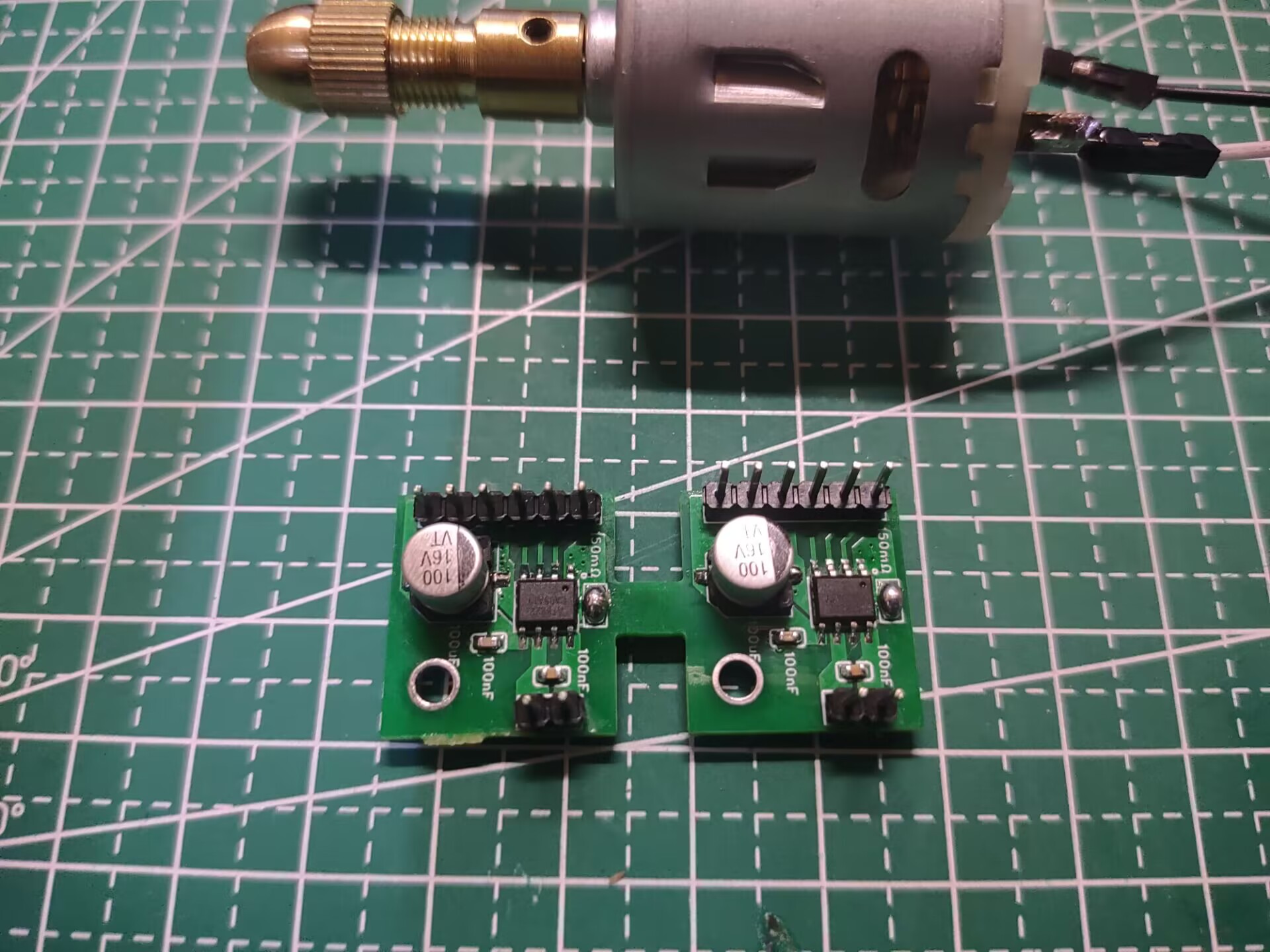

Overall Board

Usage Instructions:
1. Detailed Wiring :
OUT1, OUT2 ---> Connect to motor;
IN1, IN2 --------> Connect to input level signal or control board PWM signal (see control logic section below for details);
VR -------------> Connect to reference voltage (input range 0.5-4V, voltage selection see the final formula);
GND -------------> Connect to signal and drive ground (both must share a common ground!);
HV ------------> Connect to motor drive voltage (5.5-24V, select according to the motor).
2. Related Wiring Details:

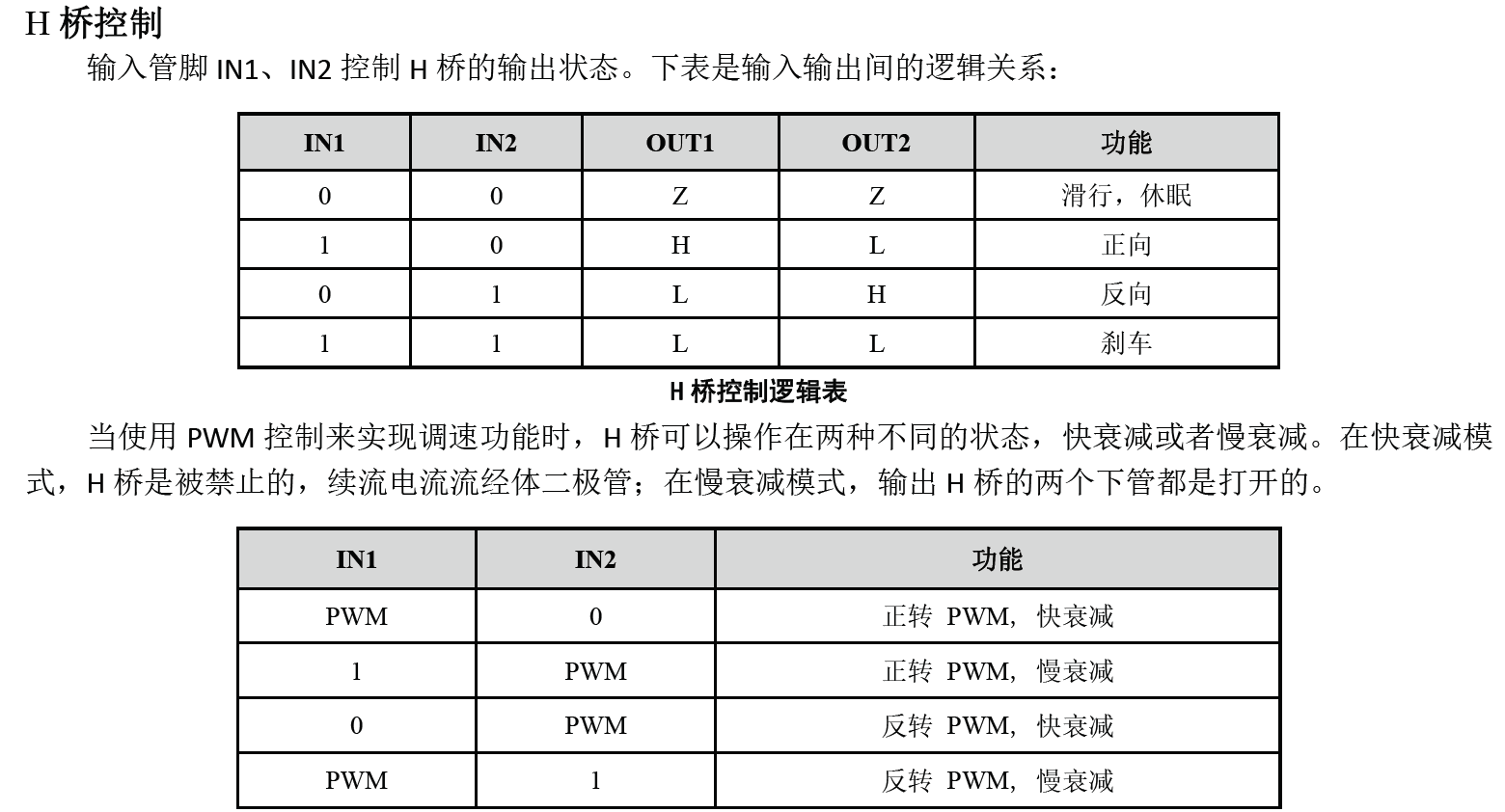

Control Logic
Maximum Current Limiting Formula:
(Vref is the input reference voltage, Risen is the 0.15Ω resistor on the board. When not limiting current, Vref can be any voltage from 0.5-4V, and Risen is shorted to ground!)
For example: when Vref=1.5V, R=0.15Ω, then Imax=1.5/(10x0.15)=1A
