STM32 Oscilloscope

Overview

Project Functions:

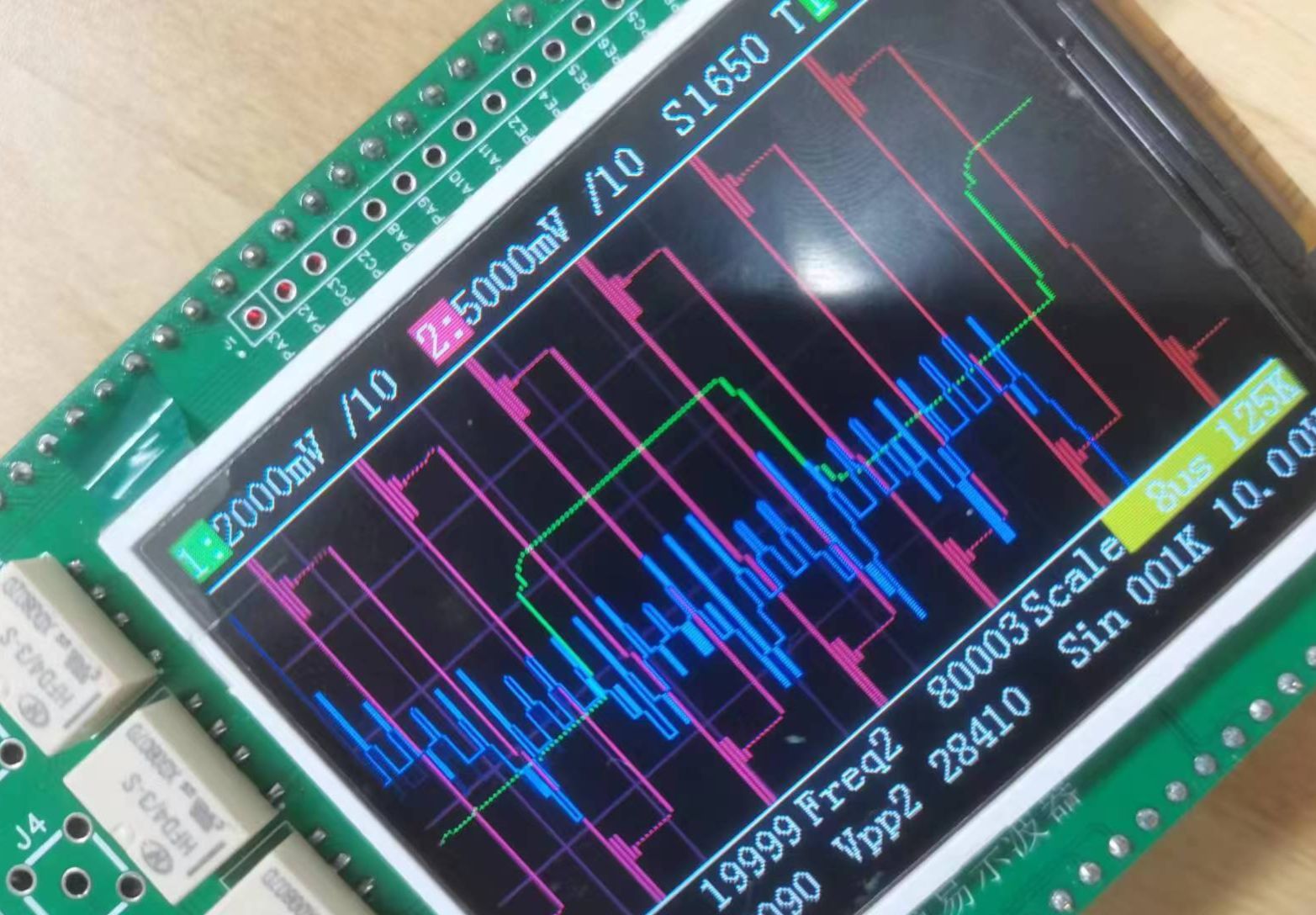

Dual-channel signal measurement: This oscilloscope can simultaneously measure signals from two channels, allowing for simultaneous observation and analysis of two different signals.
Internal DAC output: The oscilloscope features an internal DAC (digital-to-analog converter) that can output a single signal. The DAC's output range is 0-3.3V. This allows the oscilloscope to be used not only as a tool for observing and analyzing signals but also as a signal generator.
Use of expensive op-amp chips: To improve accuracy, this project uses expensive op-amp chips from TI (Texas Instruments). Operational amplifiers play a crucial role in many electronic systems, amplifying and modulating signals. Using high-quality op-amp chips improves measurement accuracy and stability.
