Active buzzer

Overview

Version Description
Version Name: Active Buzzer Module V1.0
Release Date: 2023/11/15
I. Function Introduction
Project Introduction Video

This active buzzer module is high-level triggered
and comes with a matching 3D shell file

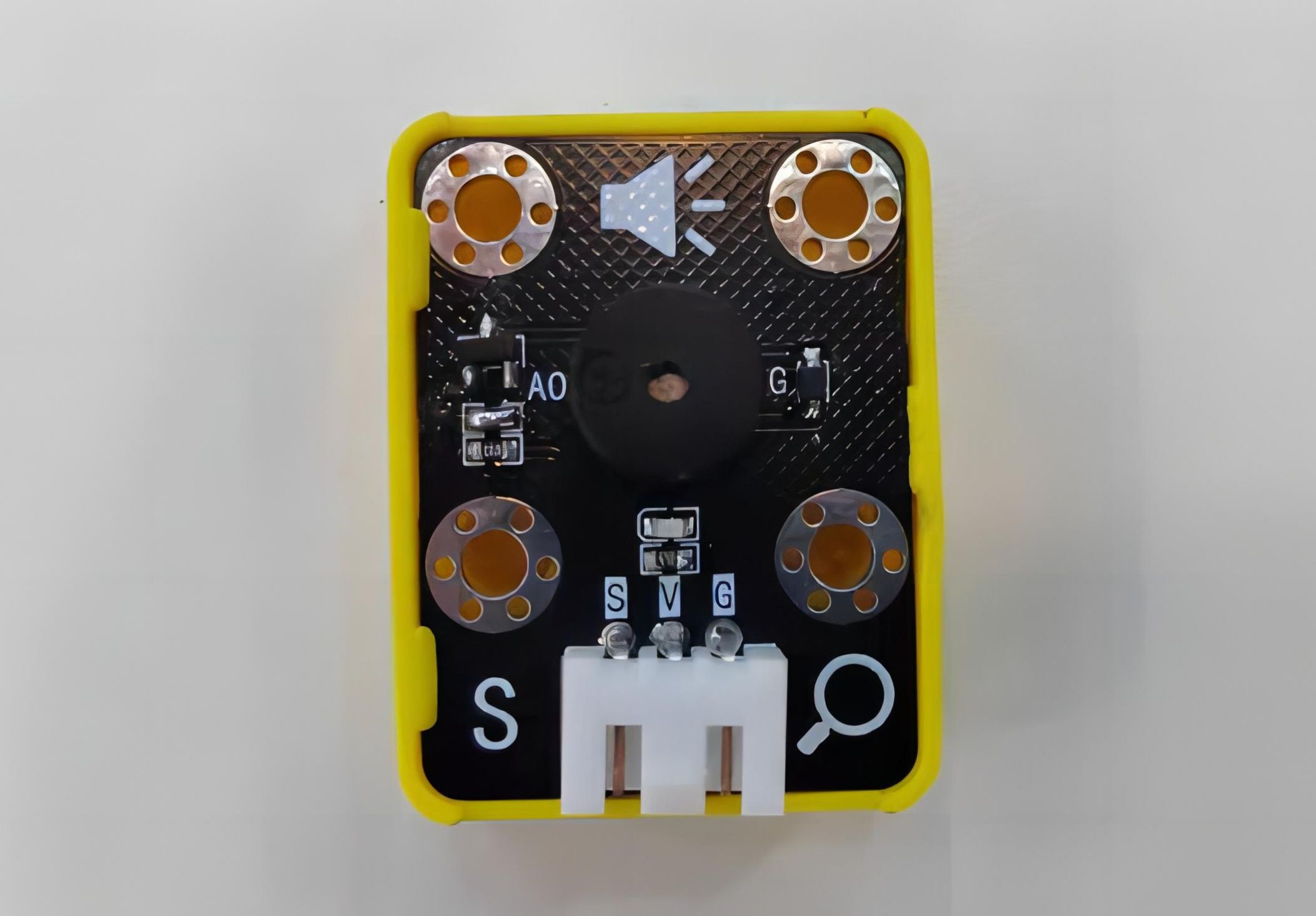

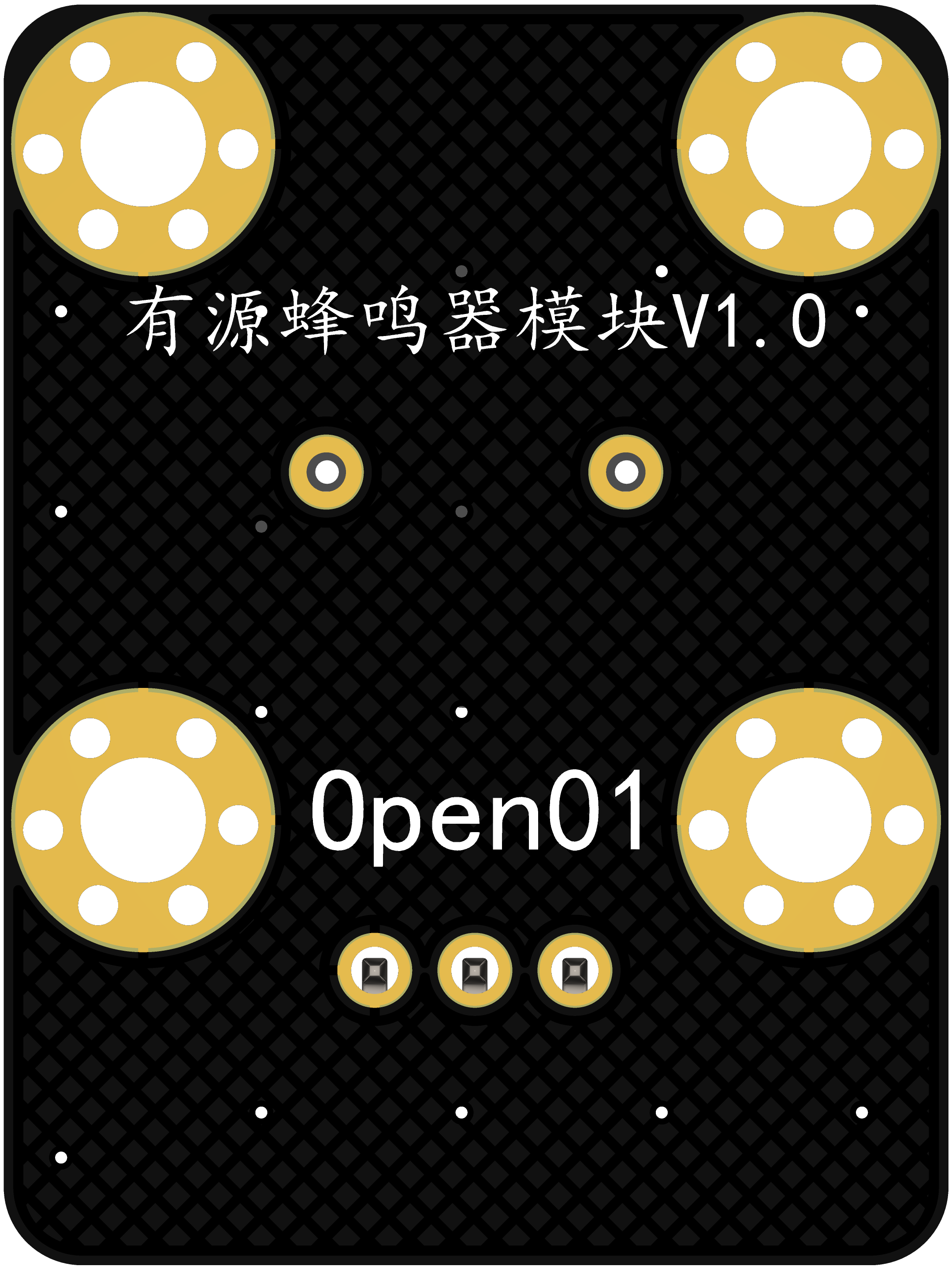

. The design is elegant and incorporates excellent design styles from several online products. II. Renderings

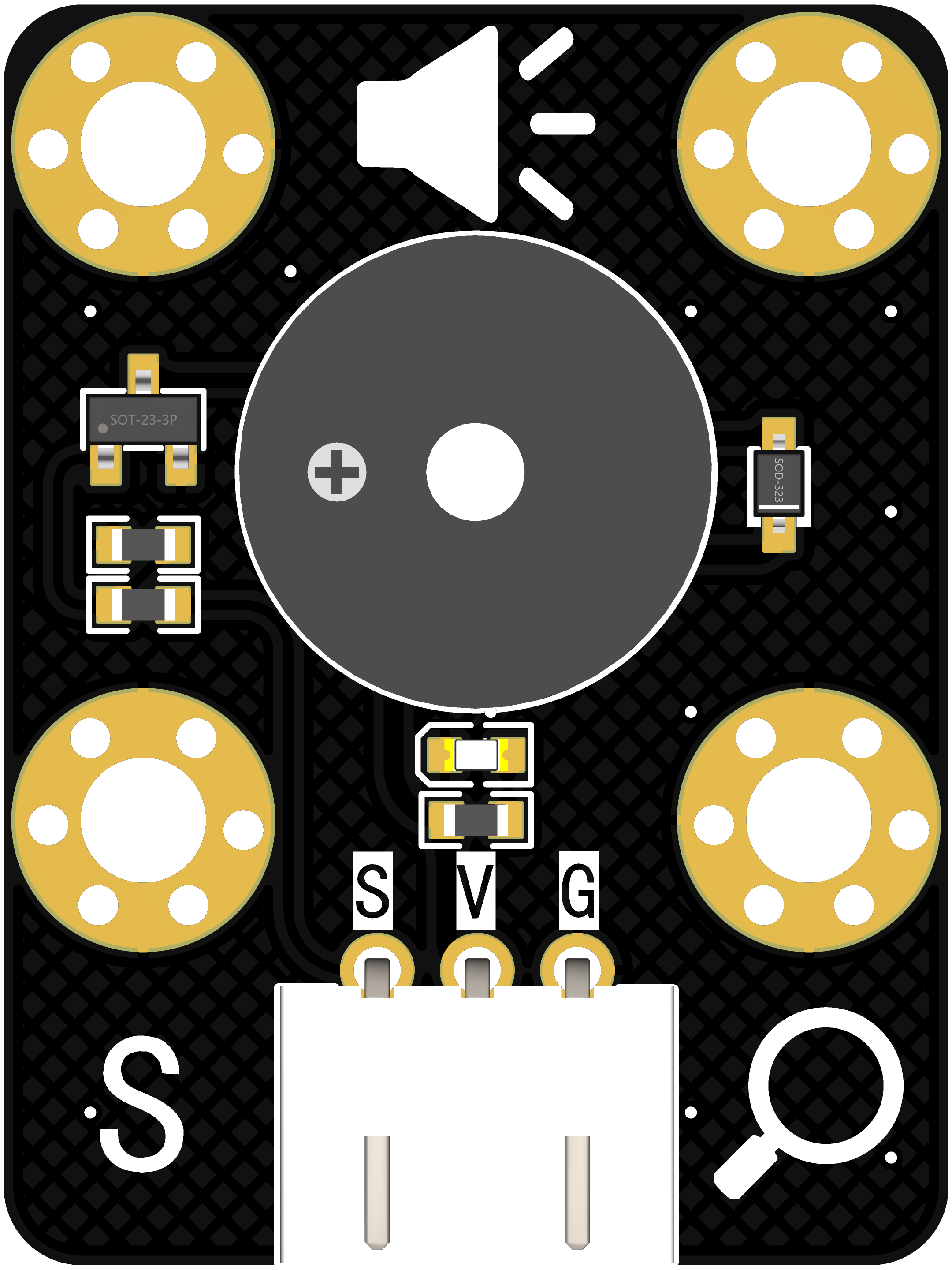

III. Functional Modules
1. Power Indicator

This is a power indicator light. The brightness can be controlled by adjusting the resistance of R1.
2. Active Buzzer

This active buzzer module is high-level triggered. R2 is a current-limiting resistor, R3 is a pull-down resistor, and D1 is a freewheeling diode. A standard design, no further explanation needed.
3. Screw Holes

Four screw holes are provided for easy installation.
IV. Remarks

This project will be continuously improved and updated.
Update Time: 15th or the last day of each month.
Access Methods:
UP: open01_T_Jupiter; duduvue;
QQ: 826793815

Subsequent open-source projects and updates will be released on Bilibili, LCSC Open Source Platform, Github, and Gitee. Please follow for real-time updates!
