Voltmeter and Ammeter

Overview

* 1. Project Function Introduction:

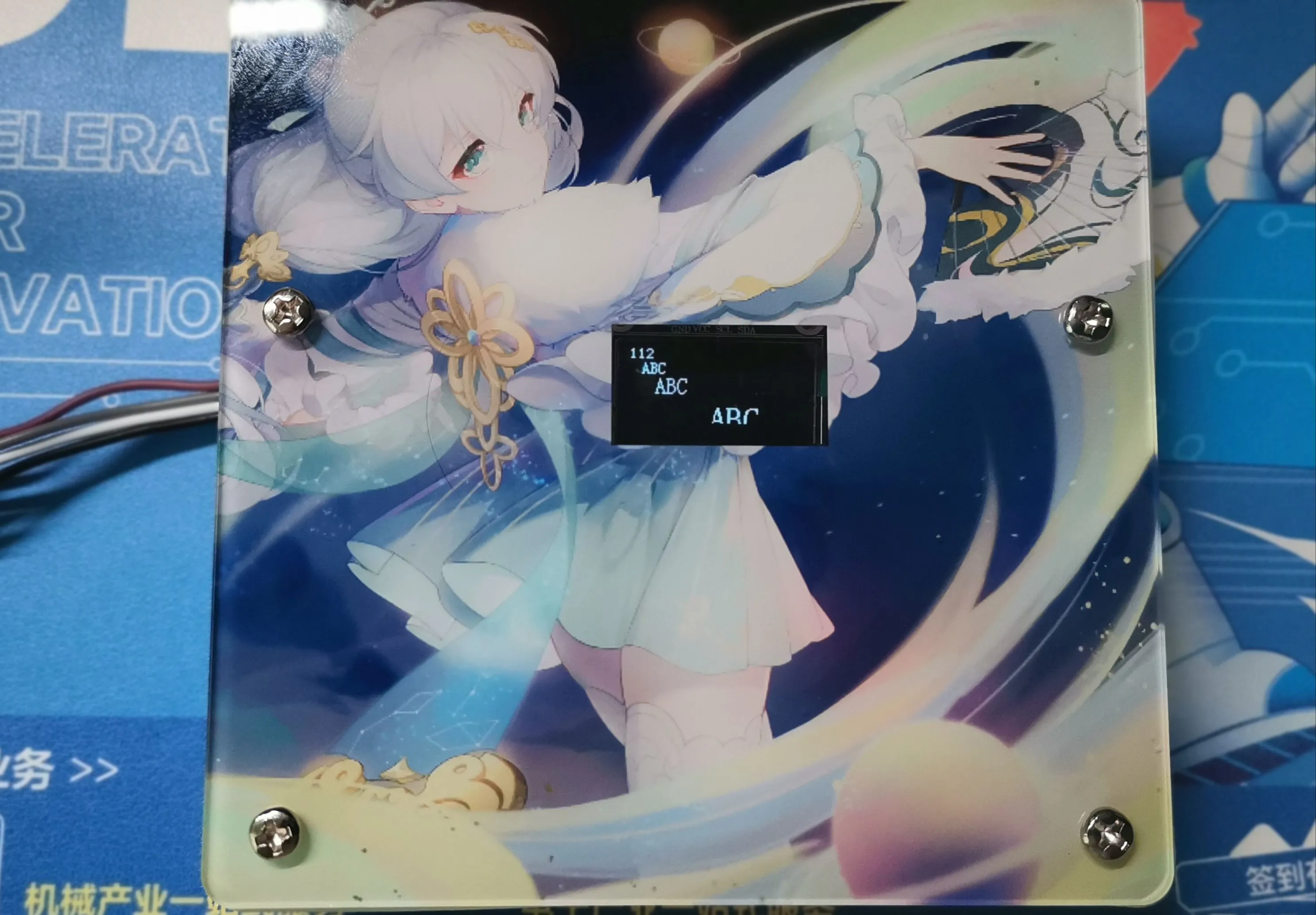

A real-time voltage and current meter powered by Type-C, featuring a passive buzzer and driver circuit, a 0.96-inch OLED screen, enhanced voltage and overcurrent resistance, and the ability to measure up to 48V and 6A.

* 2. Project Attributes:

A beginner's attempt at development, created for learning purposes. The circuit is simple and easy to replicate.

* 3. Open Source Protocol

: Simple structure, freely usable.
* 4. Hardware: The main

control circuit uses the LCSC CW32F030C8T6 minimum system board, featuring a 0.96-inch monochrome I2C screen, a passive buzzer and its driver circuit, control buttons, dual-range voltage sampling circuit, current sampling circuit, voltage analog circuit, current analog circuit, and a serial port download interface.

* 5. Software:

Initial use of CW32 series chips; software is still under development.
