(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C09E.pdf
Oct.17,2016
EU RoHS Compliant
For
'Mur
A
ro c
r o ur
o
-
'
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
1
Contents
Part Numbering
Product specifications are as of
October 2016
.
EMIFILr in this catalog is the trademark of Murata
Manufacturing Co., Ltd.
p2
p3
2
Outline of EMI Suppression Filter (EMIFILr) for AC Power Lines
1
Common Mode Choke Coil
PLA10 Series Standard Winding
PLA10 Series Sectional Winding
PLA10 Series (Safety Standard Recognized) Standard Winding
PLA10 Series (Safety Standard Recognized) Sectional Winding
PLA10 Series High Inductance Standard Winding
PLA10 Series High Inductance Sectional Winding
PLA10 Series High Inductance (Safety Standard Recognized) Standard Winding
PLA10 Series High Inductance (Safety Standard Recognized) Sectional Winding
PLH10 Series
PLH10 Series (Safety Standard Recognized)
p5
p5
p5
p7
p7
p9
p9
p11
p11
p13
p14
2
Hybrid Choke Coil
PLY10 Series Standard Winding
PLY10 Series Sectional Winding
PLY10 Series (Safety Standard Recognized) Standard Winding
PLY10 Series (Safety Standard Recognized) Sectional Winding
PLY10 Series High Inductance Standard Winding
PLY10 Series High Inductance Sectional Winding
PLY10 Series High Inductance (Safety Standard Recognized) Standard Winding
PLY10 Series High Inductance (Safety Standard Recognized) Sectional Winding
PLY17 Series A Type
PLY17 Series B Type
PLY17 Series (Safety Standard Recognized) A Type
PLY17 Series (Safety Standard Recognized) B Type
Noise Suppression Effect of PLY10 Series
!Caution/Notice
Packaging
p15
p15
p15
p17
p17
p19
p19
p21
p21
p23
p23
p25
p25
p27
p28
p29
Please check the MURATA website (http://www.murata.com/)
if you cannot find a part number in this catalog.
1
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C09E.pdf
Oct.17,2016
o
Part Numbering
AC Line Filters
(Part Number)
1Product
ID
Product ID
PL
2Type
Code
A
H
Y
3Applications
Code
10
17
4Structure
Code
A
B
5Features
Code
S
N
H
V
Features
Safety Recognized
General Use
High Inductance
High Inductance Safety Recognized
Structure
Core Vertical
Core Horizontal
9Lead
Dimensions
Code
2
:Packaging
Code
B
Packaging
Bulk
Series
All series
Lead Dimensions
3.5mm
Applications
for AC Line
Type
AC Standard
AC High-frequency
AC Hybrid Choke Coils
8Winding
Mode
Code
A
B
D
R
P
Winding Mode
Parallel Winding
Parallel Winding (High-Performance)
Sectional Winding
Standard
Single Layer Winding
Common Mode Choke Coils
PL
1
A 10 A
S 152 2R0 R
6
7
2
B
6Inductance
Expressed by three figures. The unit is micro-henry (μH). The first
and second figures are significant digits, and the third figure
expresses the number of zeros that follow the two figures.
7Rated
Current
Expressed by three-digit alphanumerics. The unit is amperes (A). A
decimal point is expressed by the capital letter "R." In this case, all
figures are significant digits.
2 3 4 5
8 9 :
2
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C09E.pdf
Oct.17,2016

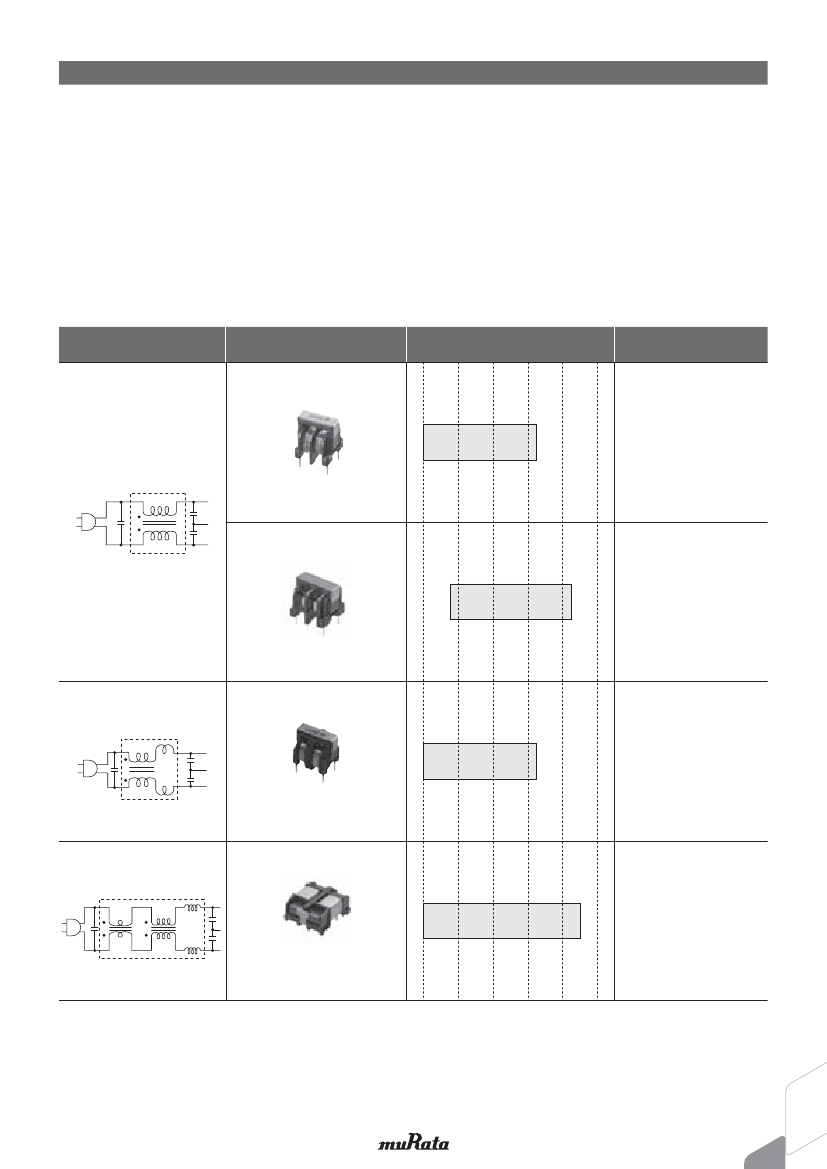

Outline of EMI Suppression Filter (EMIFILr) for AC Power Lines
EMI (Electromagnetic Interference) suppression filters for
AC power lines eliminate noise entering equipment from
commercial power lines or noise generated from electronic
equipment.
Common mode chokes, line bypass capacitors, and across
the line capacitors are generally used as AC EMI suppression
filter devices. In suppressing common mode noise, common
mode chokes are the most important devices. Because the
characteristics of common mode chokes influence the
performance of the total filter block, MURATA provides two
types of common mode chokes (standard type and high
frequency type).
A hybrid choke coil is a high-performance EMI suppression
device that can suppress both common mode noise and
differential mode noise at the same time. It is effective in
AC power supplies with active devices for a higher harmonic
countermeasure, which tends to emit relatively higher
differential mode noise.
Classification of EMI Suppression Filter for AC Power Lines
