HDMI transceiver solution based on ADV7623

Today, large-screen HDTVs (high-definition televisions) have gained widespread acceptance among consumers, and people are purchasing a variety of electronic devices to complete their home theater systems. HDMI transceivers can help system designers reduce the cost and difficulty of designing home theater systems, and provide the latest HDMI features to meet consumers' audio-visual experience needs.

The ADV7623 is a high-performance 4-input single-output High-Definition Multimedia Interface (HDMI) transceiver that integrates an HDMI receiver and transmitter with digital audio input and output for flexible audio extraction and insertion.
        • Support HDMI1.4 standard: Audio Return Channel (ARC); support 3D TV content type bits and CEC1.4 compatible films
        • All HDMI ports support Xpressview fast switching
        • Character- and icon-based OSD (screen display)
        • High bandwidth Digital content protection (HDCP1.4)
        • Supports HDCP repeaters
        • 225MHz HDMI reception and transmission supports 36/30/24-bit color depth
        • Supports DVI RGB images up to 1600x1200 resolution at 60HZ frame rate

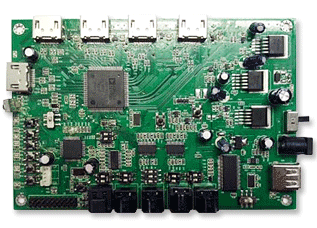

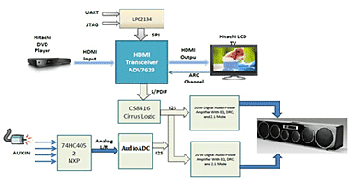

        This reference design is based on ADV7623 HDMI transceiver solution supports DVI RGB images with resolutions up to 1600x1200@60Hz.

Click to download complete documents and resources

Complete information includes the following:
1. Bill of materials
2. Schematic diagram and PCB files
