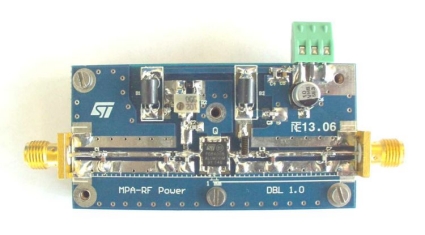

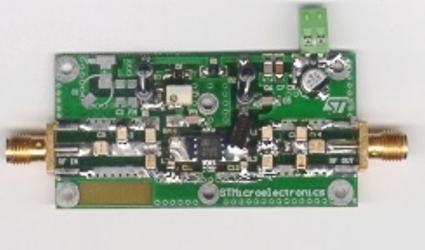

5 W, 740-950 MHz evaluation board based on PD84008L-E

STEVAL-TDR021V1

Overview

The STEVAL-TDR021V1 is a demonstration board using the PD84008L-E LDMOS transistor. It is designed for 2-way UHF portable radio applications.

Main features

Excellent thermal stability
Frequency: 740 - 950 MHz
Supply voltage: 7.2 V
Output power: 5 W
Power gain: 11 ± 1.0 dB
Efficiency: 48 % - 54%
Load mismatch: infinite
BeO free amplifier
