TPS40200 Universal Non-Synchronous Buck Converter Reference Design

PMP7154

Overview

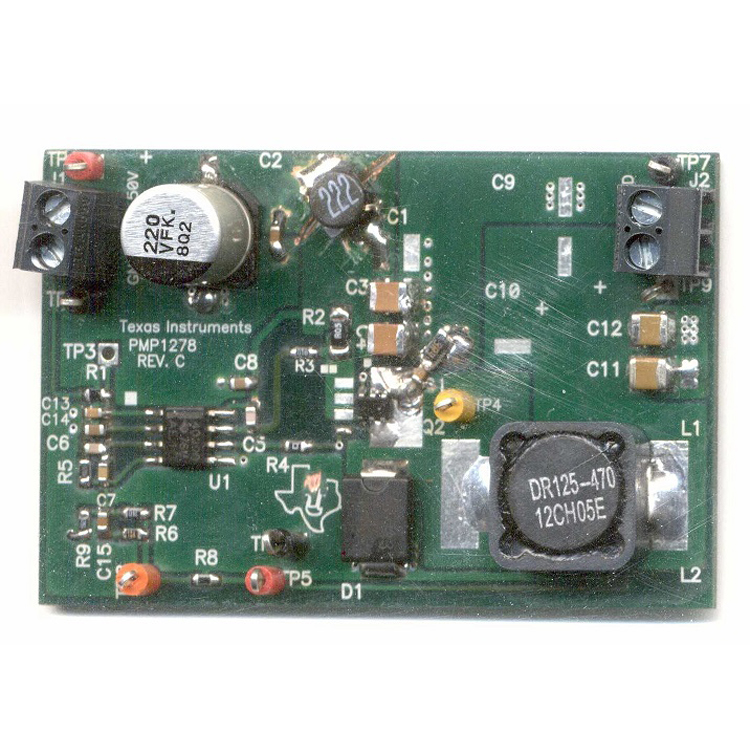

This reference design operates over an 8V - 16V input range and delivers 5V @ 1A at the output. This design is content from the presentation material of the TI Power Workshop. This design has been built and tested and the design files and test report are included. This is a good low cost design that demonstrates the fundamentals of a non-isolated, non-synchronous dc-dc buck converter.

characteristic

● Lowest cost buck converter
● Good example of a basic non-isolated, non-synchronous dc-dc buck converter
● Design files and test report included

Backlog Impt notice changes Backlog Impt notice changes end

Design Files

Documentation

PMP7154 Test Results
