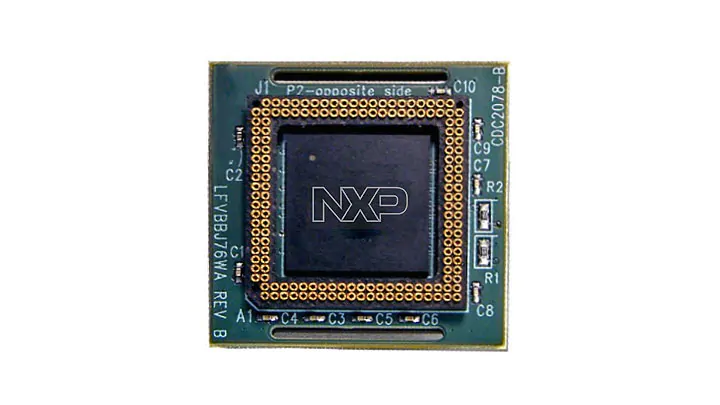

MPC5674FVBBOARDS: MPC5674F VertiCal base board

Overview

The VertiCal system enables the use of enhanced automotive calibration and debugging tools on the NXP® MPC5674F family of automotive microcontrollers.

VertiCal components are available in different package types to support a wide range of MPC5600 devices.
All VertiCal hardware supports standardized tool connectors, allowing connection and reuse of multiple calibration and debug hardware
