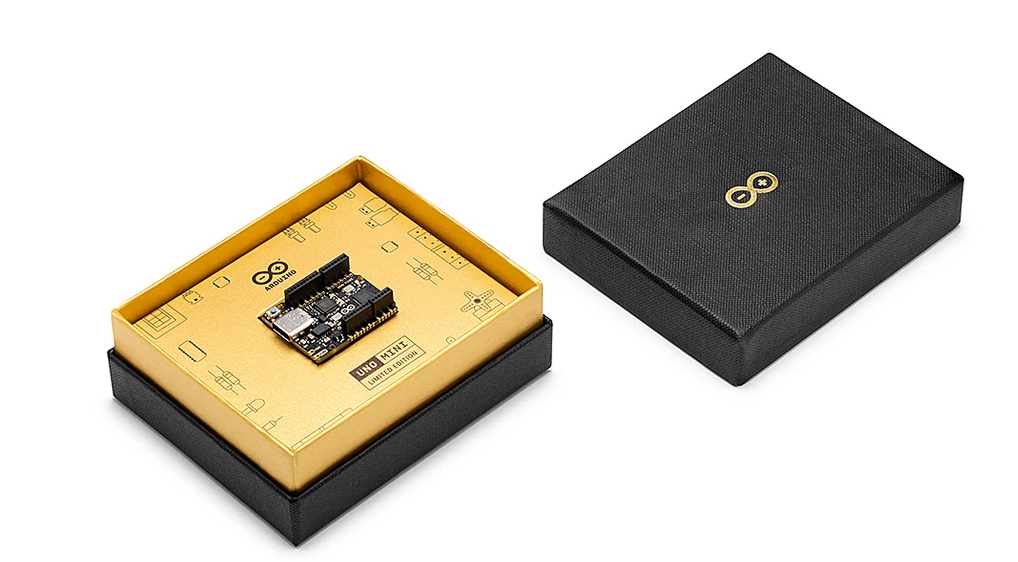

Since its launch in 2010, Arduino UNO has shipped 10 million units to date. To this end, the Arduino team has designed the Arduino UNO Mini Limited Edition to celebrate this milestone. The Arduino UNO Mini has essentially all the same features as the original Arduino UNO, but is only one-quarter the size and has a USB Type-C port for programming the board using the Arduino IDE.
Specific information is as follows:
Microcontroller – Microchip ATmega328P 8-bit AVR microcontroller @ 16 MHz with 2KB SRAM, 32KB Flash, 1 KB EEPROM

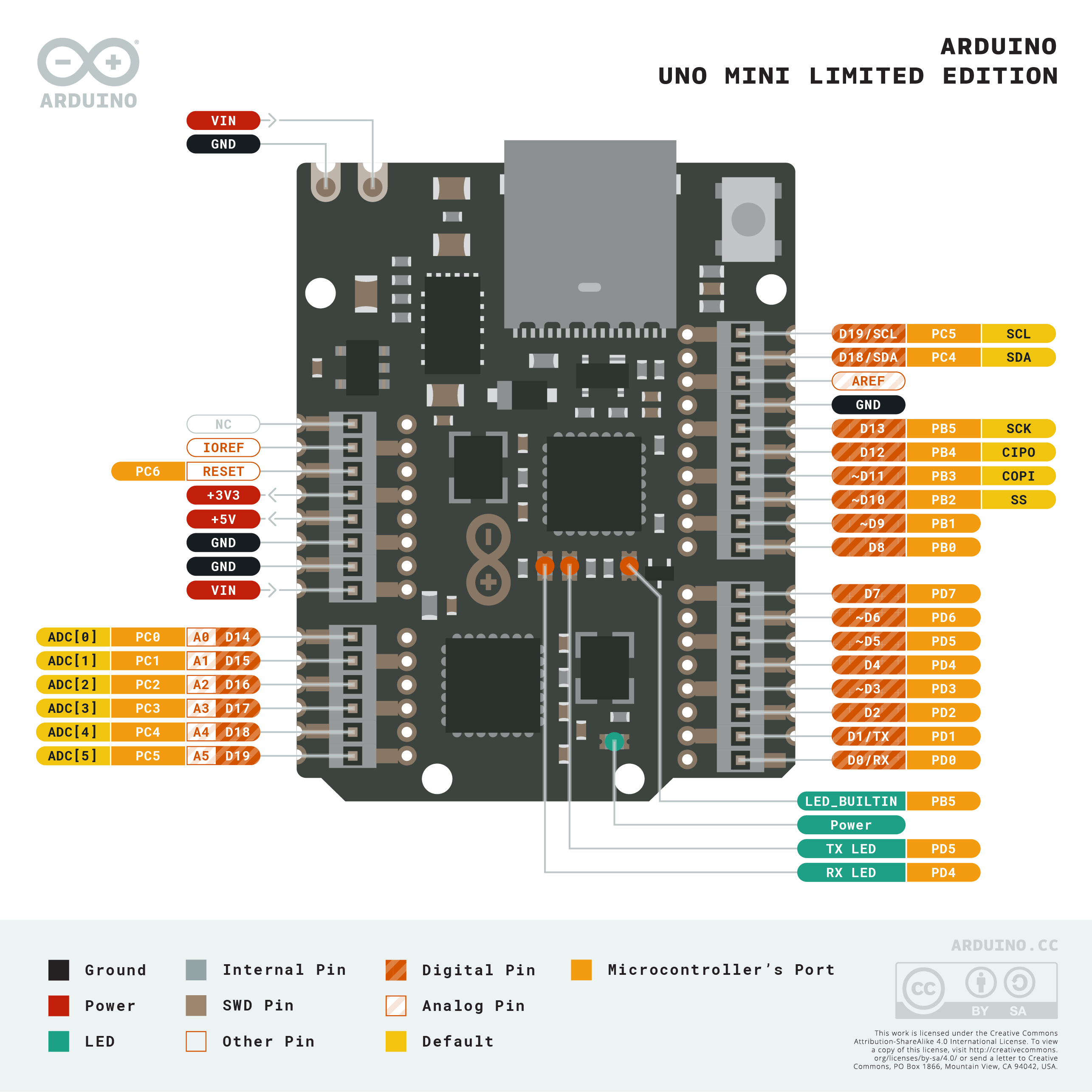

USB – 1x USB Type-C port expands 14x digital I/O
via female header and toothed hole
O Pins (GPIO, I2C, SPI, UART)
6x PWM I/O Pins
6x Analog Input Pins
Other – Buttons, some LEDs
Input Voltage – 6-20V available via VIN/GND pins or via USB-C port 5V
operating voltage – 5V
Dimensions – 34.2 x 26.7 x 8mm
Weight – approximately 8 grams
Blockdiagram
