Chorus series resistive touch display expansion board

Display expansion board with resistive touch for Chorus family

Overview

describe

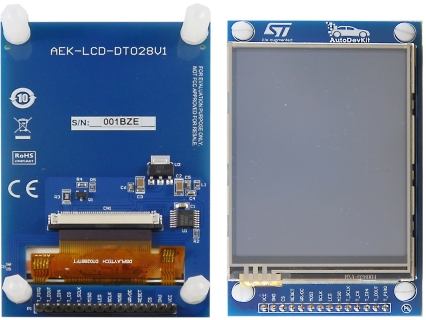

The AEK-LCD-DT028V1 evaluation board hosts a 2.8” LCD display with resistive touch for a graphical user interface (GUI) which interacts with SPC5 MCU discovery boards.

The TFT SPI LCD display has a resolution of 240x320 pixels and features resistive touch managed by an on-board SPI touch screen controller.

All features

2.8 "(240x320 pixel) TFT SPI LCD with resistive touch managed by an SPI touch screen controller available on the board
PCB header connector interfacing with SPC5 MCU discovery boards
3.3V LDO voltage regulator for I/O signals
53 mm x 87 mm
WEEE and RoHS compliant
