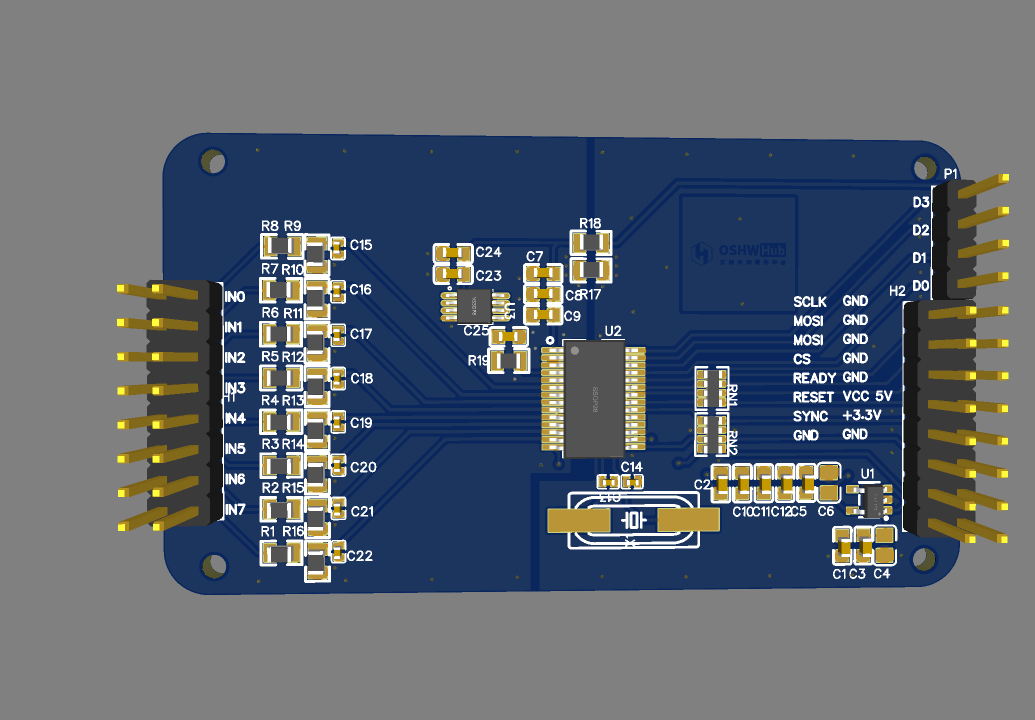

ads1256 is a high-precision ADC sampling, which can be used for sampling speed below 4khz with high precision; power range: 5.0V; onboard low-temperature reference source REF5025; single-ended input or differential input can be used, and the input can be configured Attenuation, the default is no attenuation (the voltage divider resistor is soldered empty); the onboard crystal frequency is 7.680MHz; 8-channel single-ended sampling or 4-channel differential sampling; reference voltage 2.5v;
