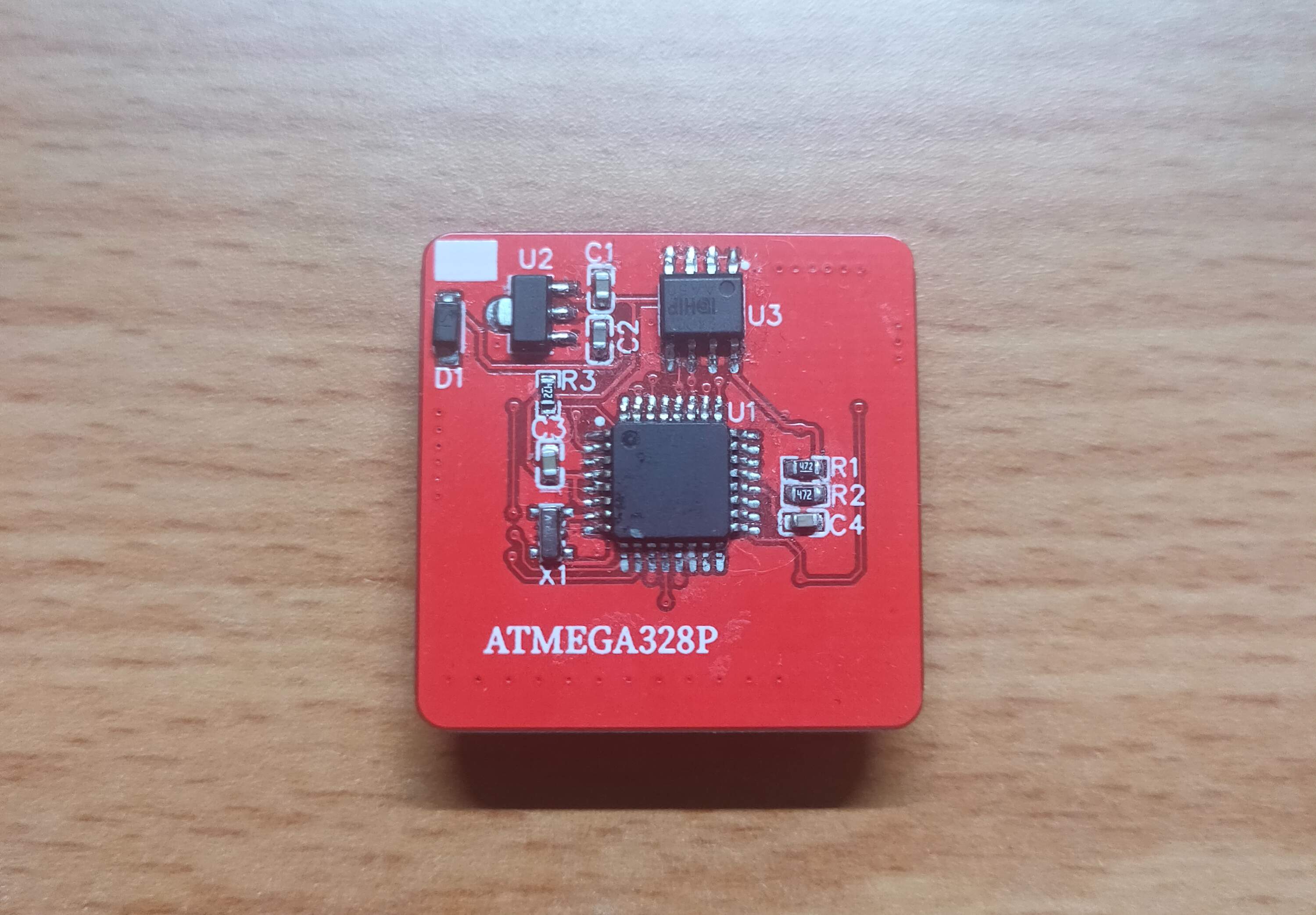

MCU core board (328P)

Overview

Using HT7533 for power supply, the output current is small, so the base needs to be equipped with an additional power supply chip.

Using 1.27MM pin header interface, it is easy to plug in and replace the MCU. There are also ESP32 and ESP8266 versions of MCU core boards with the same interface.
