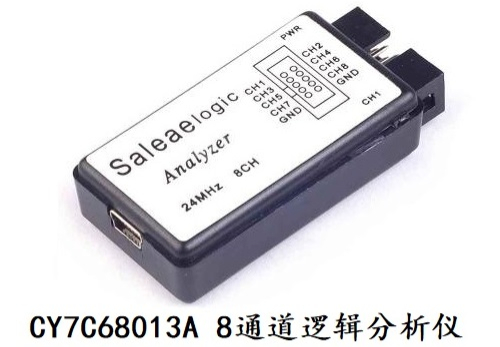

This project is designed to verify the Litron CY7C68013A-56LTXI (product number: C466860 ) microcontroller. This project is designed for the Litron EDA open source hardware platform. The solution verification module solicitation is a strength project. All components used can be found in Purchased from Lichuang Mall, this design implements the function of an 8-channel digital logic analyzer based on CY7C68013A. The design uses USBA or TypeC interface and supports USB2.0 protocol. The maximum communication rate is 480Mbps, the maximum sampling frequency is 24MHz, and the sampling depth is not limited.
