TFT LCD module-ILI9341

Overview

product description

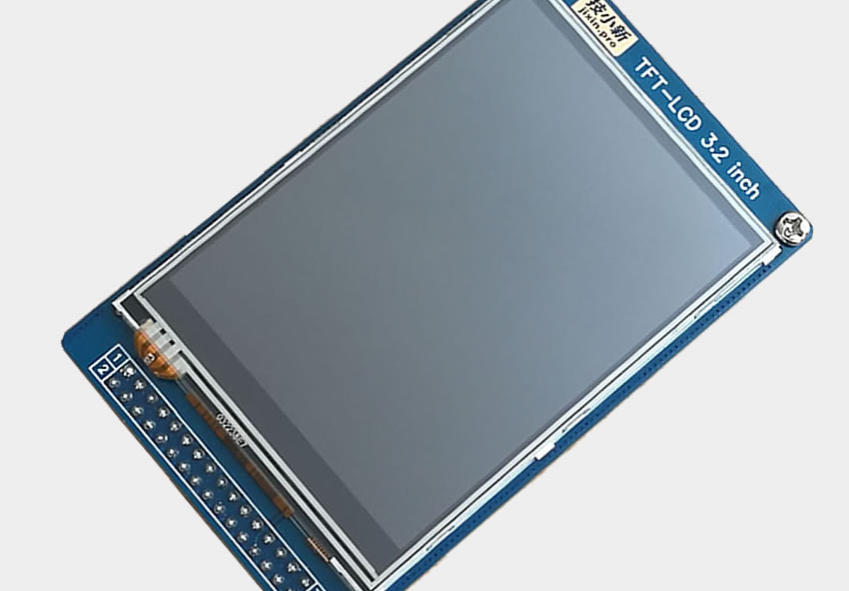

This is a LCD screen module. The LCD size is 3.2 inches and the resolution is 240*320. The LCD display part is driven by ILI9341. The LCD integrated resistive touch screen is driven by the onboard touch chip XPT2046.

Features

Working voltage: 2.5V ~ 3.3V
ILI9341 communication method: 16-bit parallel port, 8-bit parallel port, 4/3-wire SPI
FPC connector: replaceable LCD screen

Pin function table

Symbol	Description
GND	land
VCC	power input
LCD_CS	LCD chip select terminal (active low)
LCD_RS	Command/data input terminal (0: command, 1: data)
LCD_WR	Write data control terminal to LCD
LCD_RD	Read data control terminal from LCD
LCD_MOSI	Host output, slave (ILI9341) input
LCD_MISO	Host input, slave (ILI9341) output
RESET	reset pin
DB0~DB15	Parallel data input/output terminal [D0: D15]
BL_CTR	LCD backlight control terminal (external pull-up, lit by default)
TP_SCK	Clock signal input terminal for XPT2046 serial communication
TP_CS	XPT2046 chip select terminal
TP_MOSI	Host output, slave (XPT2046) input
TP-BUSY	XPT2046 busy signal output terminal
TP_MISO	Host input, slave (XPT2046) output
TP_PEN	XPT2046 touch interrupt output (active low)
