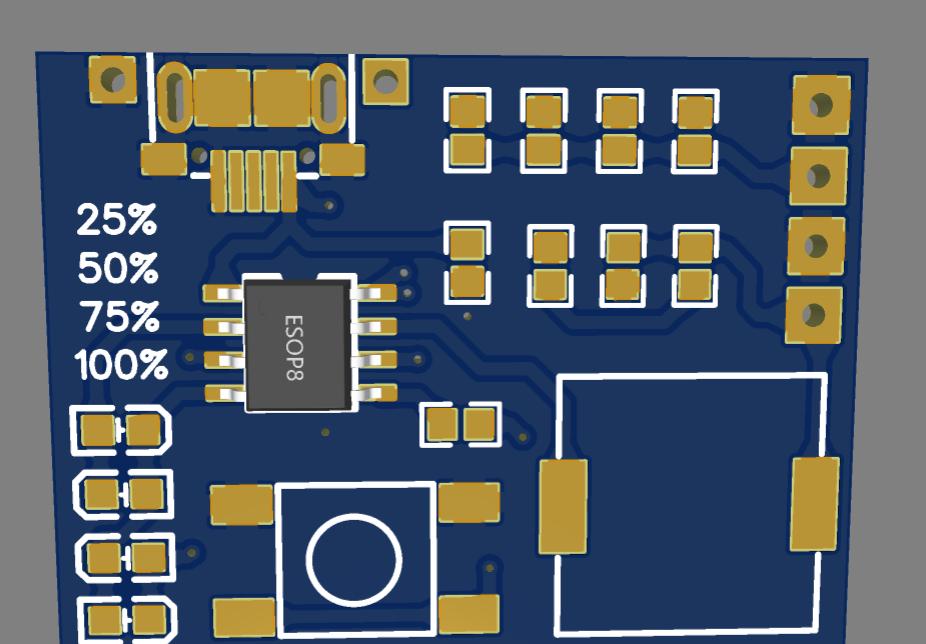

IP5306 is an integrated mobile power chip that integrates boost function, battery charging management, and power indicator. It can provide 2.4A boost output and 2.1A battery charging current. It uses 4 LEDs to represent different levels of remaining power. This circuit uses It has fewer peripheral components, lower cost and less wiring area, and can be made into a smaller circuit board. IP5306 uses the bottom pad of the chip as the GND electrode.
