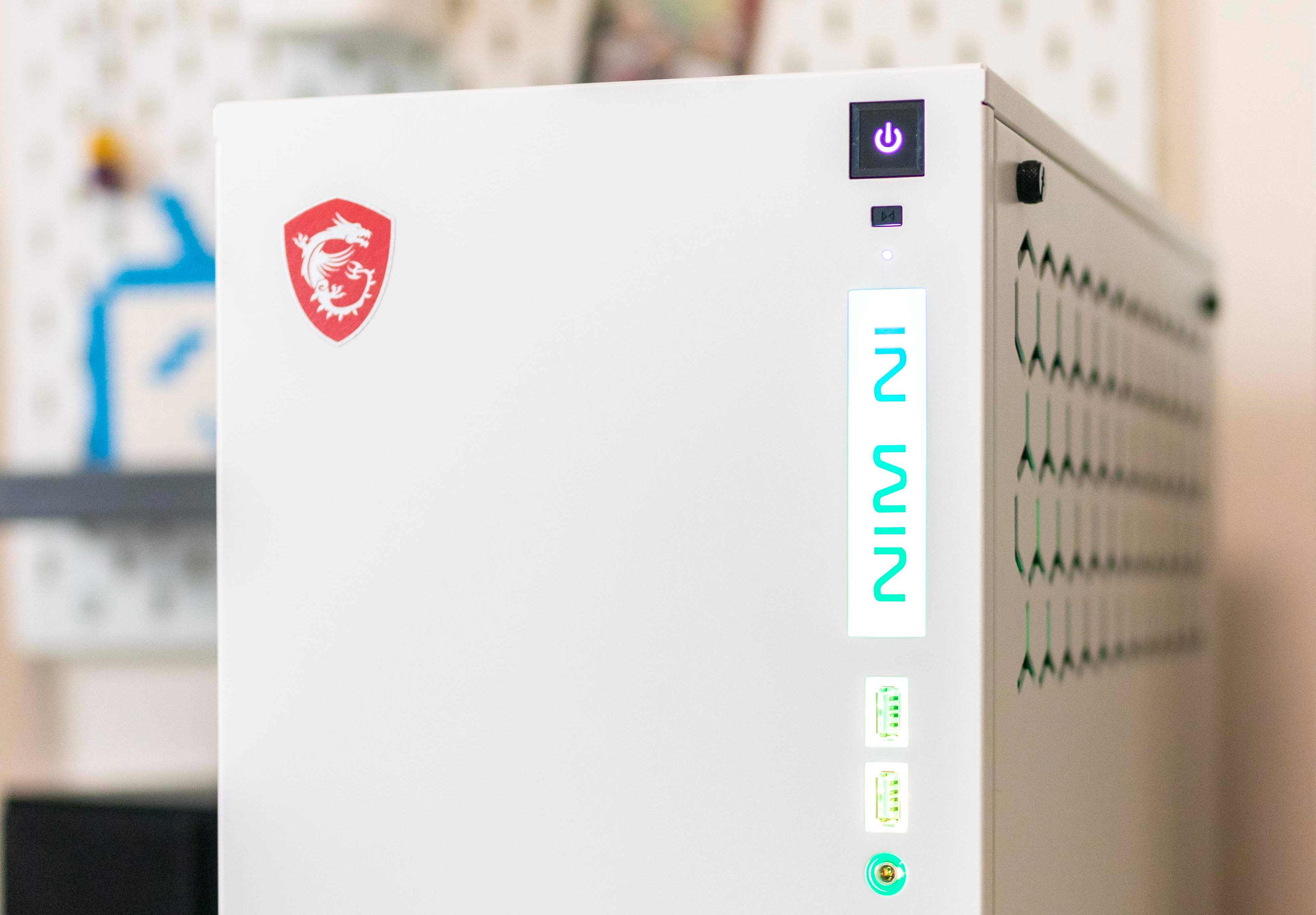

It was redrawn according to the size of the original front panel PCB of the chassis, and 20 ws2812 lamp beads were added. Lighting control and divine light synchronization can be realized by connecting to the motherboard 5vARGB interface.
