aytwartoofyoroo

GameBoyOne

Overview

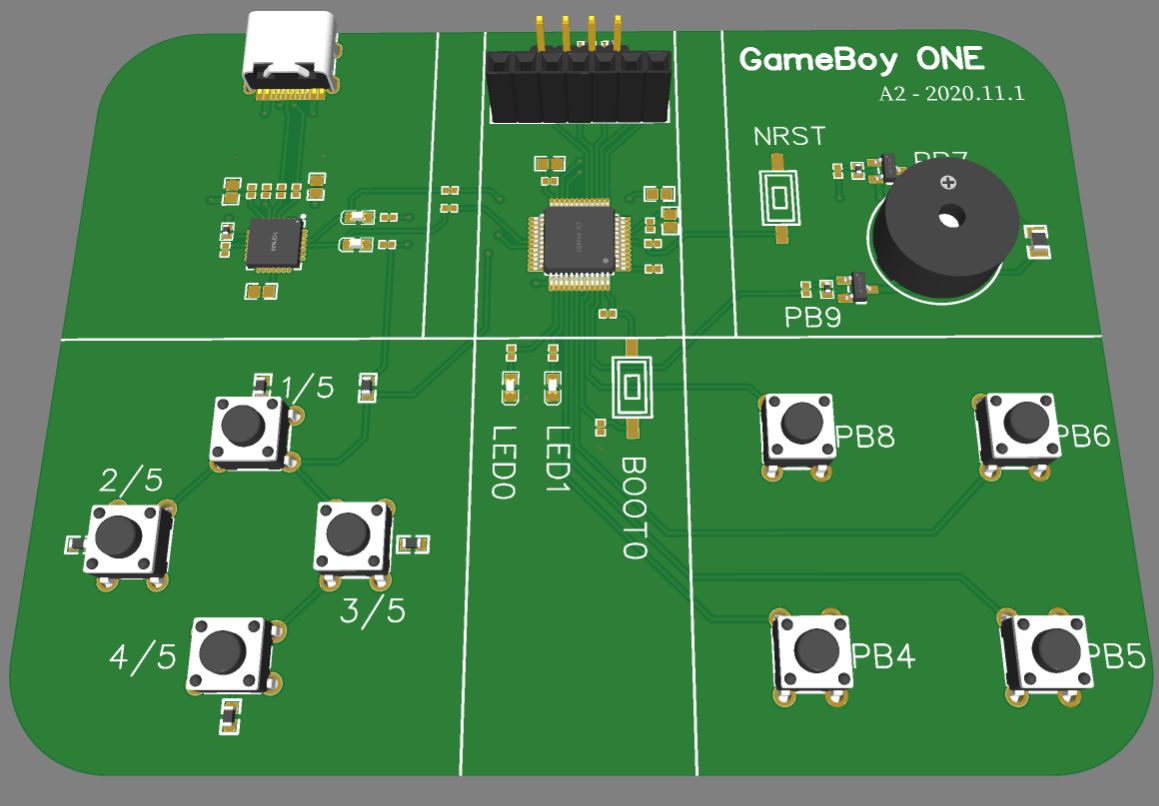

Main chip: STM32F030C8T6, 64KB Flash, 8KB RAM.

Power supply: USB Type-C, CP2102.

Download: with reset and boot0 buttons.

Debugging: UCB Type-C, CP2102 serial port output.

Input: up, down, left and right (share 1 analog port), ABCD (independent digital port), eight buttons.

Output: Two LED outputs.

Display: 128*64 monochrome OLED, IIC interface/SPI interface.

Software: Code Cloud (https://gitee.com/taoynkkx/game-boy-one)

Development plan: Snake.
