[Tuya Smart] Tuya temperature and humidity sensor 502046A

Overview

Tuya Smart - Temperature and humidity sensor integrated with Tuya smart curtain wireless remote control, local wireless control curtain switch. Why do you want to do this? I just feel that just making a temperature and humidity sensor is too monotonous, and I need to add some ingredients. I also thought about the automatic curtains made in the last training camp. There is no local control, and it will be broken when the network is disconnected~haha! So I thought of adding it to make it perfect... Inspired by life ~ Xiaomi's disc thermometer shape + the ubiquitous 86 box can be opened at will, the two are two in one ~ Dang! clang! clang! clang! Something strange was born!

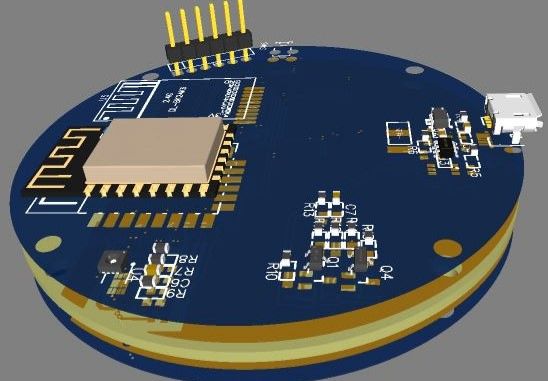

↓ 3D model

QQ picture 20210301184122.jpg

↓PCB board - APP interface

↓Test video
