Third generation mini model aircraft remote control receiver

Overview

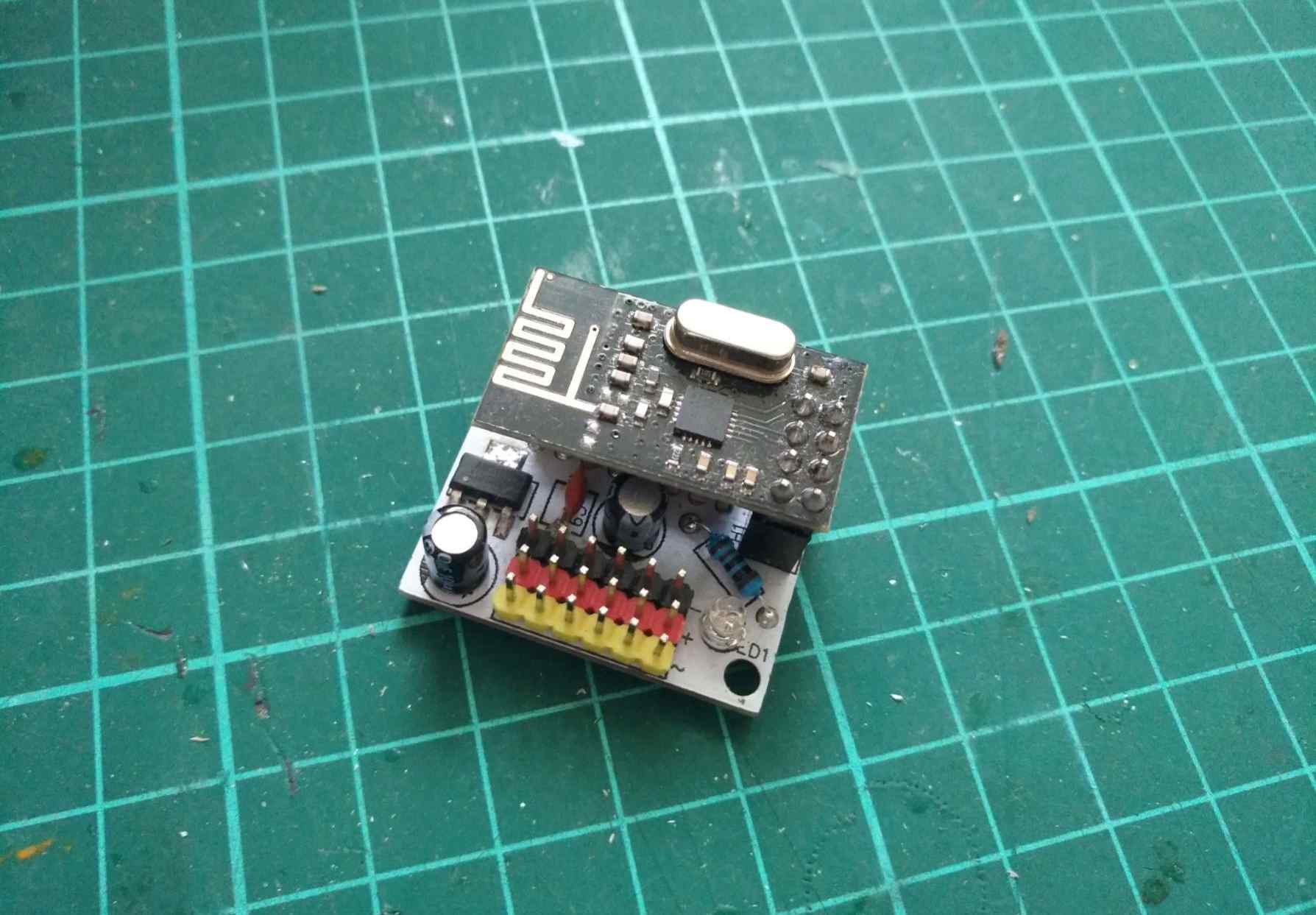

The new version of the receiver is very powerful. Through it, you can: 1. Use a wide voltage chip, which can not only be used for common 2S and 3S models, but also compatible with 1S batteries to make micro models. 2. The signal return function can return the voltage to the remote control display, eliminating the need for a voltage alarm. 3. Loss of control function, which can automatically execute the preset rudder amount when the signal is lost. 4. PPM output function, can be used as a wireless simulator, connect four-axis flight control with only 1 wire, etc. 5. PWM output, external MOS tube can directly drive brush motor, even ESC can be omitted. 6. Switch level signal output, external transistor can be directly used as electronic switch and light control. You can also save the igniter and so on. 7.………… QQ picture 20200615115416.jpg QQ picture 20200615115421.jpg
