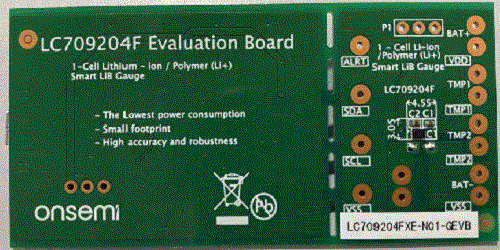

LC709204FXE-N01-GEVB: LC709204F evaluation board with pre-installed EnerCera profiles

LC709204FXE-N01-GEVB: LC709204F Evaluation board of pre-installed EnerCera's profile

Overview

Evaluation board for the LC709204F IC that measures the remaining power level of 1-cell lithium-ion (Li+) batteries used for a portable equipment etc. This product is able to reduce a fuel gauge errors by implementing its unique correction technology for measurement value of battery temperature and voltage. It is possible for this to realize high precision for measurement in battery power measurement IC that does not need a current sensing resistor.
Note 1) When you purchase LC709204FXE-01TBG and use EnerCera, please download the battery profile (LC709204FXE-N01-DATA.zip) from this site and update it. Note 2) To purchase this board , please contact LC7092s_support@onsemi.com.

* EnerCera is a product of NGK Insulators, Ltd.
Battery site "EnerCera"Solution NGK
Insulators (ngk-insulators.com)
Battery site
"EnerCera"Solution NGK Insulators (ngk-insulators.com) library

Features and Applications

Features
Pre-installed NGK EnerCera’s profile Easy starting evaluation
EC382704P-T
EC382504P-P
EC382704P-C
EC382204P-C
EC302304P-C
EC382704P-H

Applications
Battery Management for portable and wireless application
