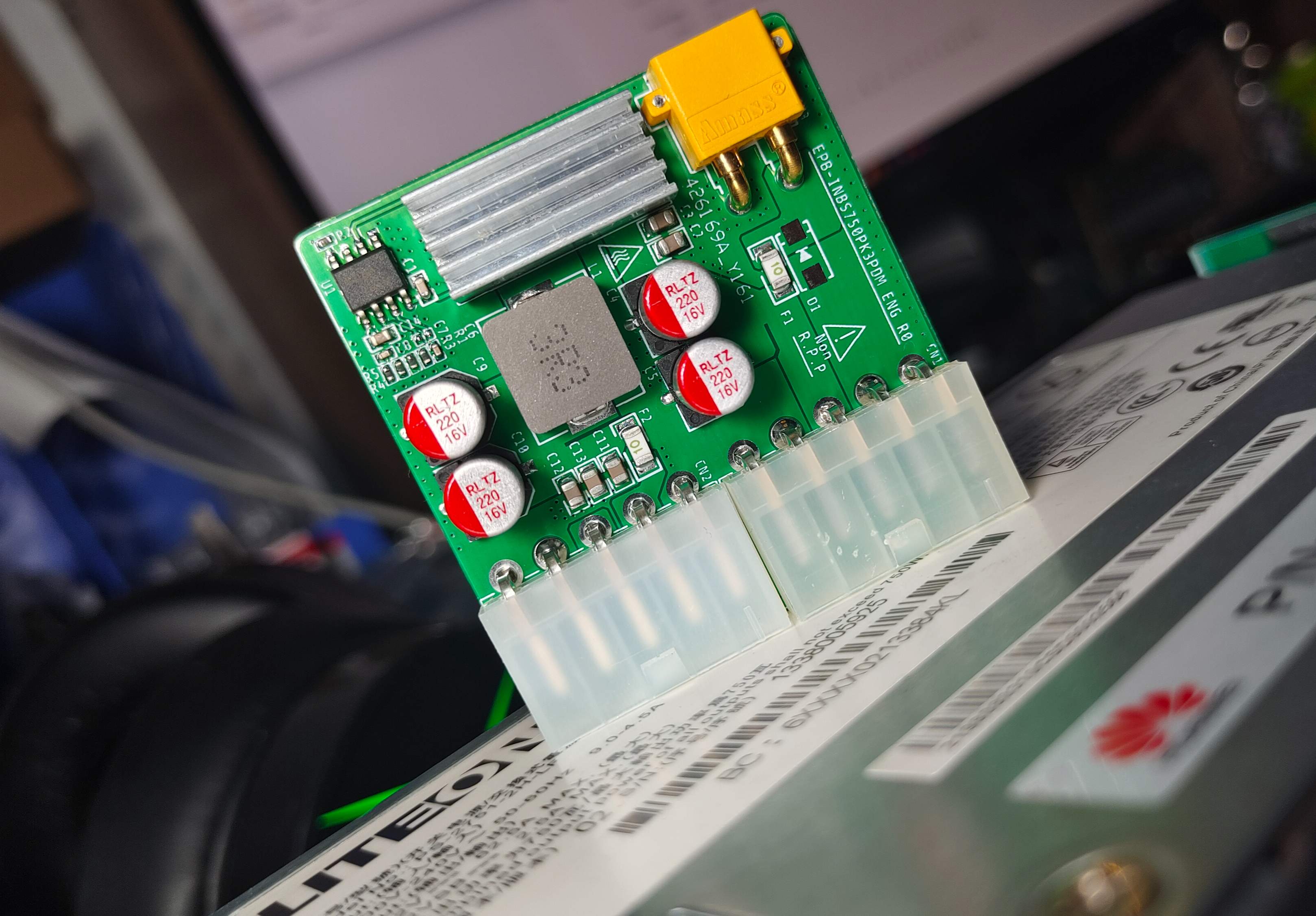

Hard drive power supply module

#EEI TECHNOLOGY 01P-HexaGon Series Project[EPB-INBS750PK3PDM]Hard disk power supply module

## Main parameters

* **Rated operating voltage: 12V**
* **+12V Maximum output current: 8.0A continuous 10.0A peak (30℃ natural cooling )**
* **+5V maximum output current: 8.0A continuous 10.0A peak (30℃ natural cooling)**
* **+5V output ripple: 50mVpp (20MHz BW) (ILoad = 10A)**

## Output Terminal

* **The output terminal is the Great Wall Dragon Power 5P hard drive module line definition**
* **[Module line purchase address](https://item.taobao.com/item.htm?id=574688389726)**

## pay attention! ! !

* **Be sure to repeatedly confirm whether the output voltage is normal before using the computer to avoid damaging the hard drive. **

## Copyright Statement

* **The copyright of this project belongs to EEI TECHNOLOGY electronic studio. **

* **This project is under the CC-BY-NC-SA license (i.e. Creative Commons-Attribution-Noncommercial-Share Alike) and unauthorized deductions (interception of parts of the original project or modifications based on the original project) are prohibited The new project that is born is called "deduction"). Even if it is authorized, the project must be shared in the same way before it can be deduced (the signature and source of the original author need to be marked). If you ignore the open source agreement and conduct commercial activities, this work will The office will hold them accountable and crack down severely! Please consciously abide by the open source agreement and jointly maintain the open source environment. **
* **This project is for DIY and learning purposes only. It is prohibited to use this project for any commercial activities (sales, dissemination, copying for profit), including but not limited to the above three points. **
*
* **Notice! ! This product is not authorized for sale by any organization or individual. If authorized, it will be announced here. The studio refuses to provide after-sales and technical support for products purchased through other channels. **

## Test chart

* **Output ripple +5V (ILoad = 10A)**
![image.png]
