DER-881 - 14.5 W Dual Output Isolated Flyback Power Supply Using TinySwitch-4

DER-881 - 14.5 W Dual-Output Isolated Flyback Power Supply Using TinySwitch-4

Overview

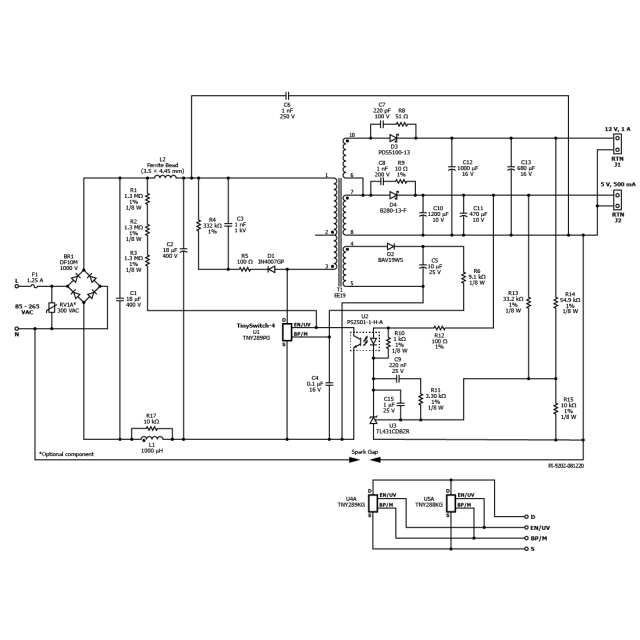

This engineering report describes an isolated flyback converter designed to provide nominal output voltages of 12 V, 1 A and 5 V, 500 mA over a wide input voltage range of 85 VAC to 265 VAC . This adapter uses the TNY289P from the TinySwitch-4 series of ICs and is available in D and K packages on the top layer. The document contains complete power supply specifications, bill of materials, transformer construction, circuit schematic and printed circuit board layout, as well as performance data and electrical waveforms.

Blockdiagram

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
