8yp7Z

DCDCtps5433

Overview

Readme

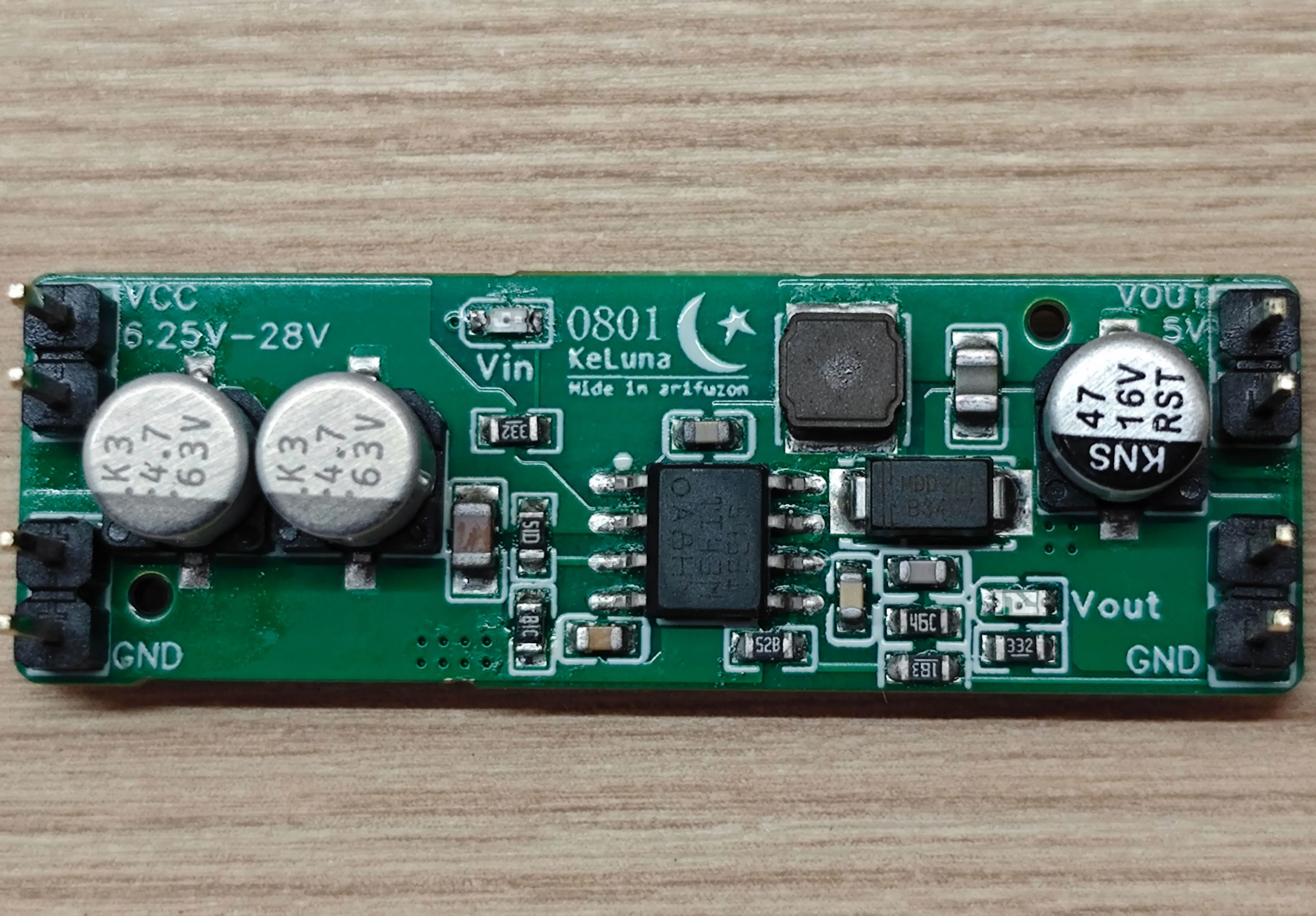

Note: Due to the limited number of components and the small board size, component identification numbers are not included.
Recommendation: Use LCSC EDA soldering aids for soldering assistance, or add component identification numbers before soldering.
Note: This DC-DC module has a fixed 5V output; the actual output is slightly higher, approximately 5.08V. If you need to adjust the output voltage, check if a higher voltage-rated output capacitor is required.
Replica Cost: Less than 10 RMB
