ESP32S3 smartwatch development simplified version

Overview

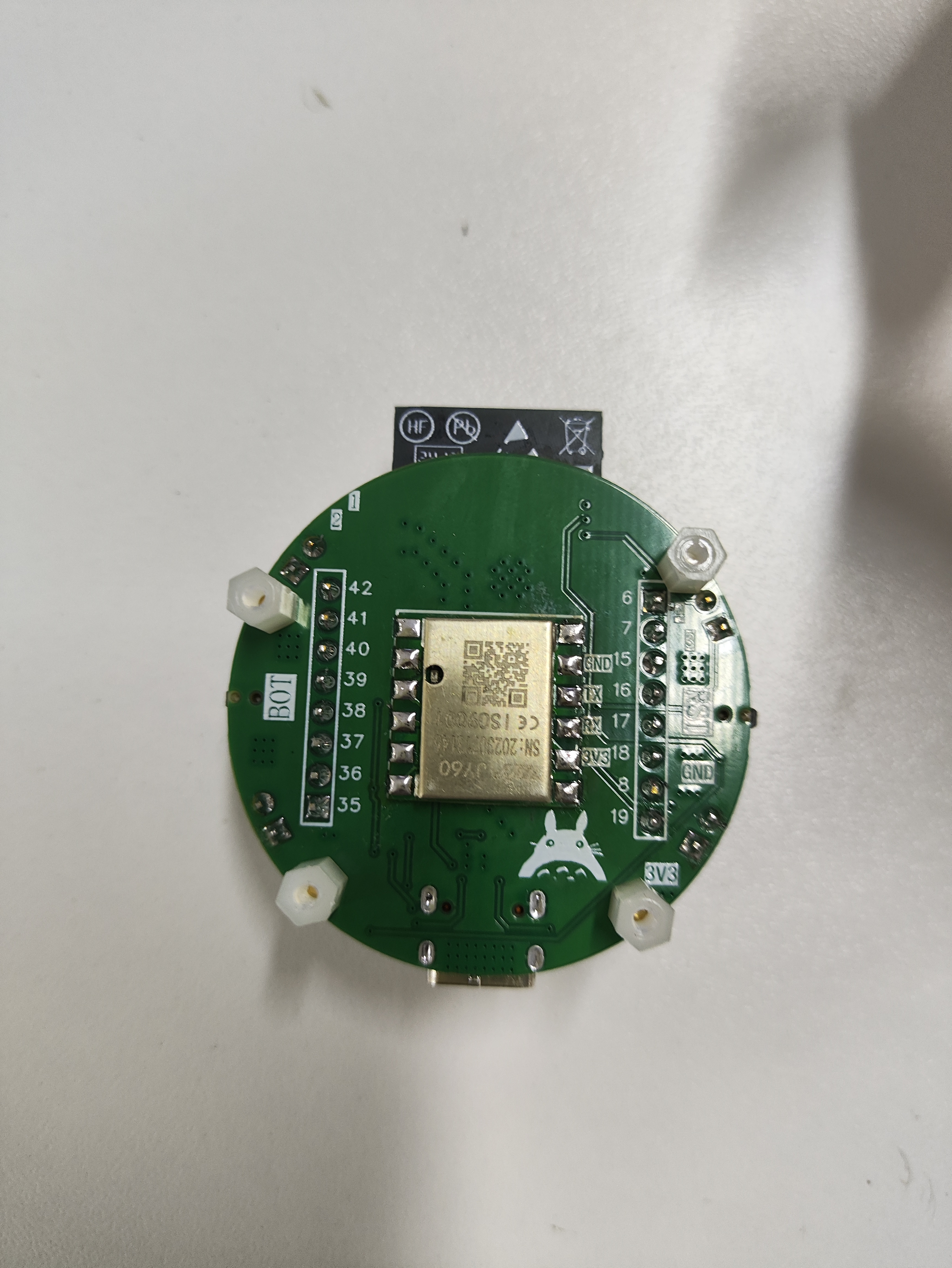

It uses an ESP32S3 and a JY60 six-axis gyroscope
with a Type-C interface, supporting one-click serial download.

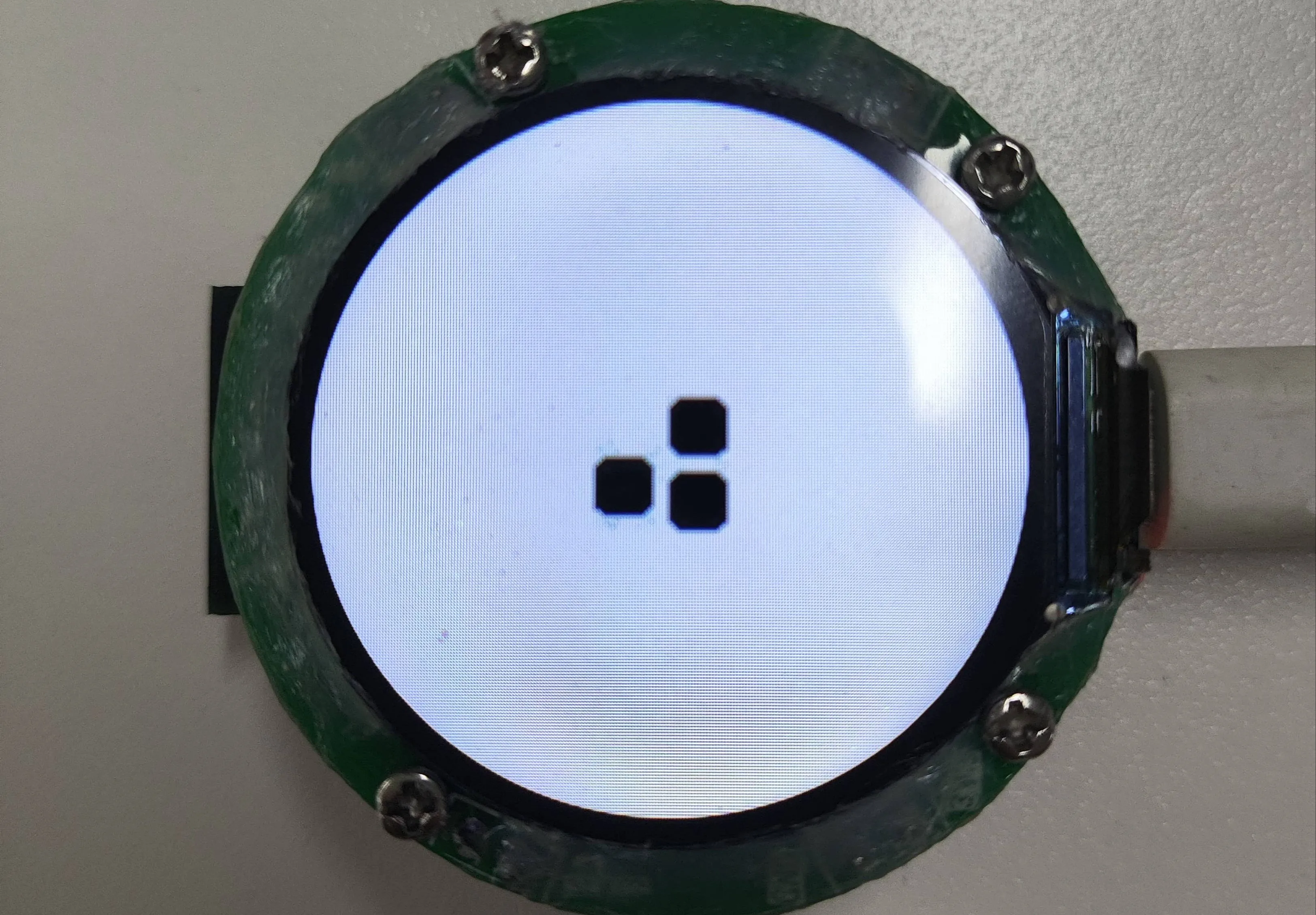

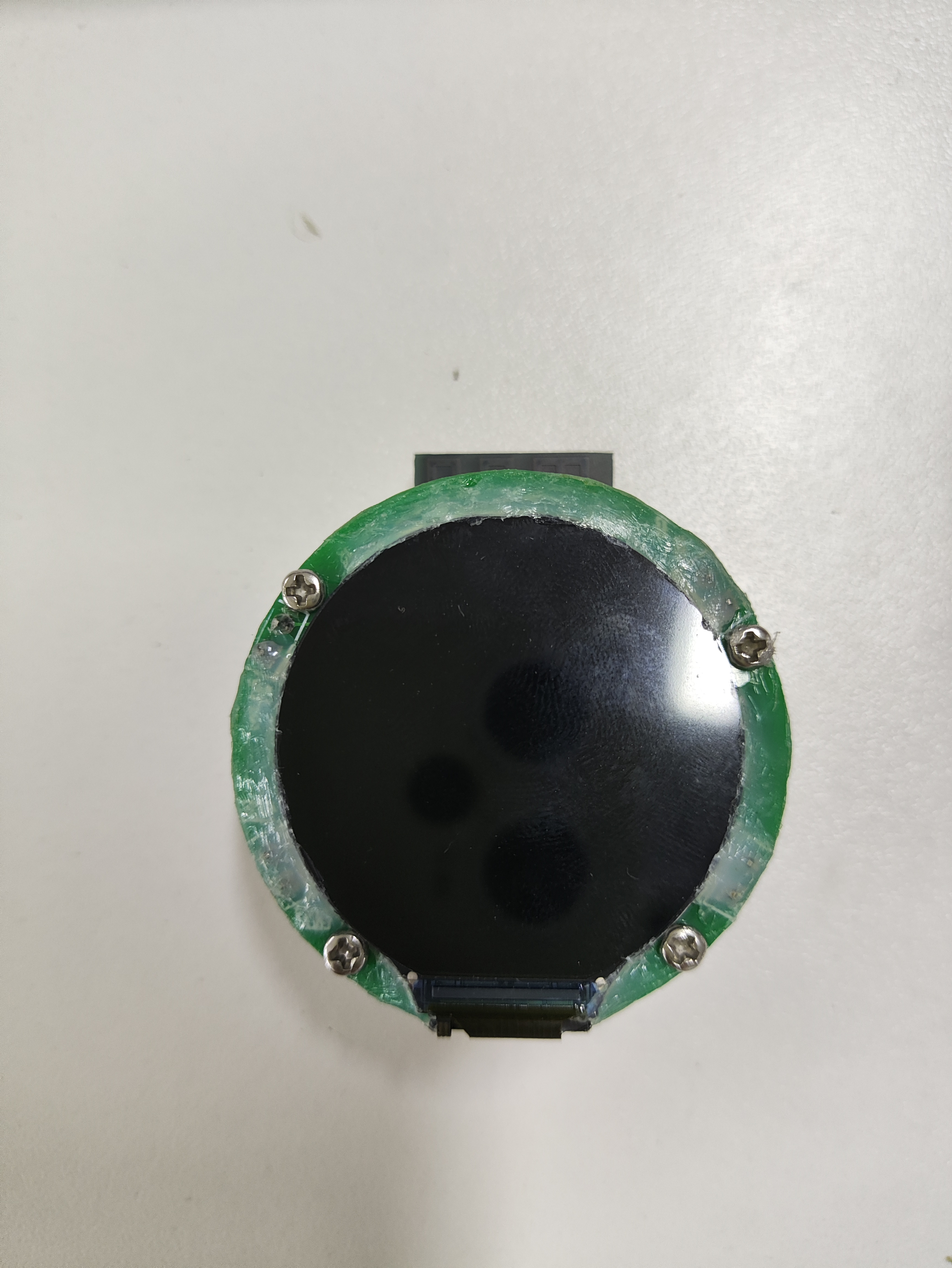

A circular screen is used for display.

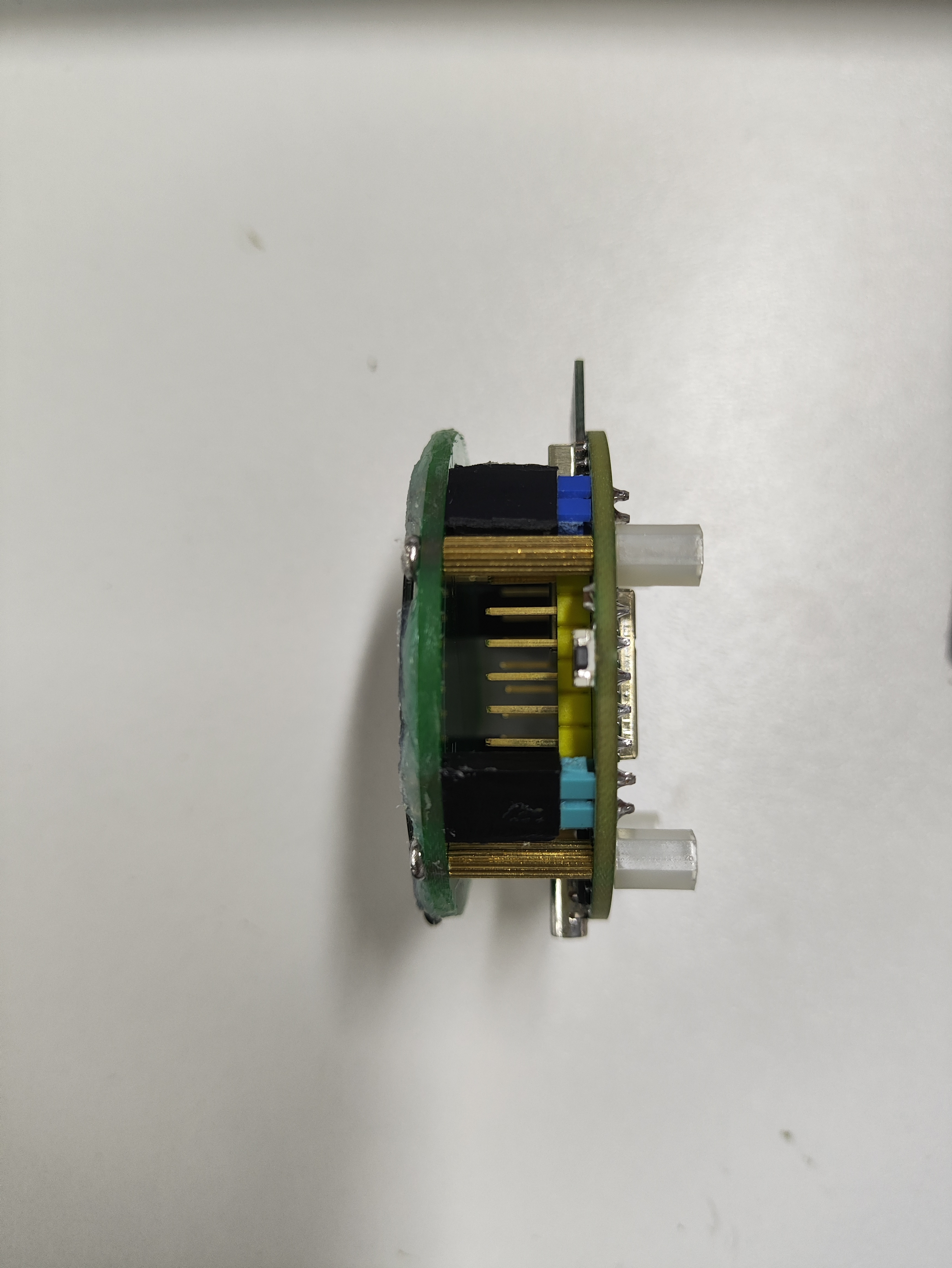

Two PCBs are connected using headers and sockets. If it feels unstable, four 11mm M2 copper pillars can be added
; excess pins are brought out using headers for future expansion
. The appearance is decent, haha. Most importantly, soldering is easy,
almost effortless, making it suitable for beginners' first development learning.
