T48 ISP adapter lower pressure seat

Overview

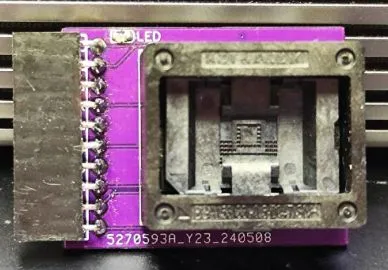

The T48 ISP board's BGA153 adapter socket
speed is consistent with the official specifications, reaching a maximum of approximately 20MB/s (at a clock frequency of 40MHz). It supports 1.8V/3.6V, 1-bit/4-bit modes.
The VCC and VCCQ circuits are separate
for ease of modification. The project has been transferred to the LCSC EDA professional

board, and the capacitor and resistor values are already labeled, all being 0603 specification.
LEDs are optional (if not installed, neither the LEDs nor resistor R2 are needed).

Design Files
