Portable outdoor fishing air pump

Overview

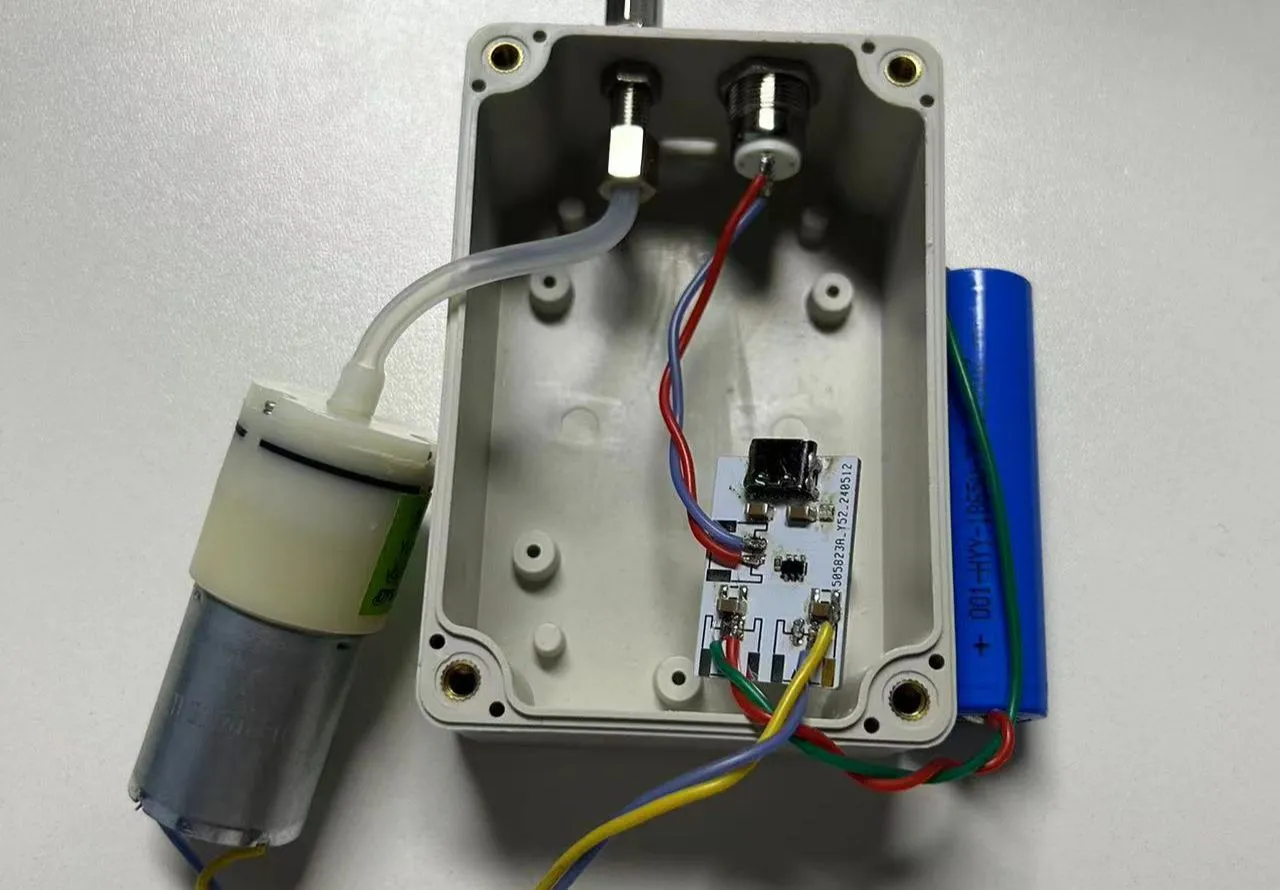

This project involves a rechargeable air pump with adjustable speed settings. It is lightweight, portable, and boasts a long battery life, ensuring worry-free oxygen supply during extended outdoor activities.

The entire unit is housed in a waterproof box and supports 3-6V motors.

PDF_Portable Outdoor Fishing Air Pump.zip

Altium_Portable Outdoor Fishing Air Pump.zip

PADS_Portable Outdoor Fishing Air Pump.zip

BOM_Portable Outdoor Fishing Air Pump.xlsx

94100

Infineon MiniWiggler 3-in-1 Downloader

Downloader for Infineon series chips suitable for the National Undergraduate Intelligent Vehicle Competition

The schematic diagram references the full PCB structure of the Infineon official development board's onboard downloader

, using copper pillars for assembly, conforming to JLC free-to-use technology. For free-to-use, please select 1.0mm for easy cutting.
It supports DAP and JTAG downloads, and also has a separate serial port interface with overcurrent protection, ESD protection, and support for external I/O voltage.
There is an RGB light indicating the working status: red indicates power failure of host computer control/USB not connected to the computer/load overcurrent protection/no external power supply; green indicates connection status; blue indicates simulation.
The upper right corner switch toggles the serial port definition for debugging the core board.
The first switch in the lower left corner toggles the I/O voltage to built-in 3.3V/external power supply.
The second switch in the lower left corner toggles JTAG download mode/DAP download mode (different interfaces are required; JTAG and DAP download interfaces are separate).

Assembly requires a bill of materials:
M2x3mm screws -----------4
M2x3 double-through knurled screws with the same pin ----- 4
M2x6+3 single-through knurled screws with the same pin --

Note: For simple bull mount mounting, the leads need to be cut. Firmware is attached.

You can purchase the finished product using FT_Prog. [Link: https://m.tb.cn/h.g5u02IG?tk=oChXWzqgCRQ](https://m.tb.cn/h.g5u02IG?tk=oChXWzqgCRQ)
If the link is invalid, search for the user; the username is also xljxlj.

Firmware and flashing tool.zip

PDF_Infineon MiniWiggler 3-in-1 Downloader.zip

Altium_Infineon MiniWiggler 3-in-1 Downloader.zip

PADS_Infineon MiniWiggler 3-in-1 Downloader.zip

BOM_Infineon MiniWiggler 3-in-1 Downloader.xlsx

94101

Bluetooth mini fan

Bluetooth mini fan based on STM32F103C8T6

This is a Bluetooth mini fan based on the STM32F103C8T6, using the HC_05 Bluetooth module. The motor speed is controlled by adjusting the PWM. It is simple to make and the program is open source.

Summer Bluetooth Mini Fan.zip

video.mp4

PDF_Bluetooth Mini Fan.zip

Altium Bluetooth Mini Fan.zip

PADS_Bluetooth Mini Fan.zip

BOM_Bluetooth Mini Fan.xlsx
