HC32F460JEUA Minimum System Board

Overview

I. Introduction:

HC32F460JEUA minimum system board, dimensions 53.36mm x 22.86mm (2100mil x 900mil), pin pitch 15.24mm (600mil).
TPS63001 buck-boost switching power supply provides 3.3V power. CH213K ideal diodes provide reverse polarity protection. Optional QSPI FLASH on the bottom panel
includes a reset button, BOOT0 (MD) button, user button -PH2, and user LED -PC13.

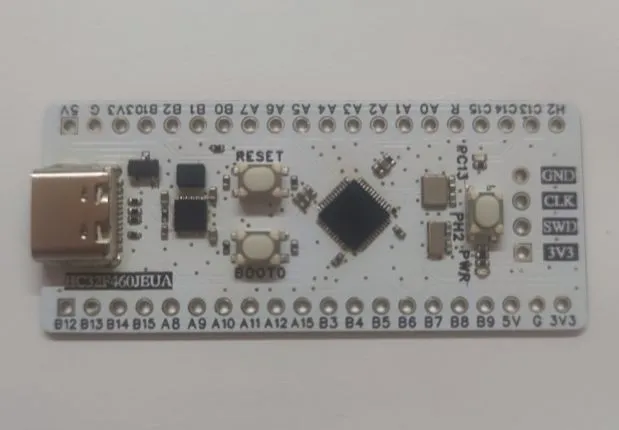

See schematic diagram for pin connections. II. Appearance Diagram.

III. Issues
: None.
IV. Update:
v1.0-20240404 (

First Version)
