DAPLinkMini

Overview

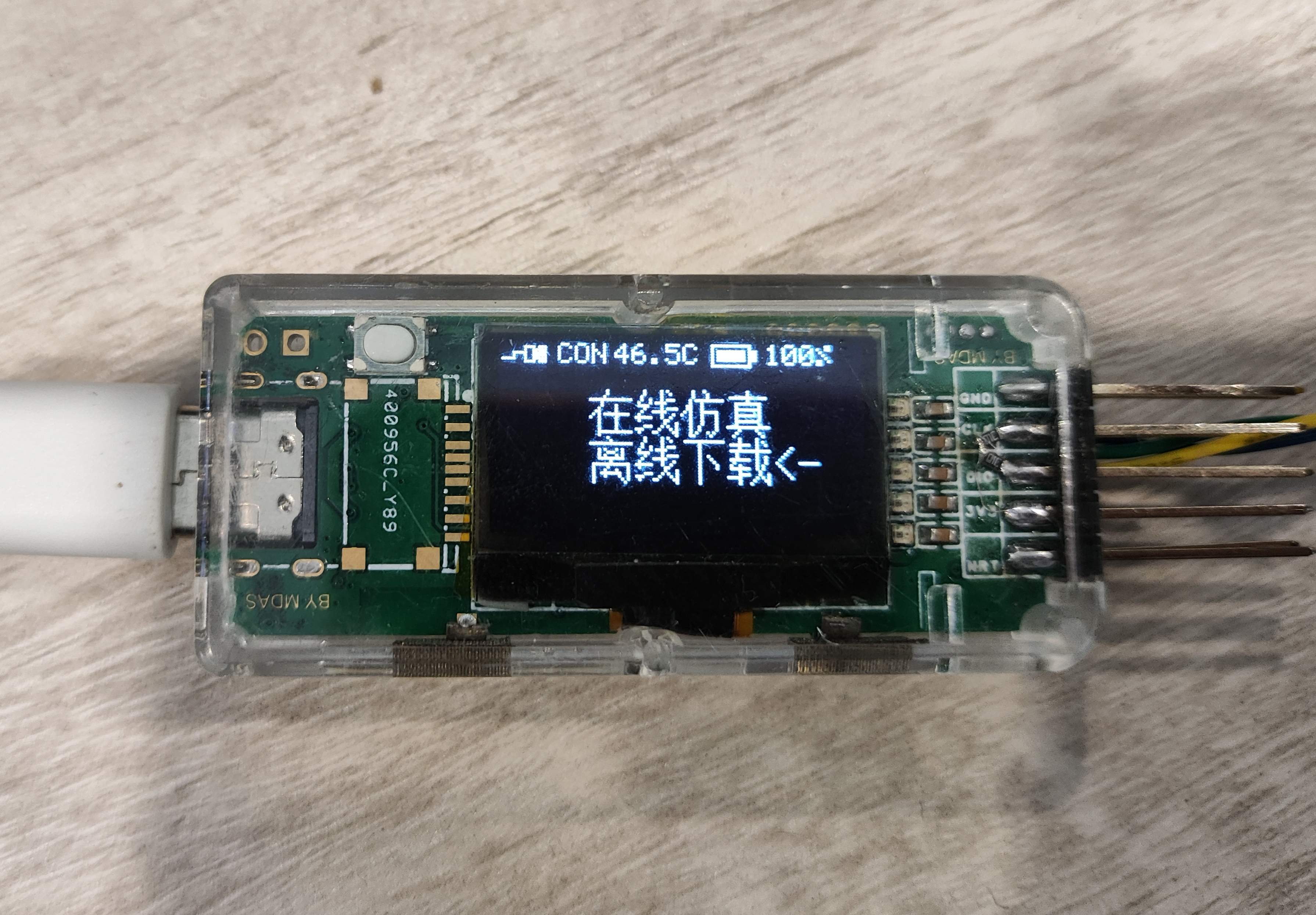

First, here's the finished PCB. It's a free gold-plated 4-layer board from LCSC (JLCSC NB).

My J-Link's USB port broke, so I wanted a working debugger. I also occasionally need to download files offline. I found the original author's project, which seemed perfect for me, so I replicated it.

Since I couldn't find the original OLED separately, I just used an extra module from before, modified it, did some wire work, and made this.
