Yangzhou University Slender West Lake Campus Map NFC Card

Overview

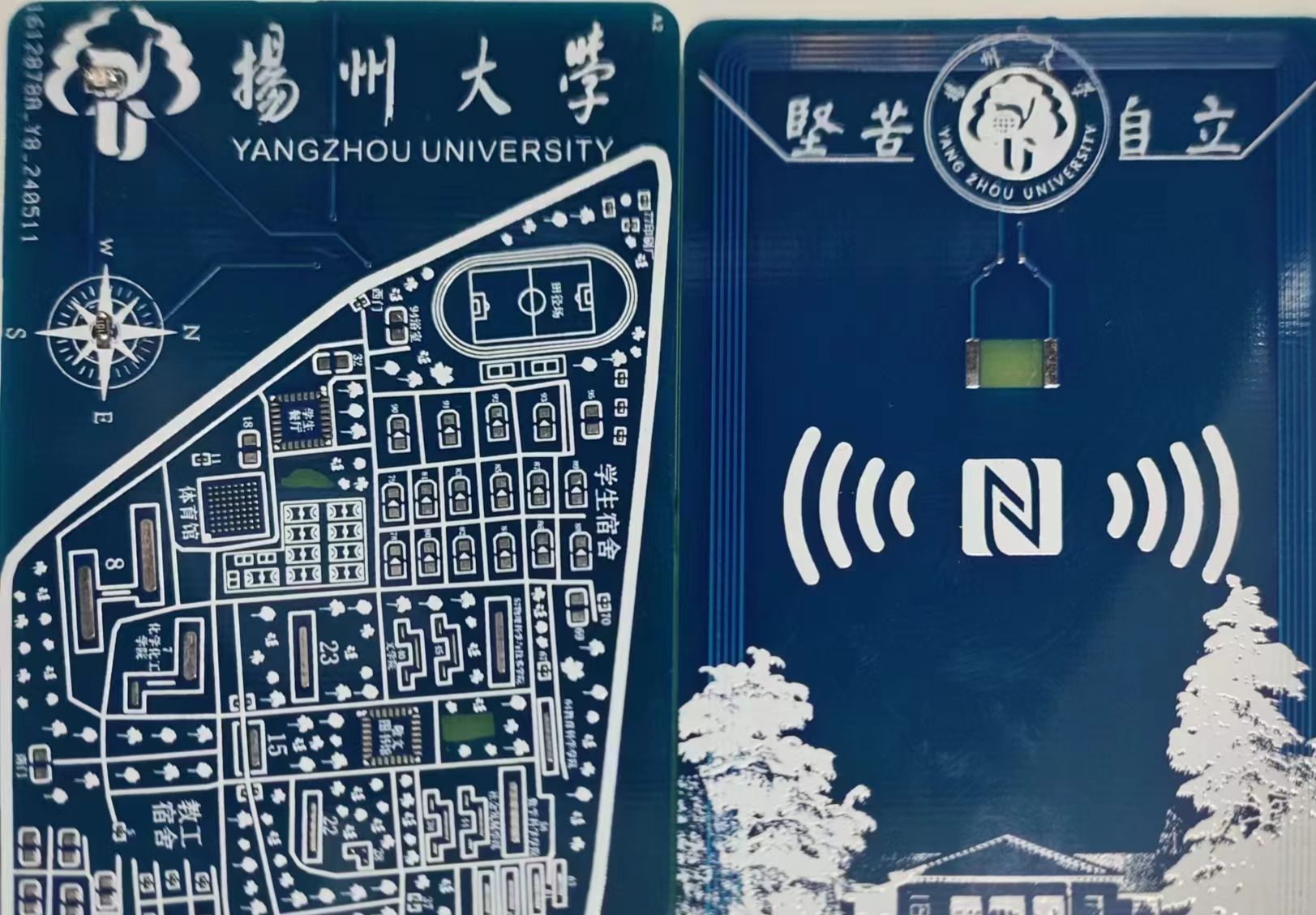

The description is nothing special; it's all borrowed from other community members. The map was drawn bit by bit from Gaode Maps. My aesthetic sense isn't great, but I've done my best to make it look like this. You can customize it yourself.
For the chip, you can use a COB213 chip or a CUID/UID, but it might not have campus card functionality. You can extract the chip from your campus card; you can search online for tutorials.

PDF_Yangzhou University Slender West Lake Campus Map NFC Card.zip

Altium_Yangzhou University Slender West Lake Campus Map NFC Card.zip

BOM_Yangzhou University Slender West Lake Campus Map NFC Card.xlsx
