Cherry 1800 -375-V02

Overview

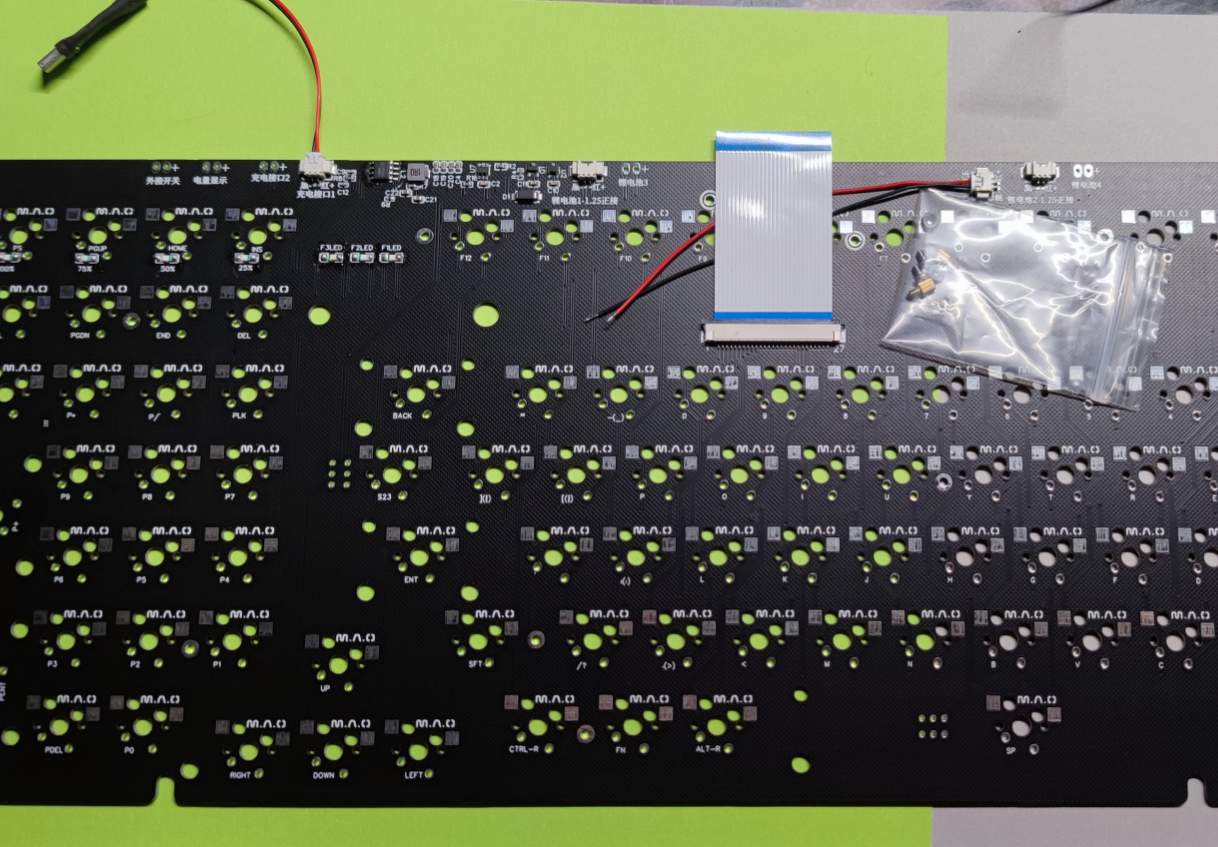

The onboard charging module and overcharge/overdischarge protection module are
included

. The slide switch is located below the spacebar and requires removing the keycap to turn it on. It
has one external switch slot and uses a 1.25mm pitch female connector. An 8mm self-locking switch can be used. After soldering 1.25mm pitch wire, it can be fixed to the casing.

The schematic is imported from the standard version; the silkscreen position is slightly offset. Please adjust it slightly when ordering.

Taobao link:
