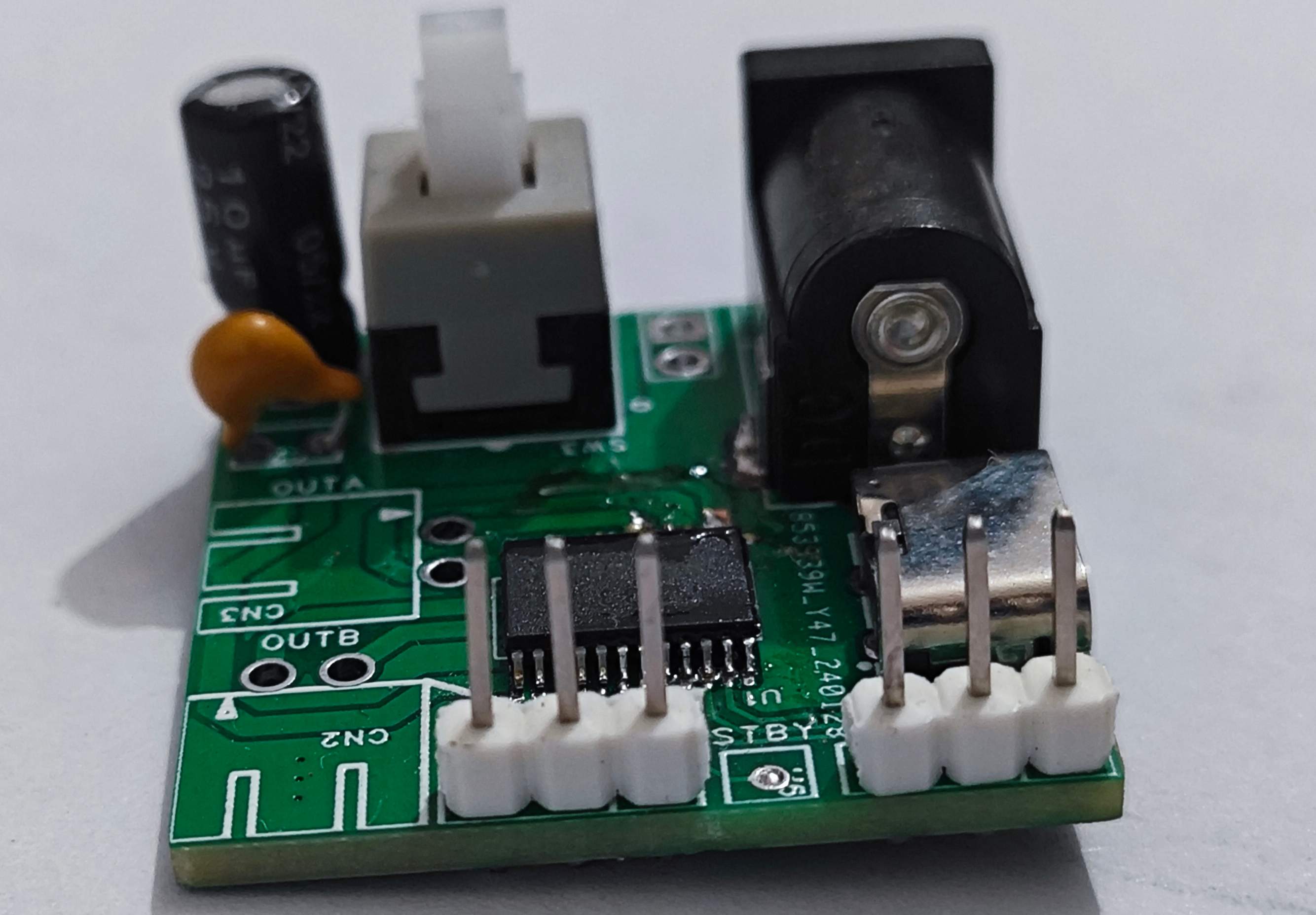

TB6612 driver board

Overview

Engineering Principle:
The TB6612 driver board operates on the control principle of an H-bridge circuit. An H-bridge circuit is a circuit structure that controls the direction and speed of a motor. The TB6612FNG chip integrates two independent H-bridges, capable of controlling two DC motors.
Its working principle primarily involves controlling the pin input signals of the TB6612FNG chip to control the motor's direction and speed. By inputting PWM signals and direction control signals, the TB6612FNG can control the motor's speed and direction.
Function:
The TB6612 driver board controls the movement of DC motors, enabling direction, speed, and stopping.
