STM32F407VGT6 Minimum System Board

Project Name: STM32F407VGT6 Minimum System Board

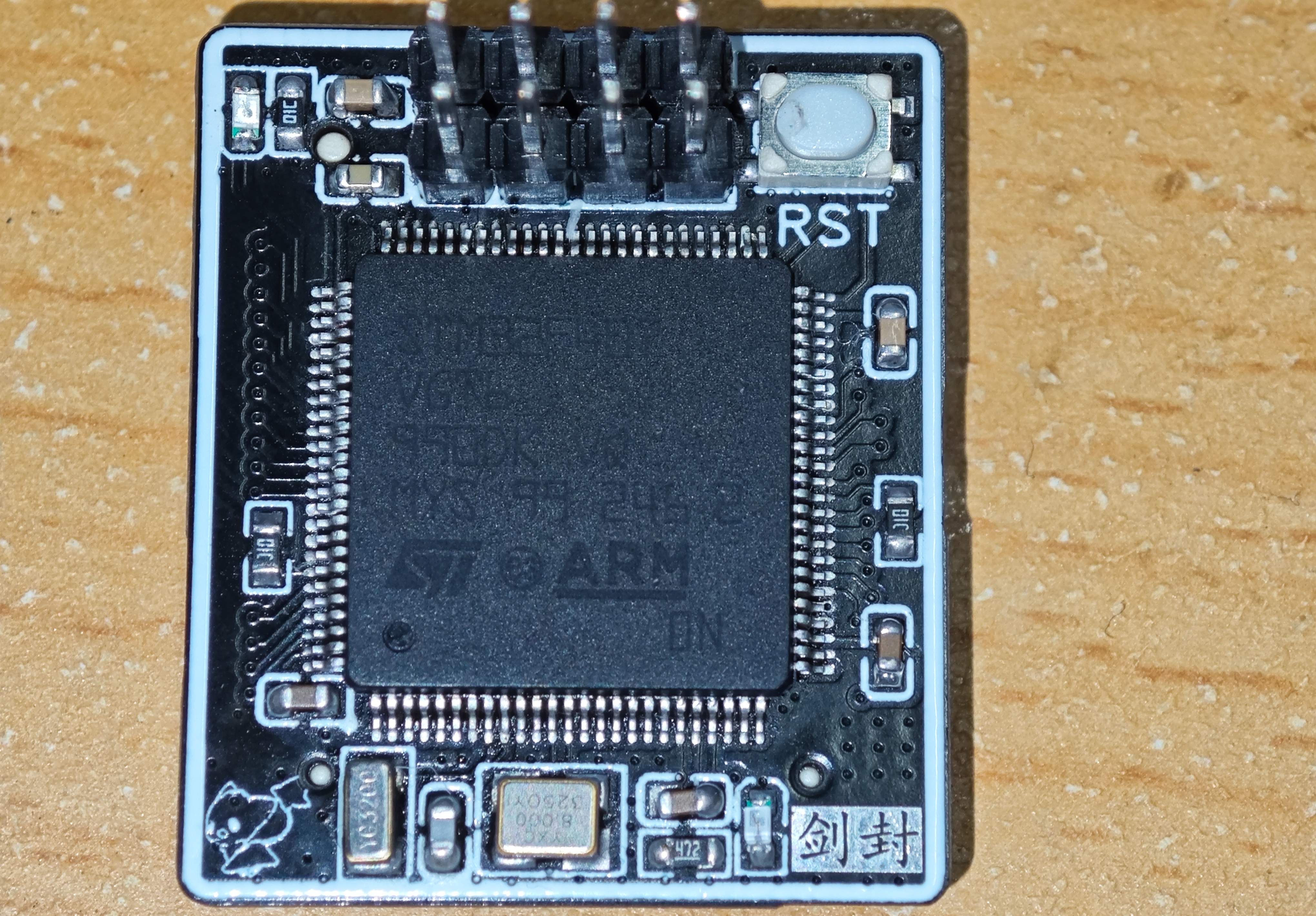

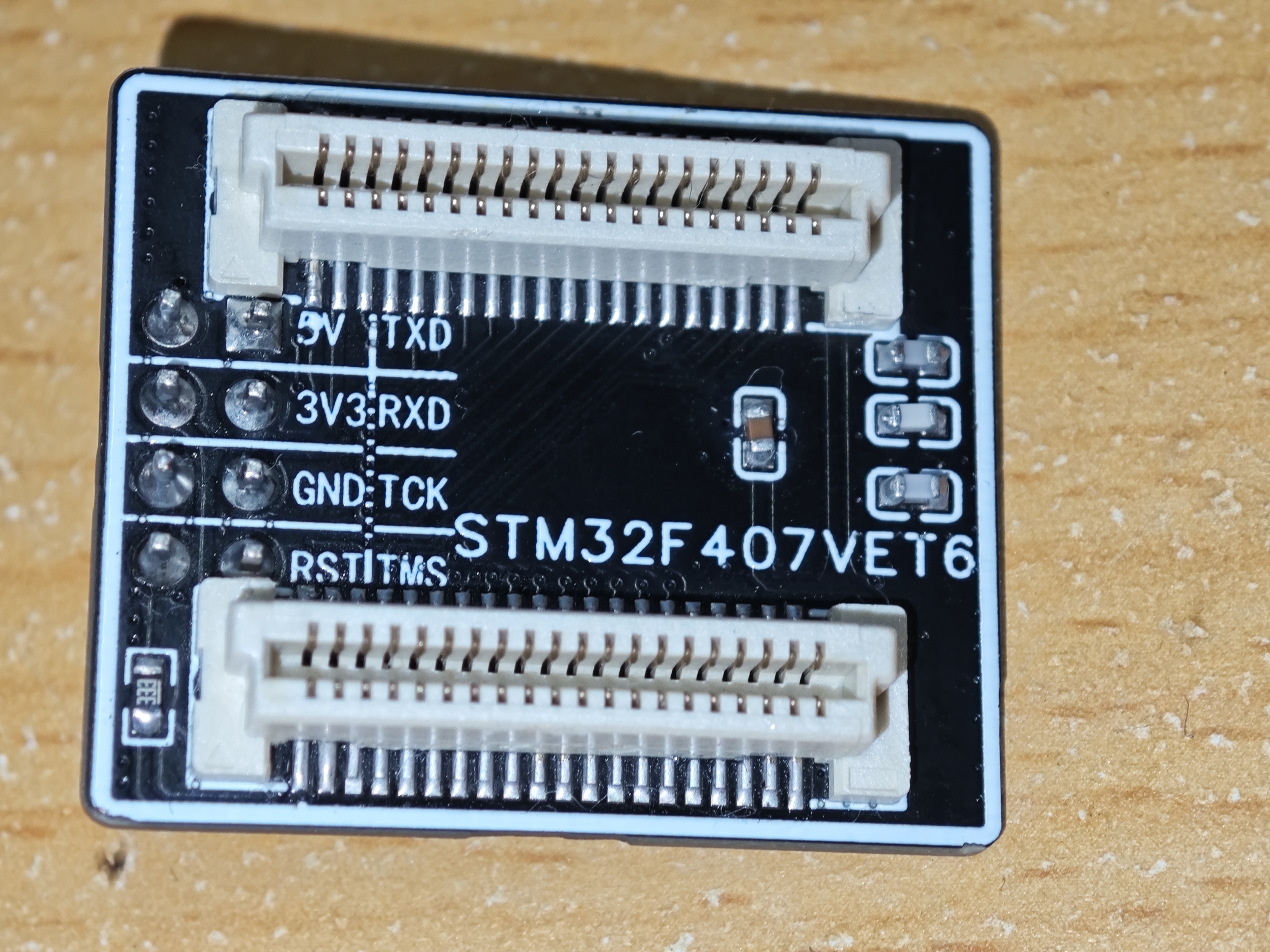

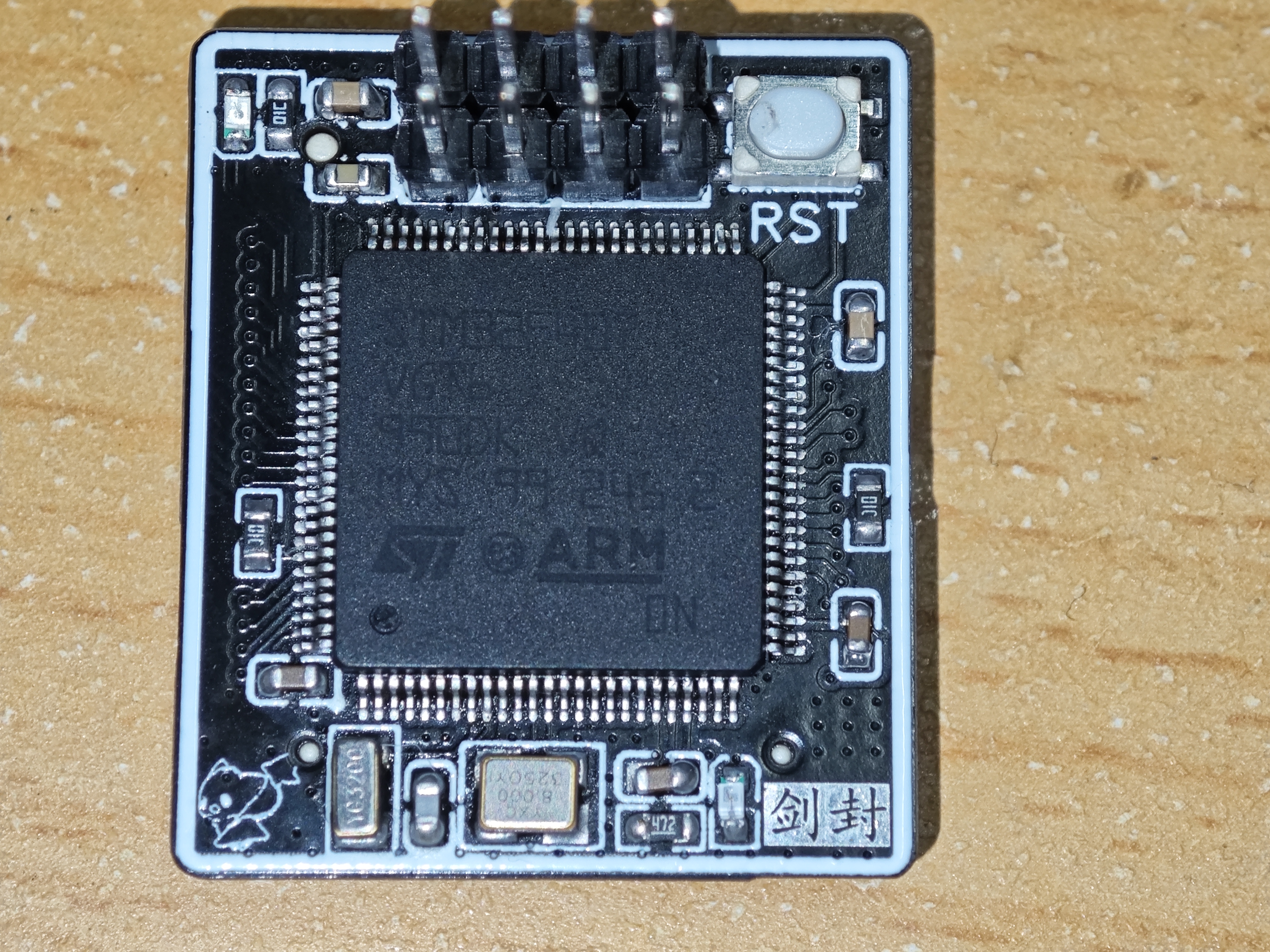

Project Description: This is a minimum system board based on the STM32F407VGT6 microcontroller, using 0.8mm BTB connectors for connectivity. The system board features a compact design, exposing all pins of the STM32F407VGT6 microcontroller, making it easy to integrate into various applications. It employs a 2-layer board design. Only 5 resistors and capacitors are present on the back of the connector, making soldering very convenient.
Key Features:

Uses the STM32F407VGT6 microcontroller, offering high performance and rich peripheral functionality.
Uses 0.8mm BTB connectors for easy connection and integration with other devices.
Compact size design suitable for space-constrained applications.
All pins are exposed, providing flexible expansion and customization capabilities.


Project Goals:

To design and release open-source STM32F407VGT6 minimum system board schematics and PCB layouts.
To encourage participation and contributions from the open-source community to further improve and refine this project.


Important Notes:

The 5V pin of this board cannot power the microcontroller. A custom-designed baseboard is required to step down the voltage to 3.3V to power the microcontroller.
Users assume all risks and responsibilities arising from the use of this system board.
