USB audio interface based on PCM2912A

Overview

Functionality:

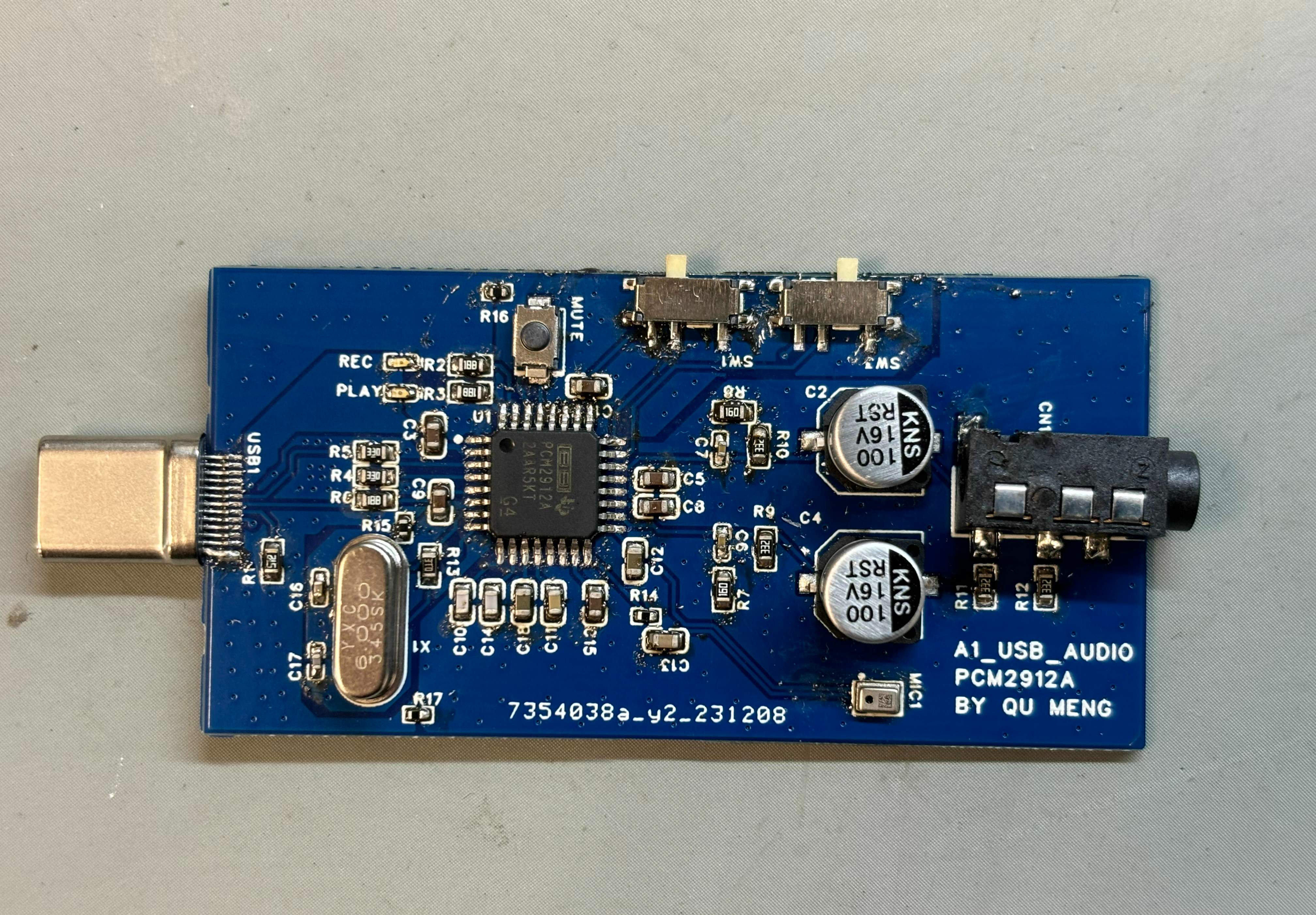

A USB Type-C digital headphone jack that outputs a headphone signal via a 3.5mm headphone jack. The PCB board has a built-in MEMS microphone for recording.

Usage Scenarios:
Mobile phones, computers, and any Type-C

device. Principle:
The PCM2912A is a USB digital audio source interface that converts USB audio signals to analog signals. It supports both upstream and downstream signals.
