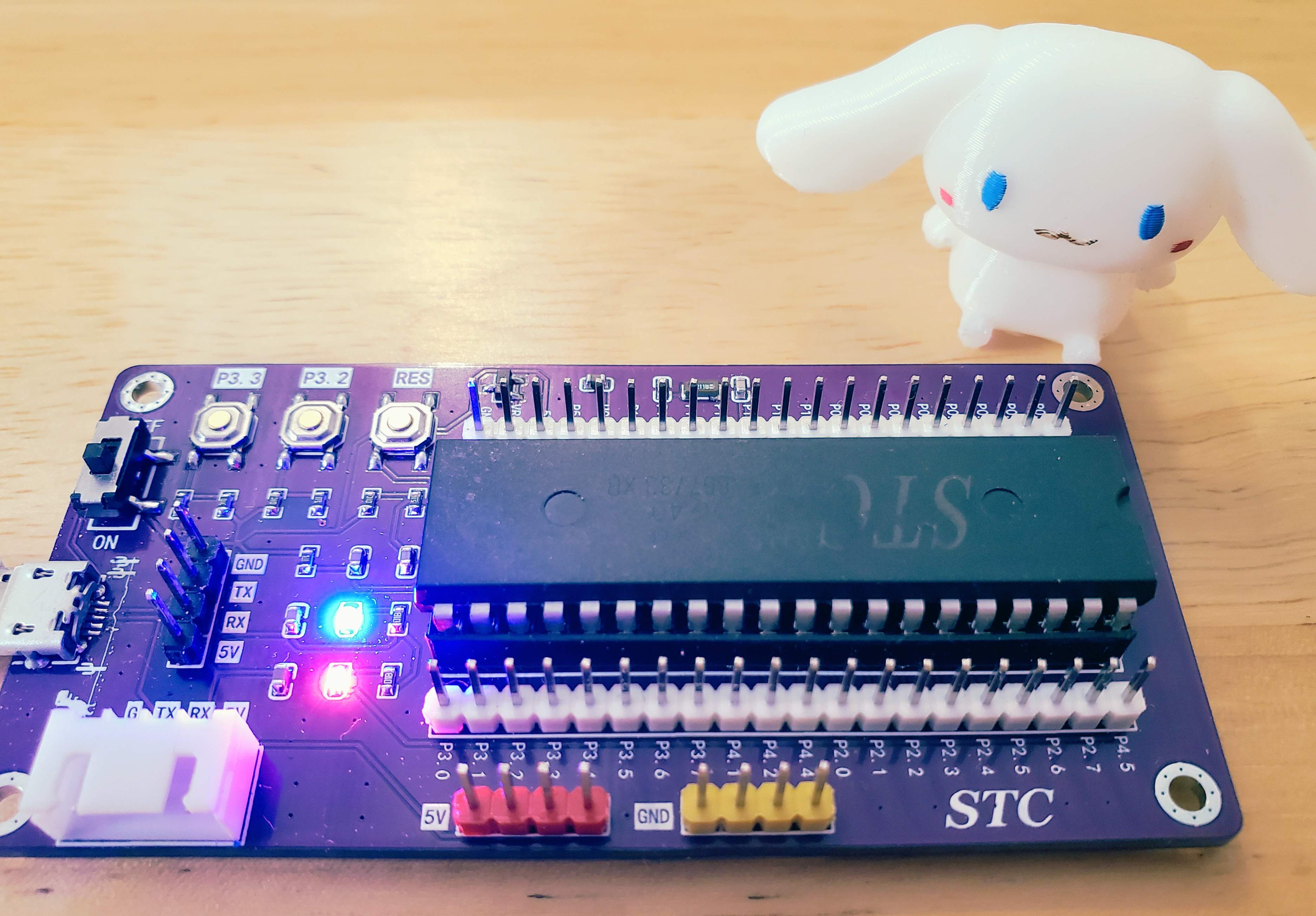

STC8H8K64U-DIP40 Development Board

Overview

The STC8H8K64U-DIP40 chip
is mostly a surface-mount component.
Keil simulation

reference circuits are available
at: 1. https://oshwhub.com/xiezhaoyan/stc8h8k64u-dan-pian-ji-zui-xiao-xi-tong-100-zhi-cha-yuan-jian
2. https://www.stcmicro.com/datasheet/STC8H-cn.pdf

Press and hold the P3.2 button to power on and enter download mode. Serial port download is also possible.
