STC8H8K64U core board

Overview

This document describes

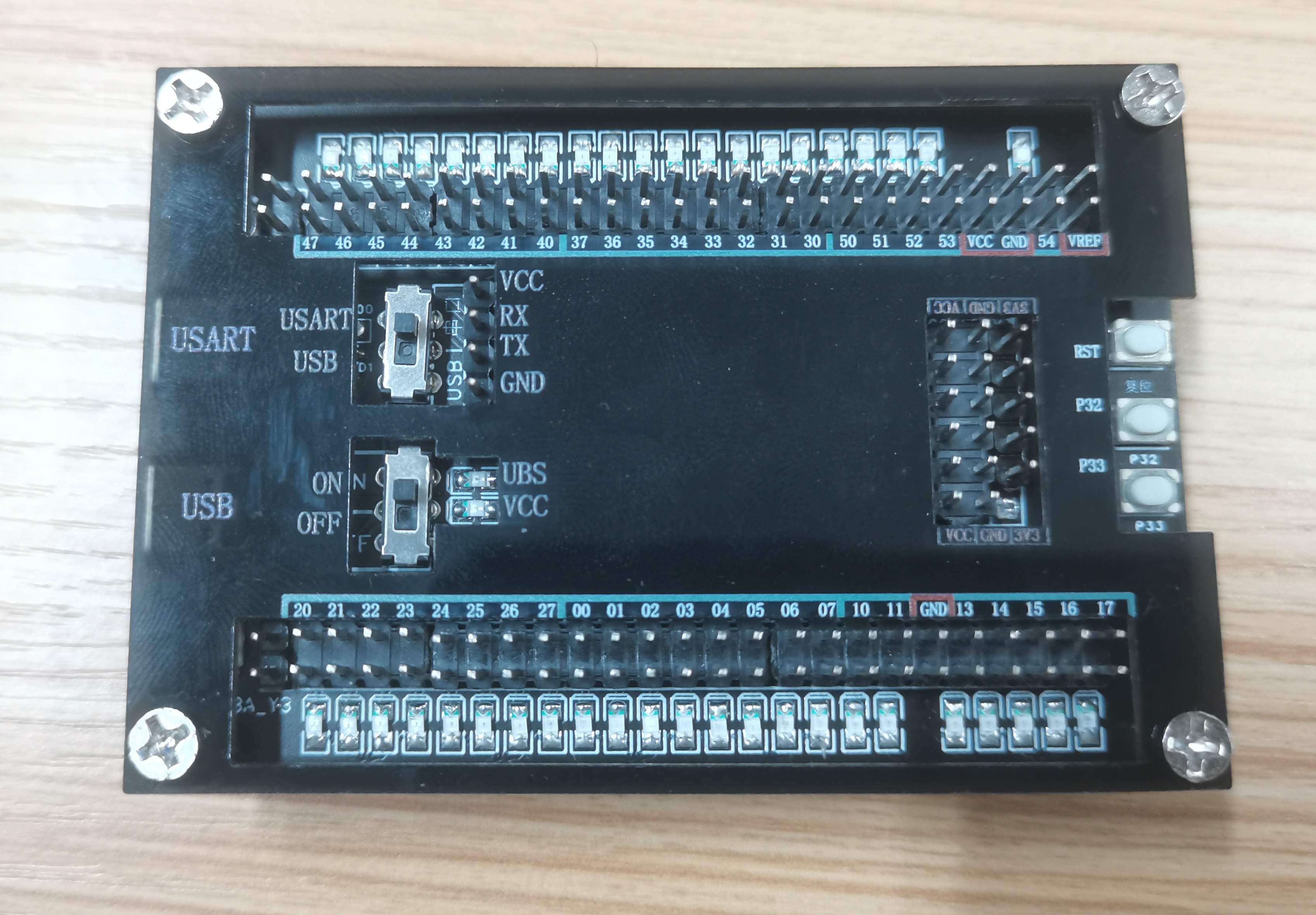

the design of a minimum system board for the STC8H8K64U. Each I/O pin has an LED for easier pin status monitoring. It utilizes dual Type-C ports for serial or USB download functionality.

Features of the chip
include: ● Wide operating voltage range: 1.9~5.5V
● 60 I/O pins
● Common functions such as IIC, SPI, and UART
● Even the most expensive model (LQFP64) costs only 2.5 RMB.
The following is the internal block diagram

and schematic of the STC8H8K. The design is

based on the STC8H datasheet, with all pins brought out for easy external function verification.

A physical demonstration is also provided.
