IFCB-0402ER3N3

Description
General Fixed Inductor, 1 ELEMENT, 0.0033 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT
CategoryPassive components    inductor
File Size60KB，1 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

IFCB-0402ER3N3 Overview

General Fixed Inductor, 1 ELEMENT, 0.0033 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT

IFCB-0402ER3N3 Parametric

Parameter NameAttribute value
MakerVishay
package instruction0402
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes0402
DC Resistance0.4 Ω
Nominal inductance(L)0.0033 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberIFCB-0402
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum rated current0.38 A
self resonant frequency6000 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristics0.3 NH IS THE TOLERANCE
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency500 MHz

Preview

Download Datasheet

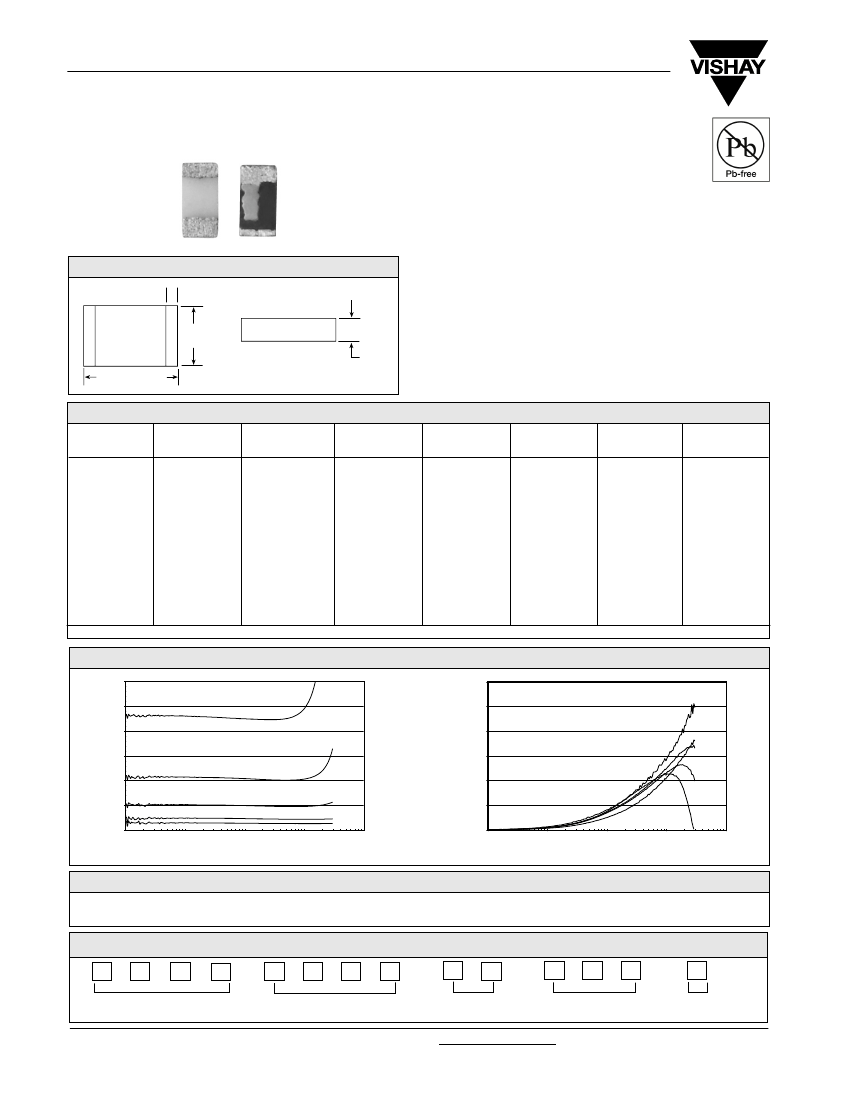

IFCB-0402
Vishay Dale
Thin Film Chip Inductor
FEATURES
• Tight tolerance.
• Self-resonant frequency controlled within 10 %.
• Stable inductance over high frequencies.
• Compatible with reflow or flow soldering.
• 100 % lead (Pb)-free and RoHS compliant
DIMENSIONS
in inches [millimeters]
0.008
±
0.004
[0.2
±
0.10]
0.020
±
0.002
[0.5
±
0.05]
0.039
±
0.002
[1.0
±
0.05]
0.013
±
0.002
[0.32
±
0.05]
• Temperature range: - 40°C to + 125°C (no load)
- 40°C to + 85°C (full rated current).
APPLICATIONS
• Cellular telephone, pagers and GPS products.
• Wireless LAN and other communication appliances.
• VCO, TCXO circuit and RF transceiver module.
STANDARD ELECTRICAL SPECIFICATIONS
Q
L
100 MHz
500 MHz
L
(Typ.)
(nH)
TOL.
7
1.0
0.3nH
7
1.2
0.3nH
7
1.5
0.3nH
7
1.8
0.3nH
7
2.2
0.3nH
7
2.7
0.3nH
7
3.3
0.3nH
7
3.9
0.3nH
7
4.7
0.3nH
7
5.6
0.3nH
7
6.8
0.3nH
7
8.2
0.3nH
7
10
2%, 5%
5
12
2%, 5%
5
15
2%, 5%
5
18
2%, 5%
5
22
2%, 5%
Test Equipment: HP4287 and Agilent 16196B
Q
800 MHz
(Typ.)
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
Q
1700 MHz
(Typ.)
33
33
33
33
33
33
28
28
28
28
28
28
26
26
26
21
19
SRF
MHz
(Typ.)
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
5500
4500
3700
3300
3100
2800
DCR
Ohms
(Max.)
0.1
0.1
0.2
0.2
0.3
0.3
0.4
0.5
0.6
0.7
0.9
1.1
1.3
1.6
1.8
2.0
2.6
RATED
DC CURRENT
(mA)
700
700
700
560
440
440
380
340
320
280
260
220
200
180
130
100
90
PERFORMANCE GRAPHS: INDUCTANCE AND Q VS FREQUENCY
30
22nH
60
50
40
1nH
25
INDUCTANCE (nH)
20
Q
2.2nH
4.7nH
15
10nH
30
20
10
4.7nH
10nH
5
0
1
10
100
FREQUENCY (MHz)
1000
2.2nH
1.2nH
10
22nH
0
10000
1
10
100
1000
FREQUENCY (MHz)
10000
DESCRIPTION
IFCB-0402
MODEL
10nH
INDUCTANCE VALUE
±
5%
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JDEC LEAD FREE STANDARD
GLOBAL PART NUMBER
I
F
C
B
0
4
0
2
E
R
1
0
N
J
TOL.
PRODUCT FAMILY
SIZE
See the end of this data book for conversion tables
PACKAGE
CODE
INDUCTANCE
VALUE
www.vishay.com
44
For technical questions, contact Magnetics@vishay.com
Document Number 34174
Revision 24-Jan-05

IFCB-0402ER3N3 Related Products

IFCB-0402ER3N3 IFCB-0402ER1N2 IFCB-0402ER8N2 IFCB-0402ER6N8 IFCB-0402ER5N6 IFCB-0402ER4N7 IFCB-0402ER3N9 PTN2010H2943BSTF IFCB-0402ER1N5 IFCB-0402ER1N0
Description General Fixed Inductor, 1 ELEMENT, 0.0033 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.0012 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.0082 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.0068 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.0056 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.0047 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.0039 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT Fixed Resistor, Thin Film, 0.8W, 294000ohm, 200V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 2010, CHIP General Fixed Inductor, 1 ELEMENT, 0.0015 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT General Fixed Inductor, 1 ELEMENT, 0.001 uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402, ROHS COMPLIANT
package instruction 0402 0402 0402 0402 0402 0402 0402 CHIP 0402 0402
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown compliant unknown unknown
Number of terminals 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 155 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -55 °C -40 °C -40 °C
surface mount YES YES YES YES YES YES YES YES YES YES
Terminal shape WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND
Maker Vishay Vishay Vishay Vishay Vishay Vishay Vishay - Vishay Vishay
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 - EAR99 EAR99
uppercase and lowercase codes 0402 0402 0402 0402 0402 0402 0402 - 0402 0402
DC Resistance 0.4 Ω 0.1 Ω 1.1 Ω 0.9 Ω 0.7 Ω 0.6 Ω 0.5 Ω - 0.2 Ω 0.1 Ω
Nominal inductance(L) 0.0033 µH 0.0012 µH 0.0082 µH 0.0068 µH 0.0056 µH 0.0047 µH 0.0039 µH - 0.0015 µH 0.001 µH
Inductor Applications RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR - RF INDUCTOR RF INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR - GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
Manufacturer's serial number IFCB-0402 IFCB-0402 IFCB-0402 IFCB-0402 IFCB-0402 IFCB-0402 IFCB-0402 - IFCB-0402 IFCB-0402
Number of functions 1 1 1 1 1 1 1 - 1 1
Maximum rated current 0.38 A 0.7 A 0.22 A 0.26 A 0.28 A 0.32 A 0.34 A - 0.7 A 0.7 A
self resonant frequency 6000 MHz 6000 MHz 5500 MHz 6000 MHz 6000 MHz 6000 MHz 6000 MHz - 6000 MHz 6000 MHz
Shape/Size Description RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE - RECTANGULAR PACKAGE RECTANGULAR PACKAGE
shield NO NO NO NO NO NO NO - NO NO
special characteristics 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE - 0.3 NH IS THE TOLERANCE 0.3 NH IS THE TOLERANCE
Terminal location DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED - DUAL ENDED DUAL ENDED
Test frequency 500 MHz 500 MHz 500 MHz 500 MHz 500 MHz 500 MHz 500 MHz - 500 MHz 500 MHz
Is Samacsys - N N N N N N - N N
Base Number Matches - 1 1 1 1 1 1 - 1 1
